Filter - Band Pass Filter Center Freq: 1945MHz, Pass band (1850-2040 MHz)
$ 108.00 USD
BPF1945M200M LTCC Band Pass Filter.

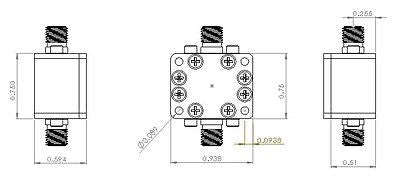

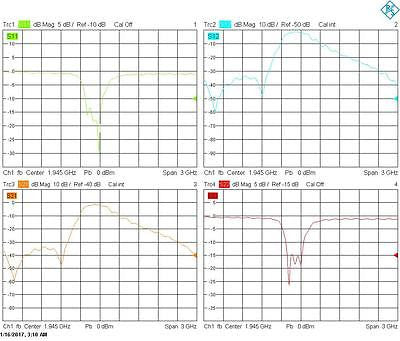

Enclosure is using RF Design Kit with dimension 0.9375"x0.75x0.59". S-Parameter of the Part measured on VNA is shown in second picture.
- Operational Temperature: -55 ~ 100C
- Temperature Stable
- Center Frequency: 1945 MHz
- RF Power Input: 1.5W max. at 25C, derate linearly to 0.25W at 100C
- 3dB Pass Band: 1850-2040 MHz
- Insertion Loss: (2.0dB typical)
- High Quality Stainless Steel SMA Female Connector
Applications
- Harmonic Rejection
- Transmitters / Receivers / SDR
- Test Instrumentation

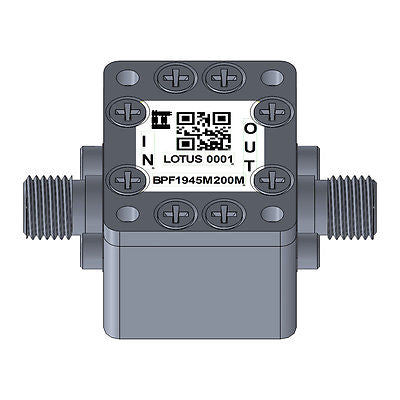

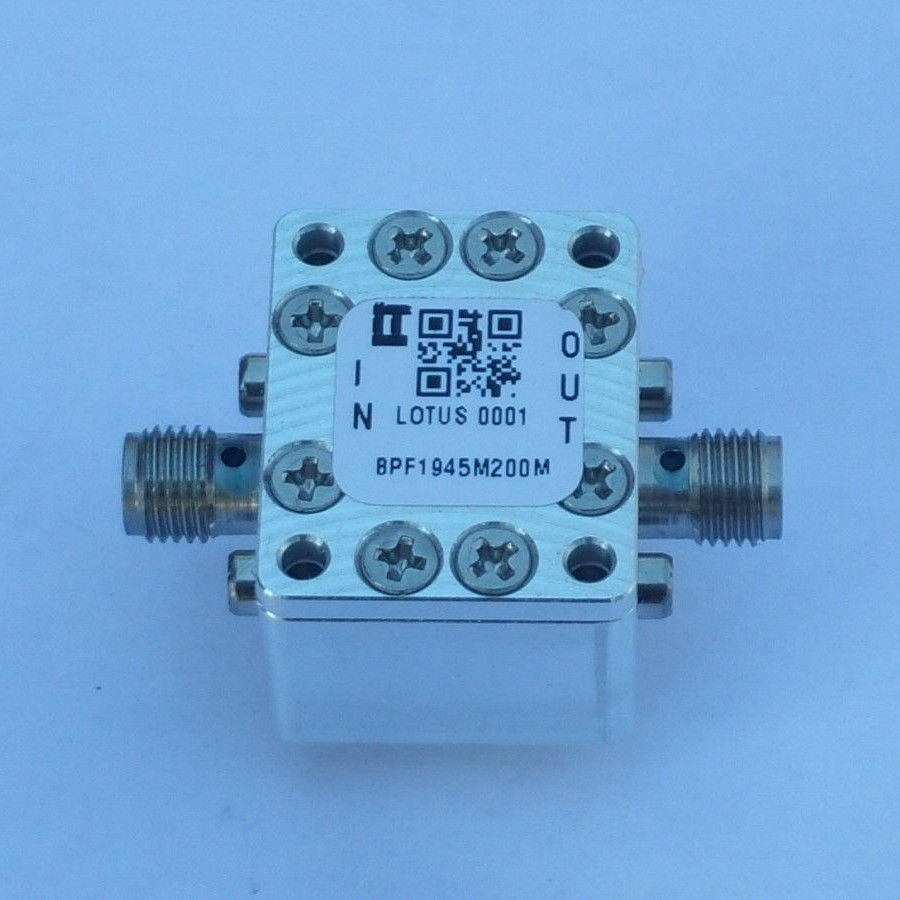

This BPF Module includes the RF Enclosure as shown in picture.
Proudly MADE IN USA.
