    Single Stage Gain Block Amplifier:

    Part Num. Data Sheet Start Freq. Stop Freq. Gain NF dB Gain Flatness P1 dBm IP3 dBm DC (V) DC (mA) ECCN Price Order
    GBA20M1G PDF 20M 1G 15 3.3 N/A 19 45.5 5 97 EAR99 $118.00 Order
    GBADC12G PDF DC 12G 16 4.3 N/A 15 28 5 60 EAR99 $208.00 Order
    GBA4G10G PDF 4G 10G 14.5 3.5 +/-0.5dB 13 25 5 50 EAR99 $218.00 Order
    GBA7G15G PDF 7G 15G 15 4 +/-2dB 15 28 5 45 EAR99 $218.00 Order
    GBA7G15GR PDF 7G 15G 15 4 +/-2dB 15 28 5.5~12 45 EAR99 $316.00 Order

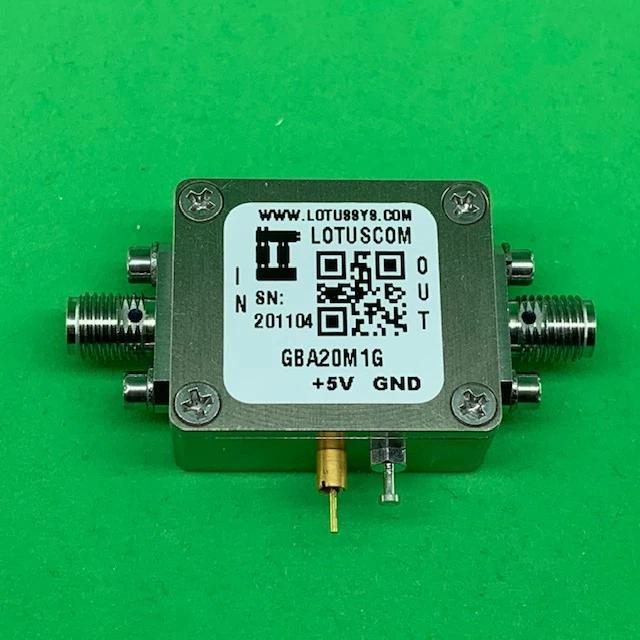

    Gain Block Amplifier 3.3dB NF 20MHz to 1GHz 15dB Gain 19dBm P1dB SMA
    Gain Block Amplifier 3.3dB NF 20MHz to 1GHz 15dB Gain 19dBm P1dB SMA $ 118.00 USD

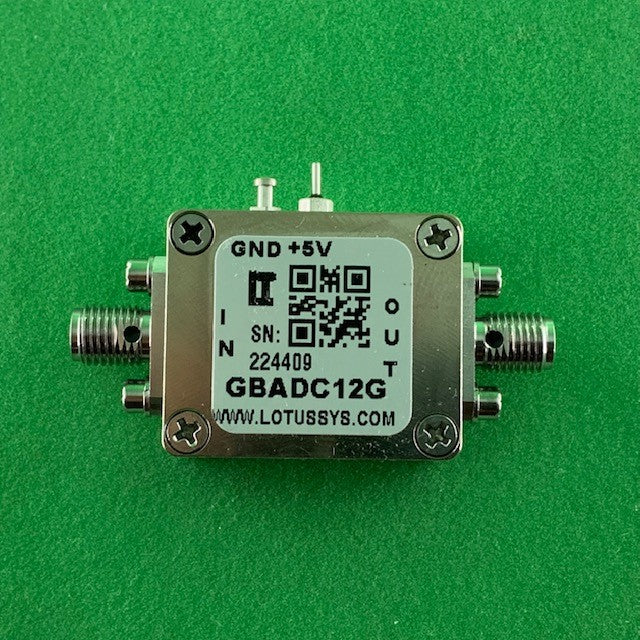

    Gain Block Amplifier 4.3dB NF DC to 12GHz 16dB Gain 15dBm P1dB SMA
    Gain Block Amplifier 4.3dB NF DC to 12GHz 16dB Gain 15dBm P1dB SMA $ 208.00 USD
    Gain Block Amplifier 3.5dB NF 4G to 10GHz 15dB Gain 13dBm P1dB SMA
    Gain Block Amplifier 3.5dB NF 4G to 10GHz 15dB Gain 13dBm P1dB SMA $ 218.00 USD

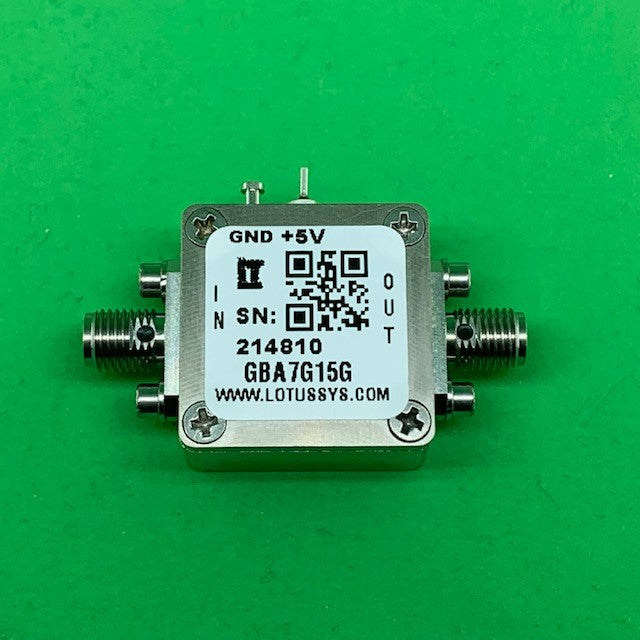

    Gain Block Amplifier 4dB NF 7G to 15GHz 15dB Gain 15dBm P1dB SMA
    Gain Block Amplifier 4dB NF 7G to 15GHz 15dB Gain 15dBm P1dB SMA $ 218.00 USD

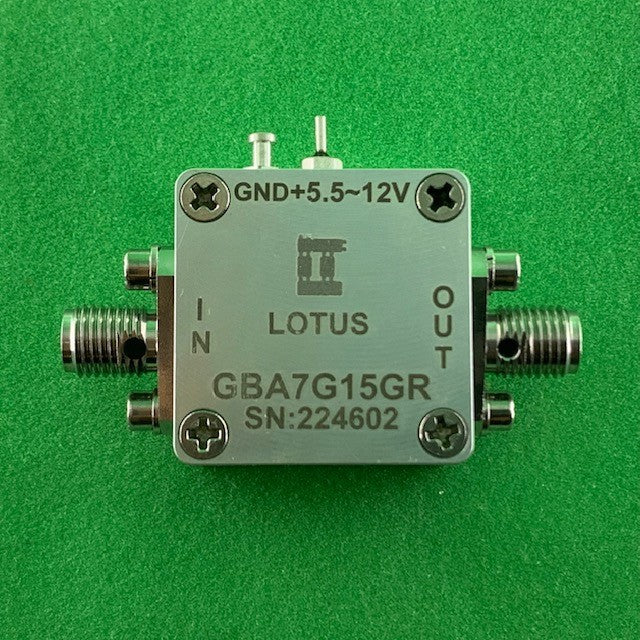

    Gain Block Amplifier 4dB NF 7G to 15GHz 15dB Gain 15dBm P1dB SMA +5.5~12V
    Gain Block Amplifier 4dB NF 7G to 15GHz 15dB Gain 15dBm P1dB SMA +5.5~12V from $ 316.00 USD
