    Phase Locked Oscillator

    Lotus offers low phase noise, low power Phase Locked Oscillator with External 10MHz/100MHz or Internal Reference.

    • High RF Power Level Output (PLO+Amplifier) -- Maximum +20 dBm output (last letter "H" in Part Number)
    • Regular RF Power Level Output -- from 5 dBm to 6 dBm
    • Internal/External Reference
    • Excellent Phase Noise -- Typical -90 dBc/Hz at 10 KHz offset
    • Low Power Consumption -- Typical < 0.6 Watts
    • USB Programmable Frequency and Power Output
    • Contact us for Customized Frequency, Power Levels or other options
    Part Number DS USB Ref Freq. Freq. Out (GHz) Ref. Lel. (dBm) Ph. Noise DC (V) DC (mA) Price Order
    PLO3G10MIHU PDF YES 10 3 Int. 17 -95 +5V 190mA $1,596 Order
    PLO6G10MIHU PDF YES 10 6 Int. 14 -90 +5V 190MA $1,636 Order
    PLO2G10MH PDF NO 10 2 Ext. 20 -100 +5V 170mA $1,486 Order
    PLO3G10MH PDF NO 10 3 Ext. 17 -95 +5V 190mA $1,596 Order
    PLO4G10M PDF NO 10 4 Ext. 6 -92 +5V 100mA $1,636 Order
    PLO4G10MI PDF NO 10 4 Ext. 6 -92 +5V 100mA $1,688 Order
    PLO4G10MH PDF NO 10 4 Ext. 17 -92 +5V 180mA $1,688 Order
    PLO4G10MIH PDF NO 10 4 Ext. 17 -92 +5V 180mA $1,746 Order
    PLO5G10M PDF NO 10 5 Ext. 5 -90 +5V 100mA $1,688 Order
    PLO5G10MI PDF NO 10 5 Int. 5 -90 +5V 100mA $1,746 Order
    PLO5G10MH PDF NO 10 5 Ext. 15 -90 +5V 180mA $1,908 Order
    PLO5G10MIH PDF NO 10 5 Int. 15 -90 +5V 180mA $1,966 Order
    PLO6G10M PDF NO 10 6 Ext. 5 -90 +5V 110mA $1,908 Order
    PLO6G10MI PDF NO 10 6 Int. 5 -90 +5V 110mA $1,966 Order
    PLO6G10MH PDF NO 10 6 Ext. 14 -90 +5V 190mA $2,018 Order
    PLO6G10MIH PDF NO 10 6 Int. 14 -90 +5V 190mA $2,076 Order
    PLO8G10MH PDF NO 10 8 Ext. 15 -78 +5V 360mA $2,558 Order
    PLO8G10MIH PDF NO 10 8 Int. 15 -78 +5V 360mA $2,626 Order
    PLO9G10MH PDF NO 10 9 Ext. 12 -80 +5V 360mA $2,558 Order
    PLO9G10MIH PDF NO 10 9 Int. 12 -80 +5V 360mA $2,626 Order
    PLO10G10MH PDF NO 10 10 Ext. 12 -72 +5V 360mA $2,558 Order
    PLO10G10MIH PDF NO 10 10 Int. 12 -72 +5V 360mA $2,626 Order
    PLO11G10MH PDF NO 10 11 Ext. 12 -70 +5V 360mA $2,558 Order
    PLO11G10MIH PDF NO 10 11 Int. 12 -70 +5V 360mA $2,626 Order
    PLO12G10MH PDF NO 10 12 Ext. 12 -80 +5V 360mA $2,558 Order

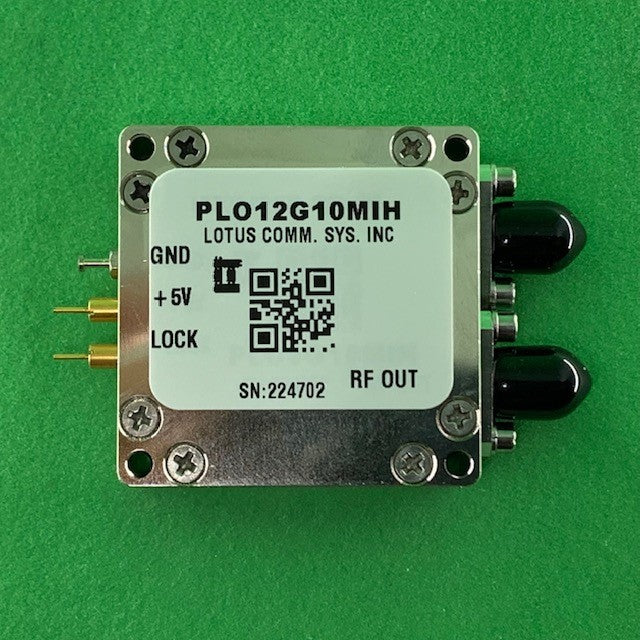

    PLO12G10MIH PDF NO 10 12 Int. 12 -80 +5V 360mA $2,626 Order
    PLO13G10MH PDF NO 10 13 Ext. 12 -77 +5V 360mA $2,558 Order
    PLO13G10MIH PDF NO 10 13 Int. 12 -77 +5V 360mA $2,626 Order
    PLO14G10MH PDF NO 10 14 Ext. 12 -75 +5V 360mA $2,558 Order
    PLO14G10MIH PDF NO 10 14 Int. 12 -75 +5V 360mA $2,626 Order
    PLO15G10MH PDF NO 10 15 Ext. 12 -70 +5V 360mA $2,558 Order
    PLO15G10MIH PDF NO 10 15 Int. 12 -70 +5V 360mA $2,626 Order



    2 GHz Phase Locked Oscillator 10 MHz External Ref. High RF Output
    2 GHz Phase Locked Oscillator 10 MHz External Ref. High RF Output $ 1,486.00 USD
    USB 1.5~3 GHz Phase Locked Oscillator 10 MHz Internal Ref. High RF Output
    USB 1.5~3 GHz Phase Locked Oscillator 10 MHz Internal Ref. High RF Output $ 1,596.00 USD
    3 GHz Phase Locked Oscillator 10 MHz External Ref. High RF Output
    3 GHz Phase Locked Oscillator 10 MHz External Ref. High RF Output $ 1,596.00 USD
    4 GHz Phase Locked Oscillator 10 MHz External Ref. Phase Noise -92 dBc/Hz, SMA
    4 GHz Phase Locked Oscillator 10 MHz External Ref. Phase Noise -92 dBc/Hz, SMA $ 1,636.00 USD
    5 GHz Phase Locked Oscillator 10 MHz External Ref. Phase Noise -90 dBc/Hz, SMA
    5 GHz Phase Locked Oscillator 10 MHz External Ref. Phase Noise -90 dBc/Hz, SMA $ 1,688.00 USD
    4 GHz Phase Locked Oscillator 10 MHz Internal Ref. Phase Noise -92 dBc/Hz, SMA
    4 GHz Phase Locked Oscillator 10 MHz Internal Ref. Phase Noise -92 dBc/Hz, SMA $ 1,688.00 USD
    4 GHz Phase Locked Oscillator 10 MHz Internal Ref. High RF Output
    4 GHz Phase Locked Oscillator 10 MHz Internal Ref. High RF Output $ 1,746.00 USD
    5 GHz Phase Locked Oscillator 10 MHz Internal Ref. Phase Noise -90 dBc/Hz, SMA
    5 GHz Phase Locked Oscillator 10 MHz Internal Ref. Phase Noise -90 dBc/Hz, SMA $ 1,746.00 USD
    6 GHz Phase Locked Oscillator 10 MHz External Ref. Phase Noise -90 dBc/Hz, SMA
    6 GHz Phase Locked Oscillator 10 MHz External Ref. Phase Noise -90 dBc/Hz, SMA $ 1,908.00 USD
    5 GHz Phase Locked Oscillator 10 MHz External Ref. High RF Output
    5 GHz Phase Locked Oscillator 10 MHz External Ref. High RF Output $ 1,908.00 USD
    5 GHz Phase Locked Oscillator 10 MHz Internal Ref. High RF Output
    5 GHz Phase Locked Oscillator 10 MHz Internal Ref. High RF Output $ 1,966.00 USD
    6 GHz Phase Locked Oscillator 10 MHz Internal Ref. Phase Noise -90 dBc/Hz, SMA
    6 GHz Phase Locked Oscillator 10 MHz Internal Ref. Phase Noise -90 dBc/Hz, SMA $ 1,966.00 USD
    6 GHz Phase Locked Oscillator 10 MHz External Ref. High RF Output
    6 GHz Phase Locked Oscillator 10 MHz External Ref. High RF Output $ 2,018.00 USD
    6 GHz Phase Locked Oscillator 10 MHz Internal Ref. High RF Output
    6 GHz Phase Locked Oscillator 10 MHz Internal Ref. High RF Output $ 2,076.00 USD

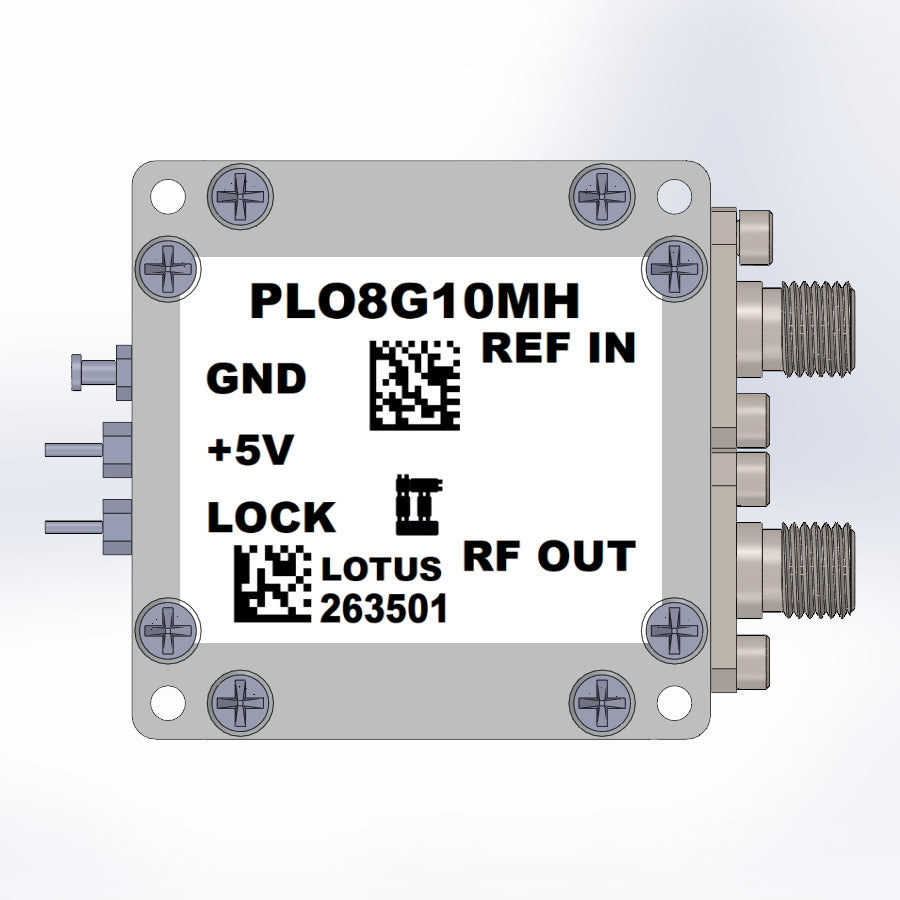

    8 GHz Phase Locked Oscillator 10 MHz External Ref. High RF Output
    8 GHz Phase Locked Oscillator 10 MHz External Ref. High RF Output $ 2,558.00 USD
    9 GHz Phase Locked Oscillator 10 MHz External Ref. High RF Output
    9 GHz Phase Locked Oscillator 10 MHz External Ref. High RF Output $ 2,558.00 USD
    10 GHz Phase Locked Oscillator 10 MHz External Ref. High RF Output
    10 GHz Phase Locked Oscillator 10 MHz External Ref. High RF Output $ 2,558.00 USD
    11 GHz Phase Locked Oscillator 10 MHz External Ref. High RF Output
    11 GHz Phase Locked Oscillator 10 MHz External Ref. High RF Output $ 2,558.00 USD
    12 GHz Phase Locked Oscillator 10 MHz External Ref. High RF Output
    12 GHz Phase Locked Oscillator 10 MHz External Ref. High RF Output $ 2,558.00 USD
    13 GHz Phase Locked Oscillator 10 MHz External Ref. High RF Output
    13 GHz Phase Locked Oscillator 10 MHz External Ref. High RF Output $ 2,558.00 USD
    14 GHz Phase Locked Oscillator 10 MHz External Ref. High RF Output
    14 GHz Phase Locked Oscillator 10 MHz External Ref. High RF Output $ 2,558.00 USD
    15 GHz Phase Locked Oscillator 10 MHz External Ref. High RF Output
    15 GHz Phase Locked Oscillator 10 MHz External Ref. High RF Output $ 2,558.00 USD
    8 GHz Phase Locked Oscillator 10 MHz Internal Ref. High RF Output
    8 GHz Phase Locked Oscillator 10 MHz Internal Ref. High RF Output $ 2,626.00 USD
    9 GHz Phase Locked Oscillator 10 MHz Internal Ref. High RF Output
    9 GHz Phase Locked Oscillator 10 MHz Internal Ref. High RF Output $ 2,626.00 USD
    10 GHz Phase Locked Oscillator 10 MHz Internal Ref. High RF Output
    10 GHz Phase Locked Oscillator 10 MHz Internal Ref. High RF Output $ 2,626.00 USD
    11 GHz Phase Locked Oscillator 10 MHz Internal Ref. High RF Output
    11 GHz Phase Locked Oscillator 10 MHz Internal Ref. High RF Output $ 2,626.00 USD
    12 GHz Phase Locked Oscillator 10 MHz Internal Ref. High RF Output
    12 GHz Phase Locked Oscillator 10 MHz Internal Ref. High RF Output $ 2,626.00 USD
    13 GHz Phase Locked Oscillator 10 MHz Internal Ref. High RF Output
    13 GHz Phase Locked Oscillator 10 MHz Internal Ref. High RF Output $ 2,626.00 USD
    14 GHz Phase Locked Oscillator 10 MHz Internal Ref. High RF Output
    14 GHz Phase Locked Oscillator 10 MHz Internal Ref. High RF Output $ 2,626.00 USD
    15 GHz Phase Locked Oscillator 10 MHz Internal Ref. High RF Output
    15 GHz Phase Locked Oscillator 10 MHz Internal Ref. High RF Output $ 2,626.00 USD
    USB 3~6 GHz Phase Locked Oscillator 10 MHz Internal Ref. High RF Output
    USB 3~6 GHz Phase Locked Oscillator 10 MHz Internal Ref. High RF Output $ 1,636.00 USD
