USB 3~6 GHz Phase Locked Oscillator 10 MHz Internal Ref. High RF Output
$ 1,636.00 USD

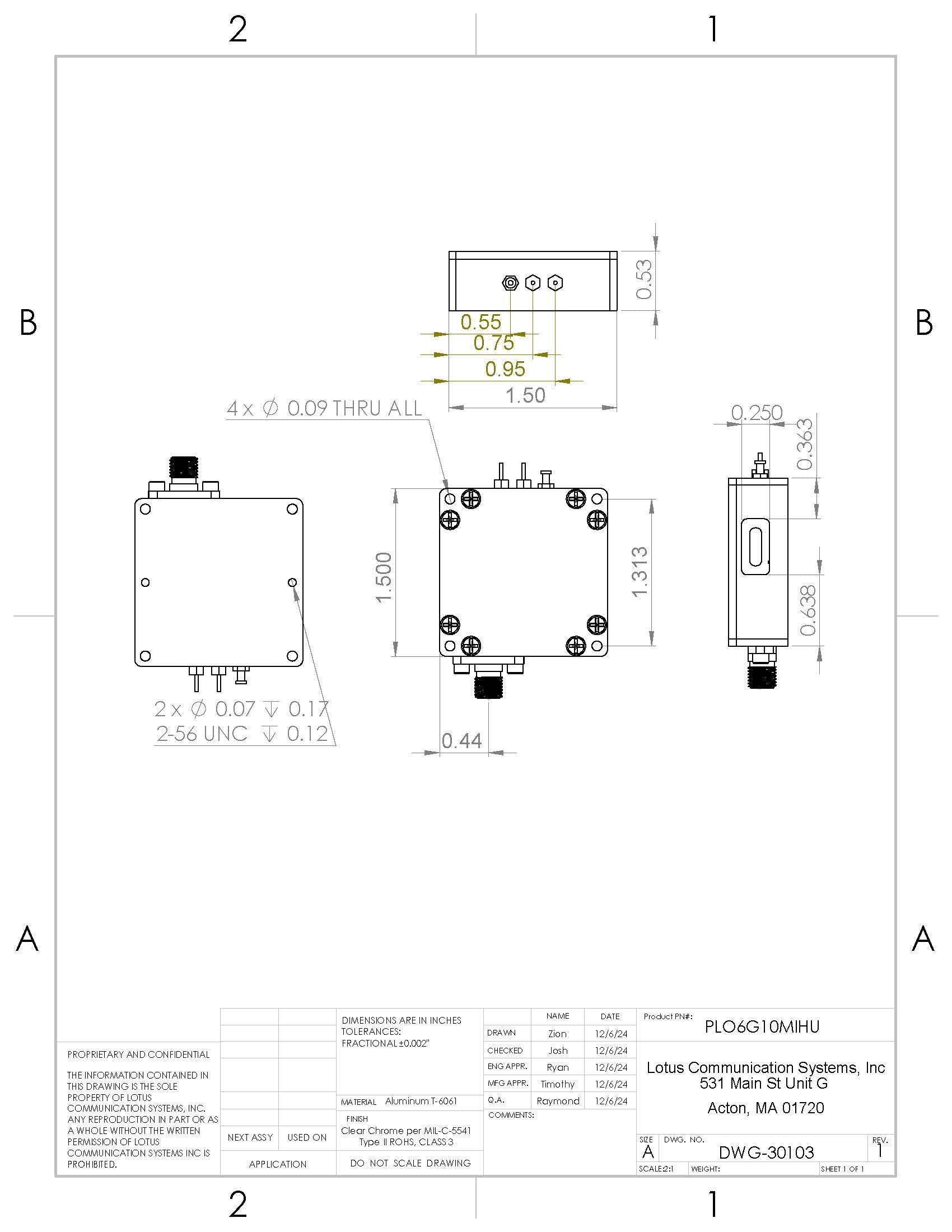

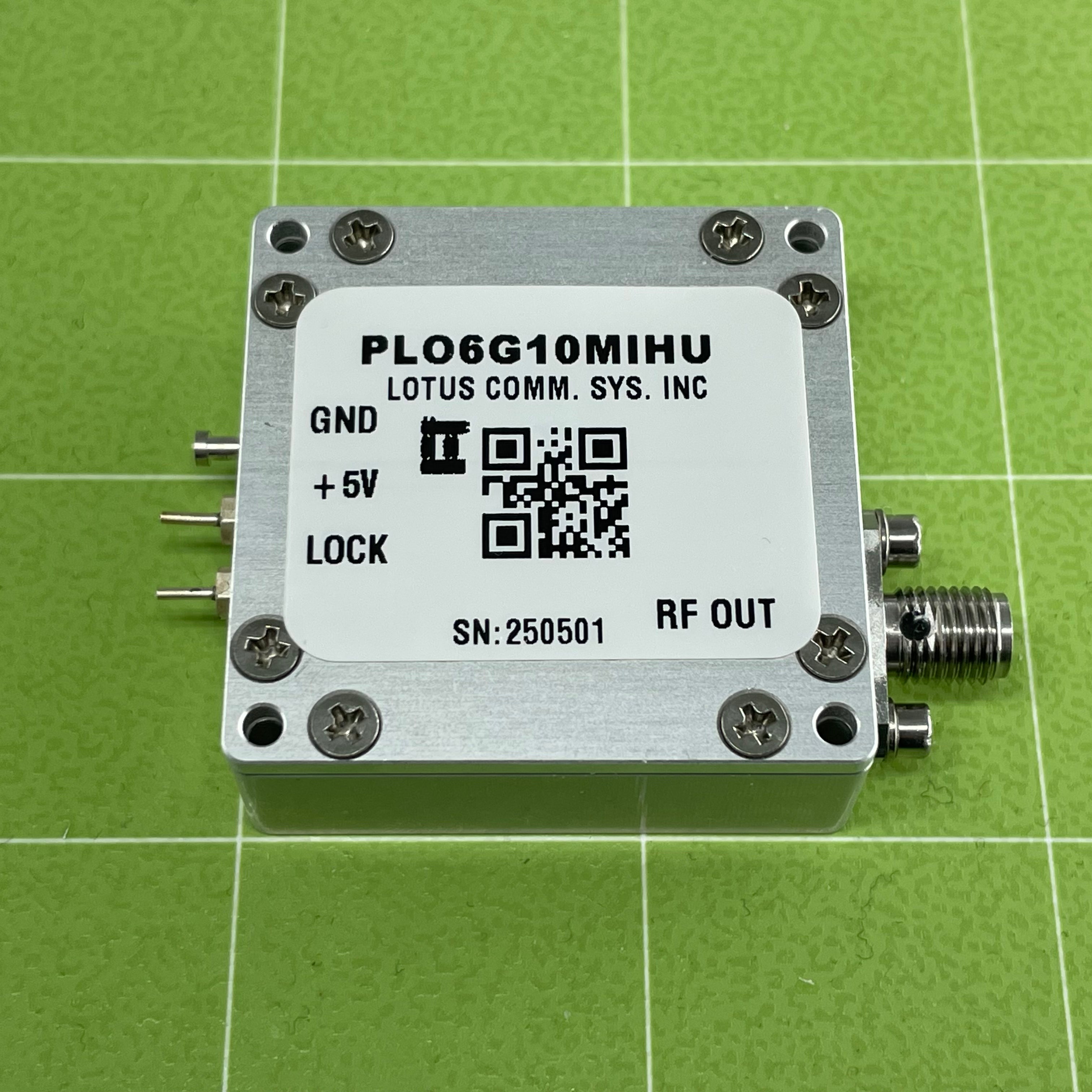

Part Number: PLO6G10MIHU is a 3~6GHz Phase Locked Oscillator with an internal 10 MHz reference oscillator (TCXO 0.28ppm). The PLO features excellent phase noise performance of -90 dBc/Hz @ 10kHz offset. Supply Voltage is +5V DC with low power consumption (<1 watt). This PLO is RoHS complaint with compact coaxial package (1.5”x1.5”x0.53”). It supports SMA connector and DC Bias Pins and 3.3V Lock Detect pin to indicate out-of-lock condition. The reference oscillator has a high output power level of +14 dBm and 2nd harmonic output of -20dBc typical. It only weights 1.5 Oz (42g).
The output frequency can be fine-tuned by USB-C virtual COM port using standard serial communication protocol.
SKU#: AK20-XXX.
Proudly Made in USA by Lotus Communication Systems, INC. in Acton, MA.
Features
- USB Programmable 3~6GHz PLO (Default 6GHz)
- Internal 10 MHz Reference Oscillator

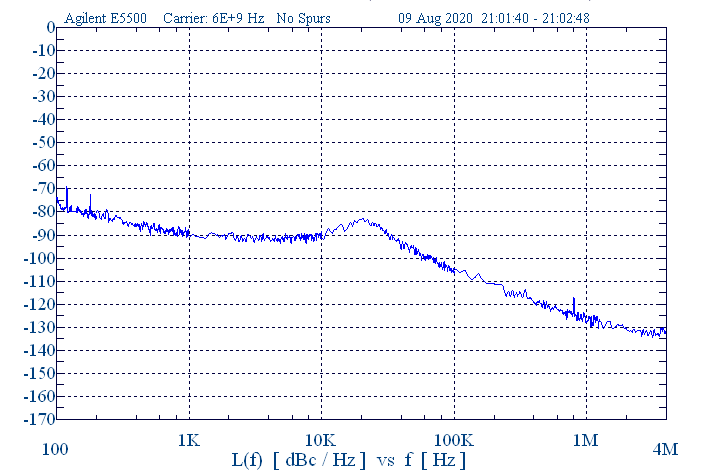

- -90 dBc/Hz @ 10kHz Offset
- High Pout +14 dBm (Lower Level can be customized)
- Harmonics -20 dBc
- DC Voltage supply: +5V with Current: 190mA
- Operating Temperature: -40oC to +85oC
- RF OUT are AC-Coupled Internally
Applications
- Test Instrumentation
- Phase Locked Loop
- Frequency Synthesizer
- Wireless & Optical Communication
Resources
PLO6G10MIHU Datasheet
