    Directional, Hybrid Couplers from 2 to 70W covering 600M to 8.5 GHz

    • Directional Coupler 3 Port standard
    • Hybrid 3dB Coupler 4 Port standard
    • Stainless SMA connector
    Type Part Num. Data Sheet F_Low MHz F_High MHz Coupling Mainline Loss Directivity VSWR Max IN PWR Price Order
    Directional C600M900M5D PDF 600 900 5 dB 0.2 dB 20 dB 1.15 70W $108.00 Order

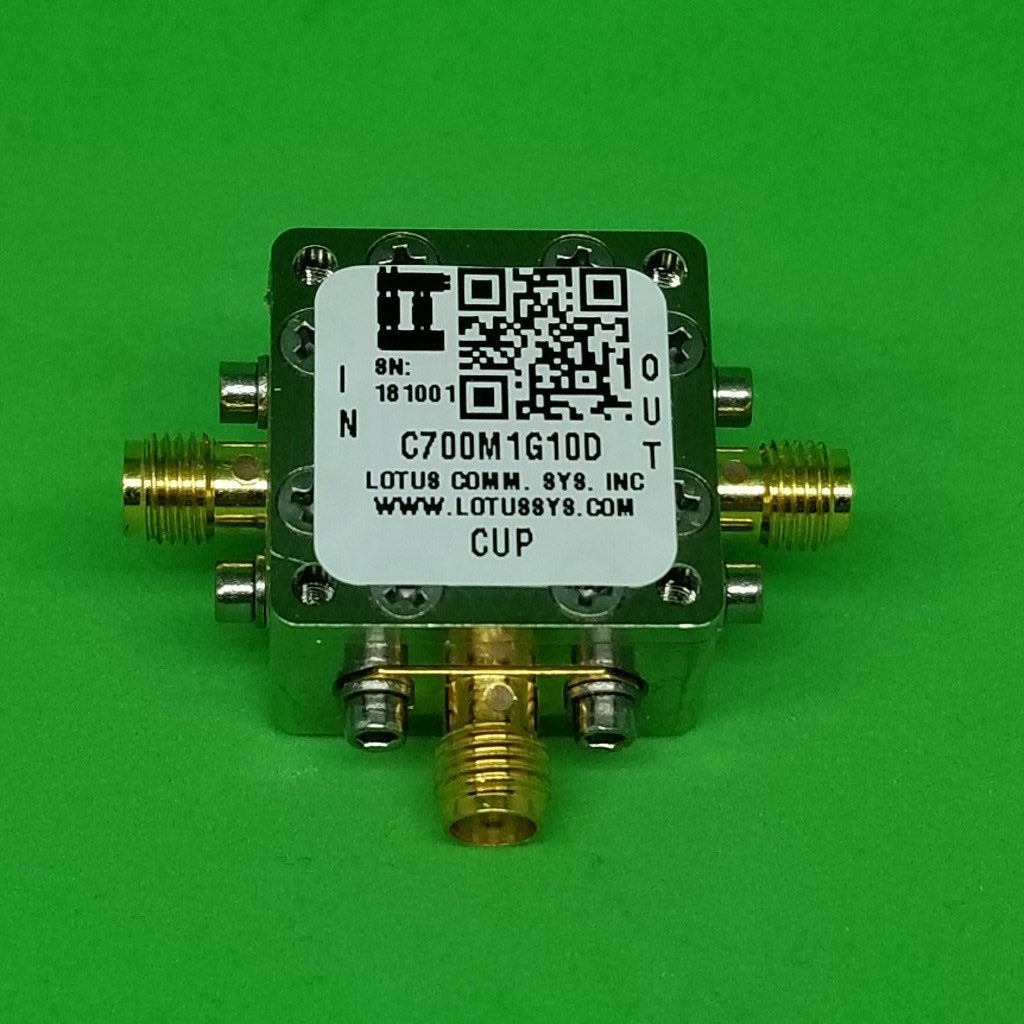

    Directional C700M1G10D PDF 700 1000 10 dB 0.6 dB 18 dB 1.3 2W $108.00 Order

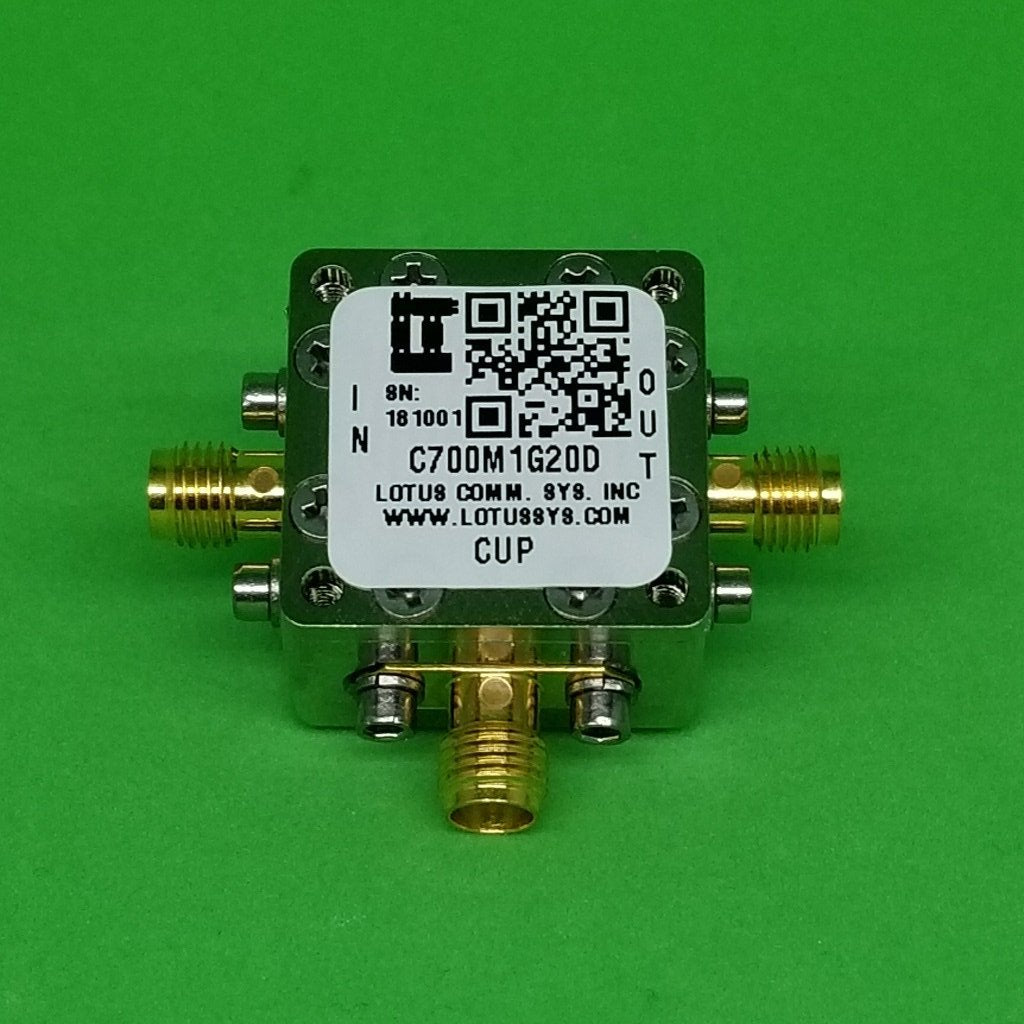

    Directional C700M1G20D PDF 700 1000 20 dB 0.6 dB 18 dB 1.3 2W $108.00 Order
    Directional C800M1G5D PDF 800 1000 20 dB 0.2 dB 22 dB 1.15 70W $108.00 Order

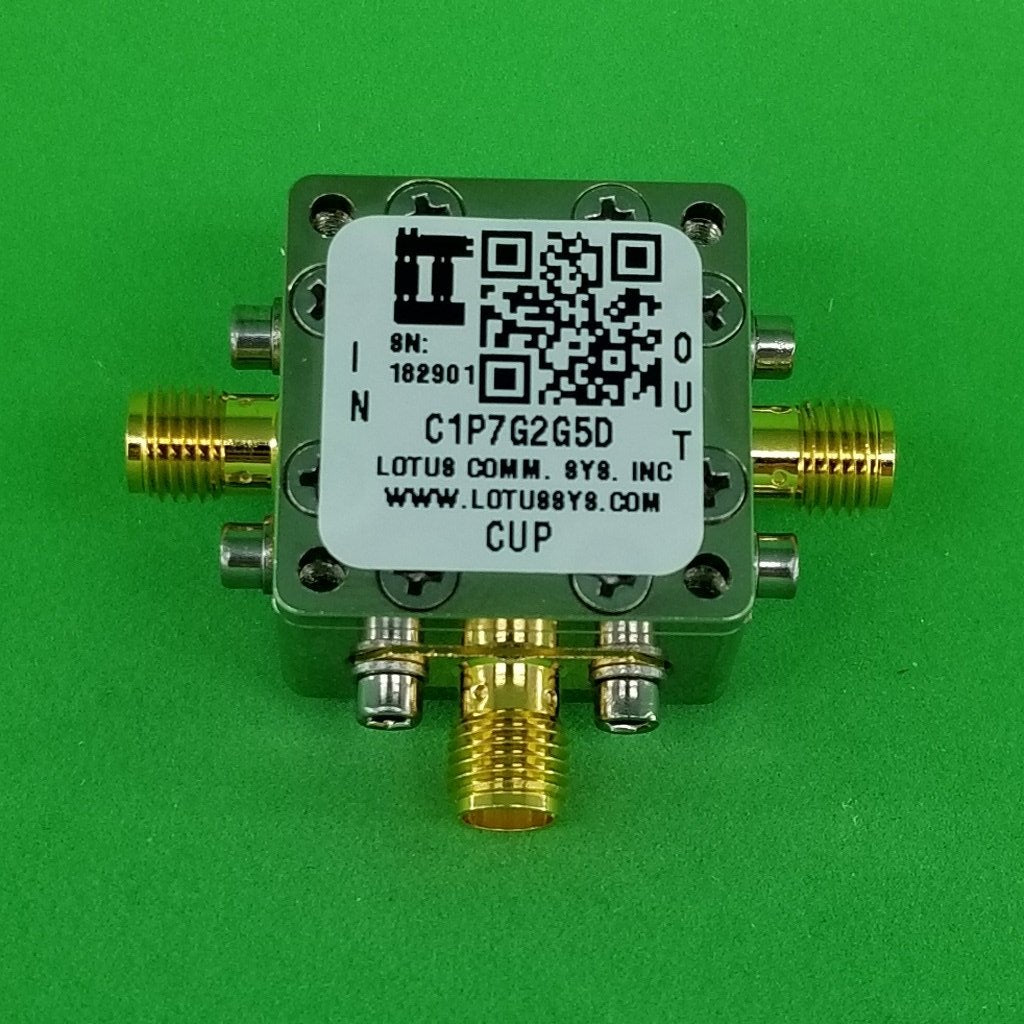

    Directional C1P7G2G5D PDF 1700 2000 5 dB 0.2 dB 22 dB 1.15 70W $108.00 Order
    Directional C1P7G2P2G10D PDF 1700 2200 10 dB 0.6 dB 16.6 dB 1.24 2W $108.00 Order
    Directional C1P7G2P2G15D PDF 1700 2200 15 dB 0.6 dB 22.6 dB 1.07 2W $108.00 Order
    Directional C1P7G2P2G20D PDF 1700 2200 20 dB 0.6 dB 21.4 dB 1.16 2W $108.00 Order

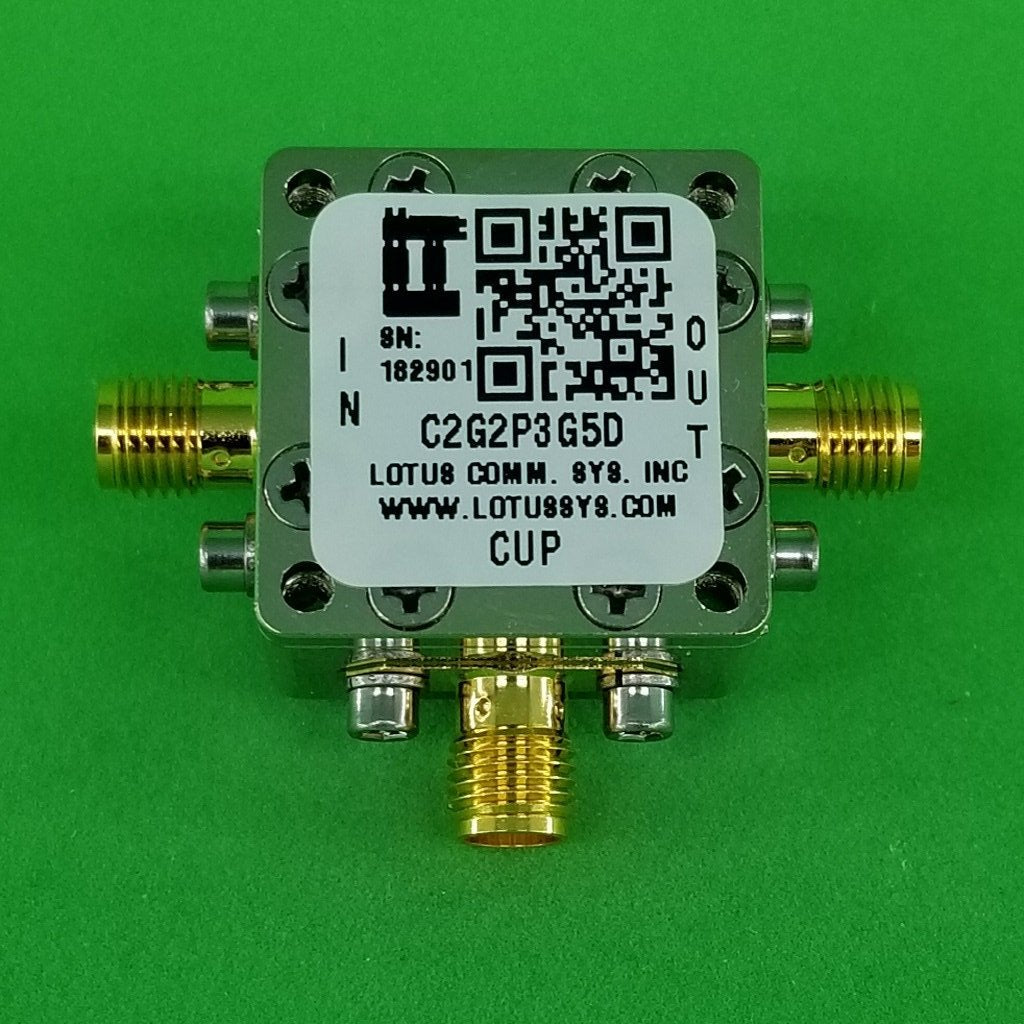

    Directional C2G2P3G5D PDF 2000 2300 5 dB 0.2 dB 22 dB 1.2 70W $108.00 Order
    Directional C2P3G2P7G5D PDF 2300 2700 5 dB 0.2 dB 22 dB 1.15 70W $108.00 Order
    Directional C2P3G3P7G10D PDF 2300 3700 10 dB 1.3 dB 21.1 dB 1.16 2W $108.00 Order

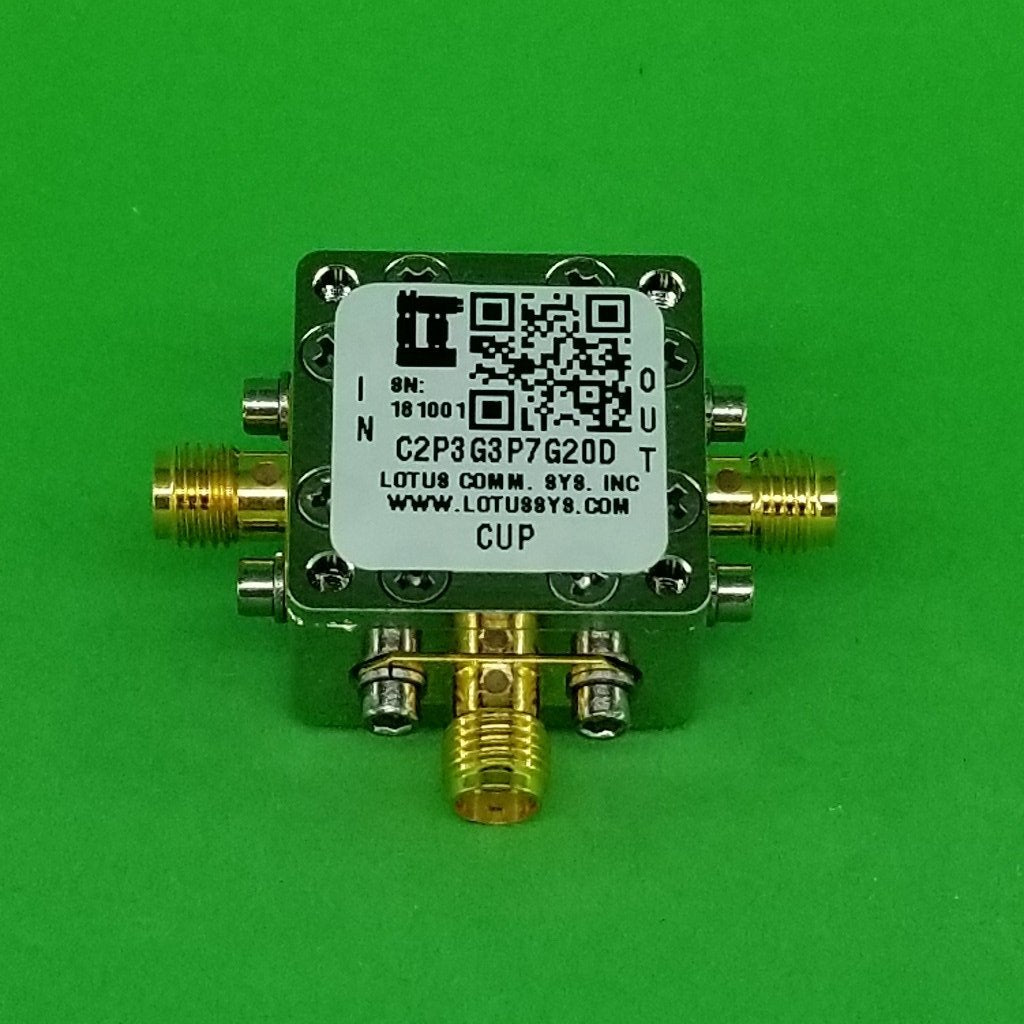

    Directional C2P3G3P7G20D PDF 2300 3700 20 dB 1.3 dB 17.2 dB 1.21 2W $108.00 Order
    Directional C3P3G3P8G5D PDF 3300 3800 5 dB 1.0 dB 21.4 dB 1.19 2W $108.00 Order

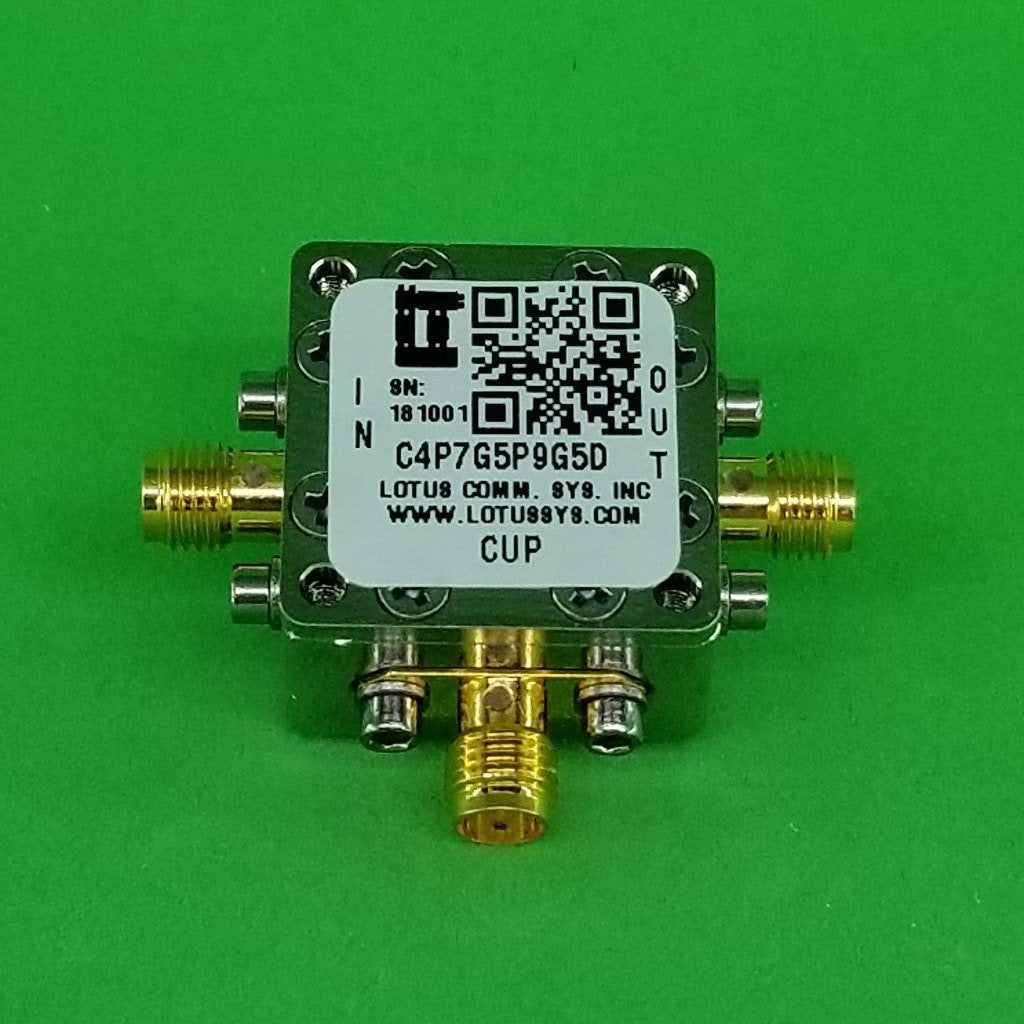

    Directional C4P7G5P9G5D PDF 4700 5900 5 dB 0.8 dB 19 dB 1.24 2W $108.00 Order

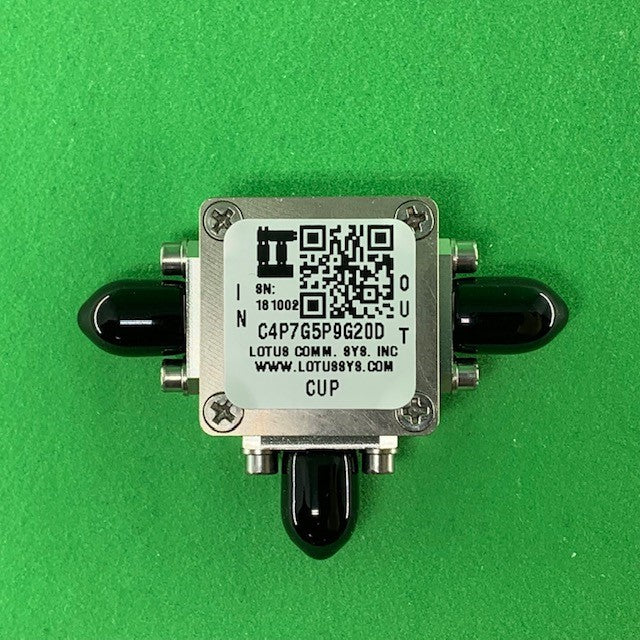

    Directional C4P7G5P9G20D PDF 4700 5900 20 dB 0.8 dB 18 dB 1.24 2W $108.00 Order
    Hybrid HCUP600M900M25W PDF 600 900 3 dB 0.2 dB N/A 1.15 25W $286.00 Order
    Hybrid HCUP800M1G25W PDF 800 1000 3 dB 0.3 dB N/A 1.15 25W $286.00 Order
    Hybrid HCUP5P5G8P5G15W PDF 5500 8500 3 dB 0.3 dB N/A 1.15 15W $286.00 Order
    Hybrid HCUP690M2P7G50W PDF 690 2700 3 dB 0.5 dB N/A 1.15 50W $286.00 Order
    Hybrid HCUP1G2G60W PDF 1000 2000 3 dB 0.5 dB N/A 1.15 60W $286.00 Order

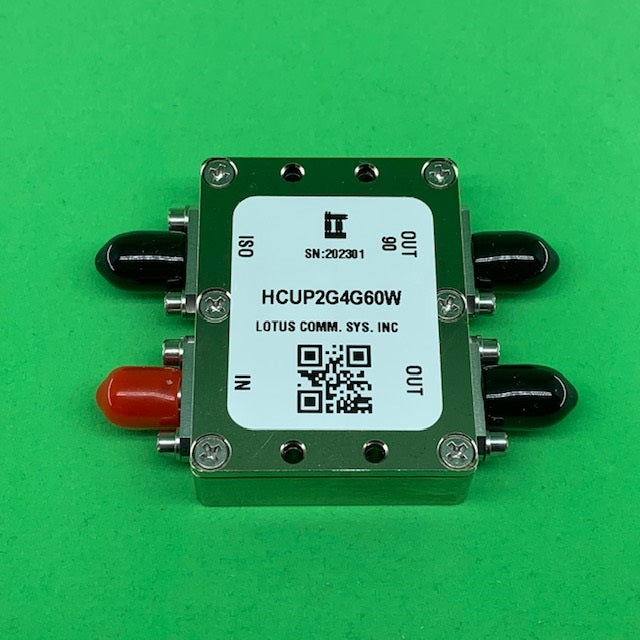

    Hybrid HCUP2G4G60W PDF 2000 4000 3 dB 0.5 dB N/A 1.15 60W $286.00 Order
    Type Part Num. Data Sheet F_Low MHz F_High MHz Coupling Mainline Loss Directivity VSWR Max IN PWR Price Order



    Hybrid 90 Degree 3dB Coupler 2G to 4 GHz 60W
    Hybrid 90 Degree 3dB Coupler 2G to 4 GHz 60W $ 286.00 USD

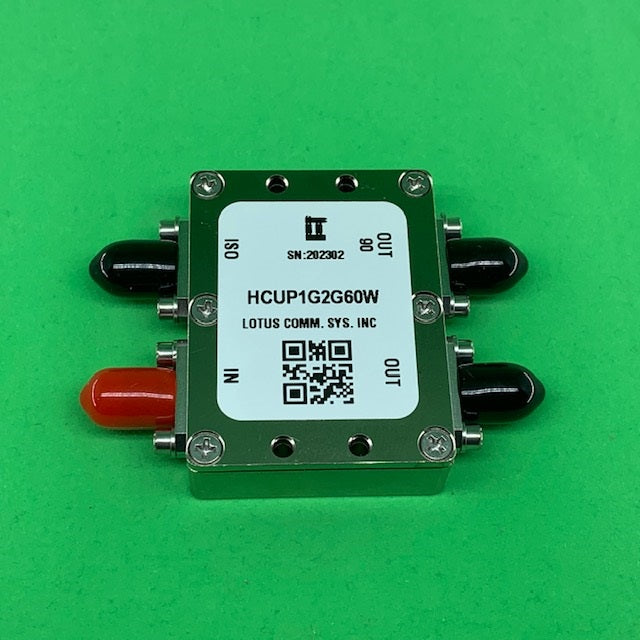

    Hybrid 90 Degree 3dB Coupler 1G to 2 GHz 60W
    Hybrid 90 Degree 3dB Coupler 1G to 2 GHz 60W $ 286.00 USD

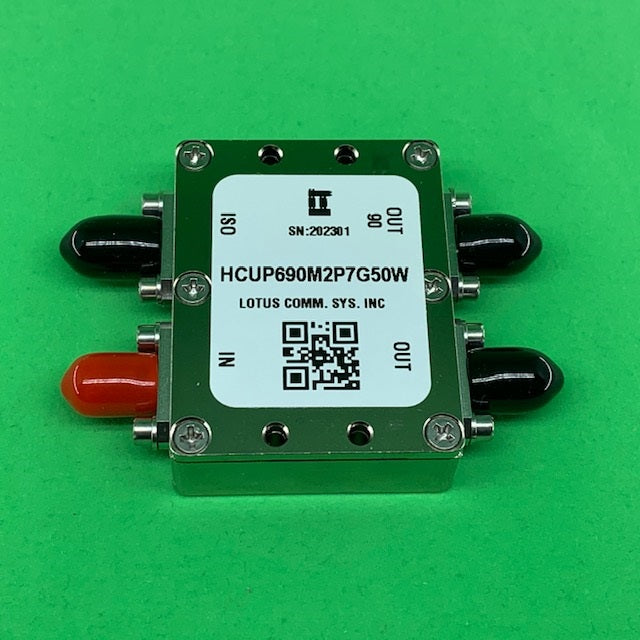

    Hybrid 90 Degree 3dB Coupler 690M to 2.7 GHz 50W
    Hybrid 90 Degree 3dB Coupler 690M to 2.7 GHz 50W $ 286.00 USD

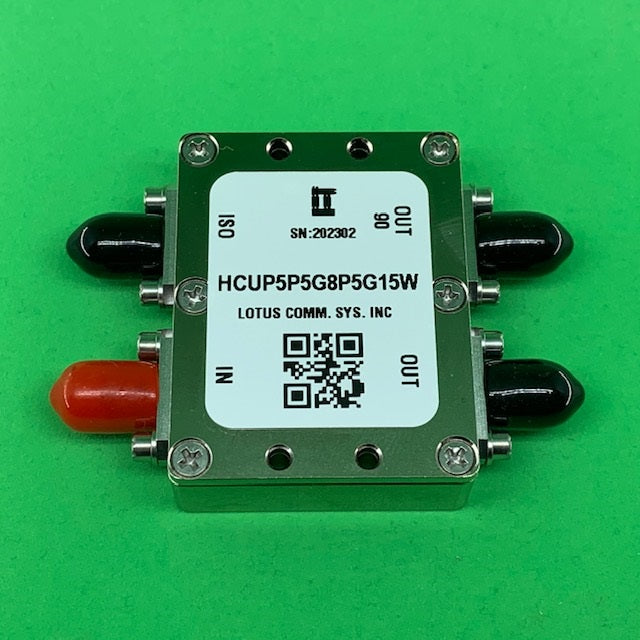

    Hybrid 90 Degree 3dB Coupler 5.5G to 8.5GHz 15W
    Hybrid 90 Degree 3dB Coupler 5.5G to 8.5GHz 15W $ 286.00 USD

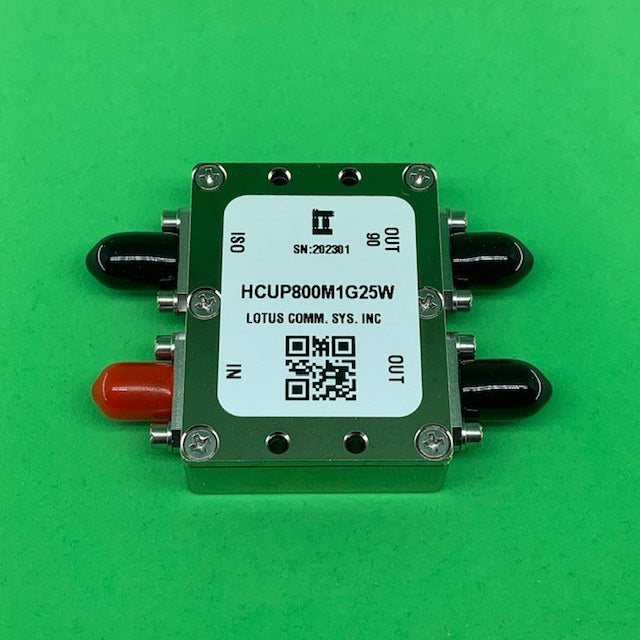

    Hybrid 90 Degree 3dB Coupler 800M to 1GHz 25W
    Hybrid 90 Degree 3dB Coupler 800M to 1GHz 25W $ 286.00 USD

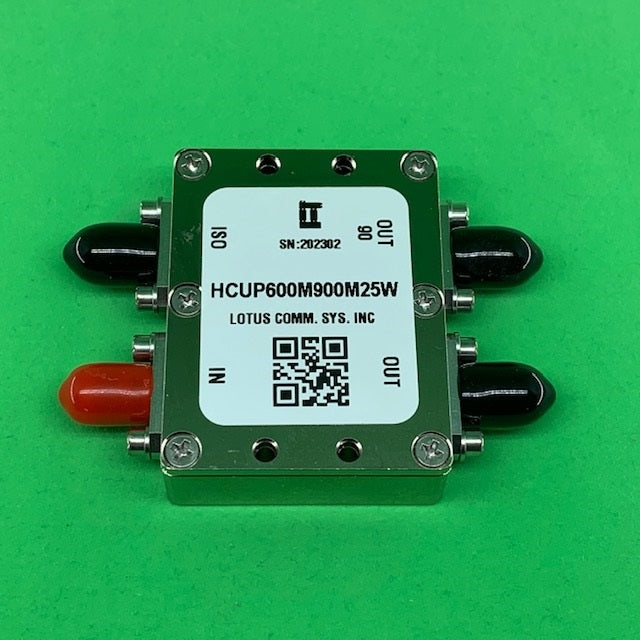

    Hybrid 90 Degree 3dB Coupler 600M to 900MHz 25W
    Hybrid 90 Degree 3dB Coupler 600M to 900MHz 25W $ 286.00 USD

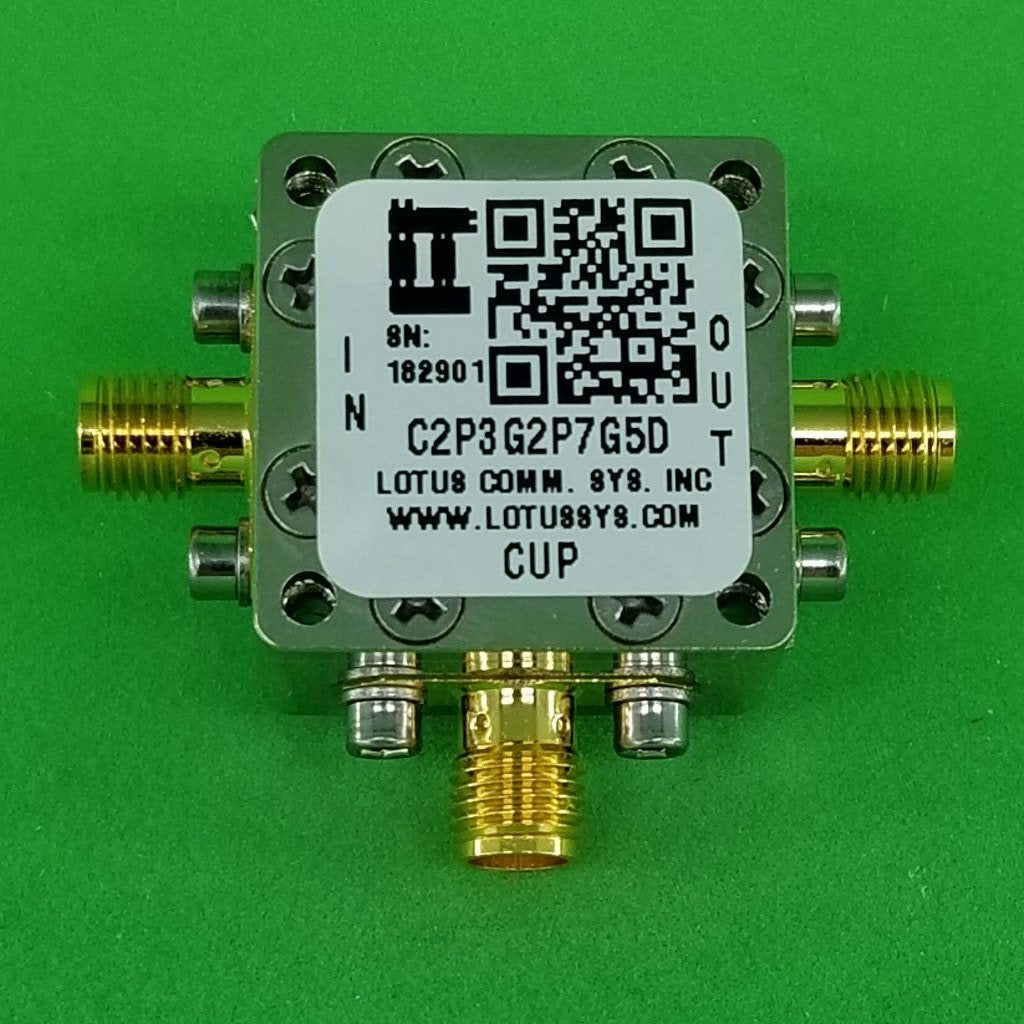

    Directional Coupler 2300 MHz to 2700 MHz 5dB 70W Low Insertion Loss
    Directional Coupler 2300 MHz to 2700 MHz 5dB 70W Low Insertion Loss $ 108.00 USD
    Directional Coupler 2000 MHz to 2300 MHz 5dB 70W Low Insertion Loss
    Directional Coupler 2000 MHz to 2300 MHz 5dB 70W Low Insertion Loss $ 108.00 USD
    Directional Coupler 1700 MHz to 2000 MHz 5dB 70W Low Insertion Loss
    Directional Coupler 1700 MHz to 2000 MHz 5dB 70W Low Insertion Loss $ 108.00 USD

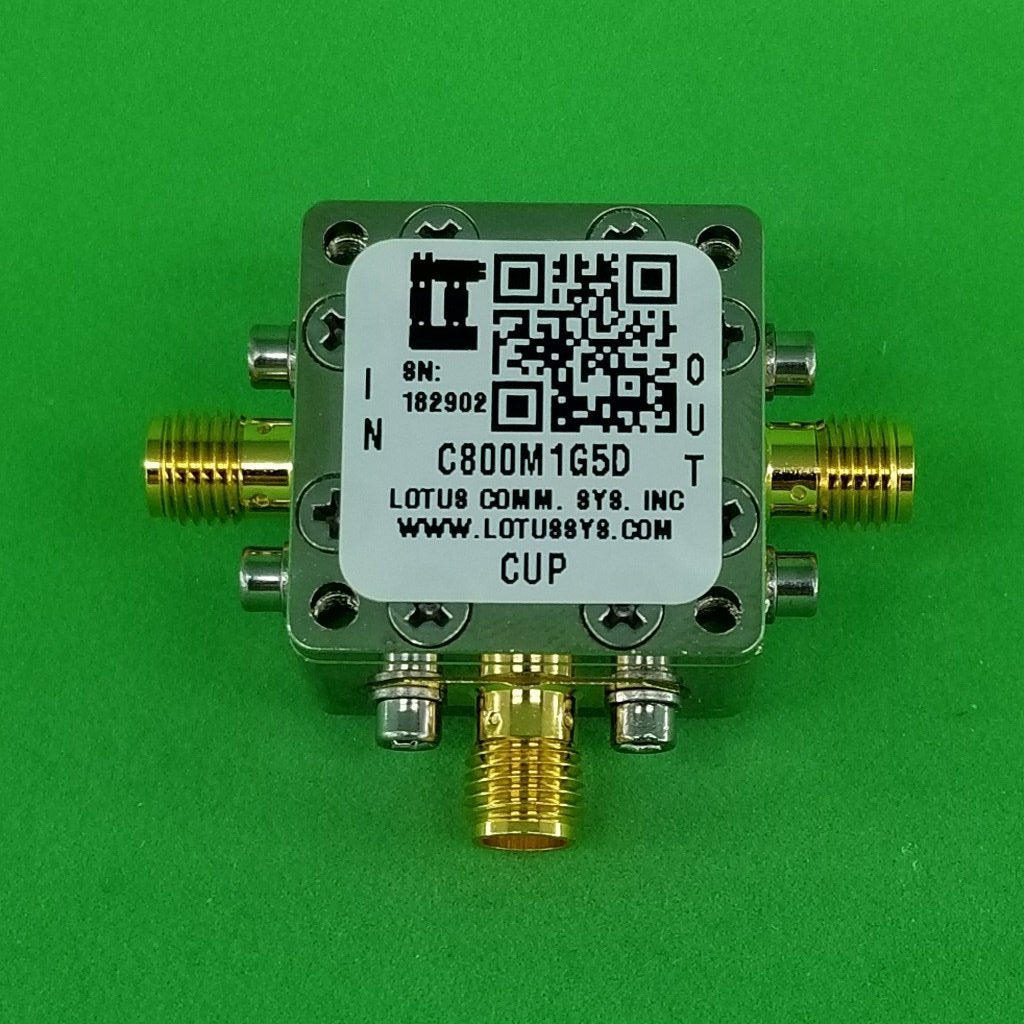

    Directional Coupler 800 MHz to 1000 MHz 5dB 70W Low Insertion Loss
    Directional Coupler 800 MHz to 1000 MHz 5dB 70W Low Insertion Loss $ 108.00 USD

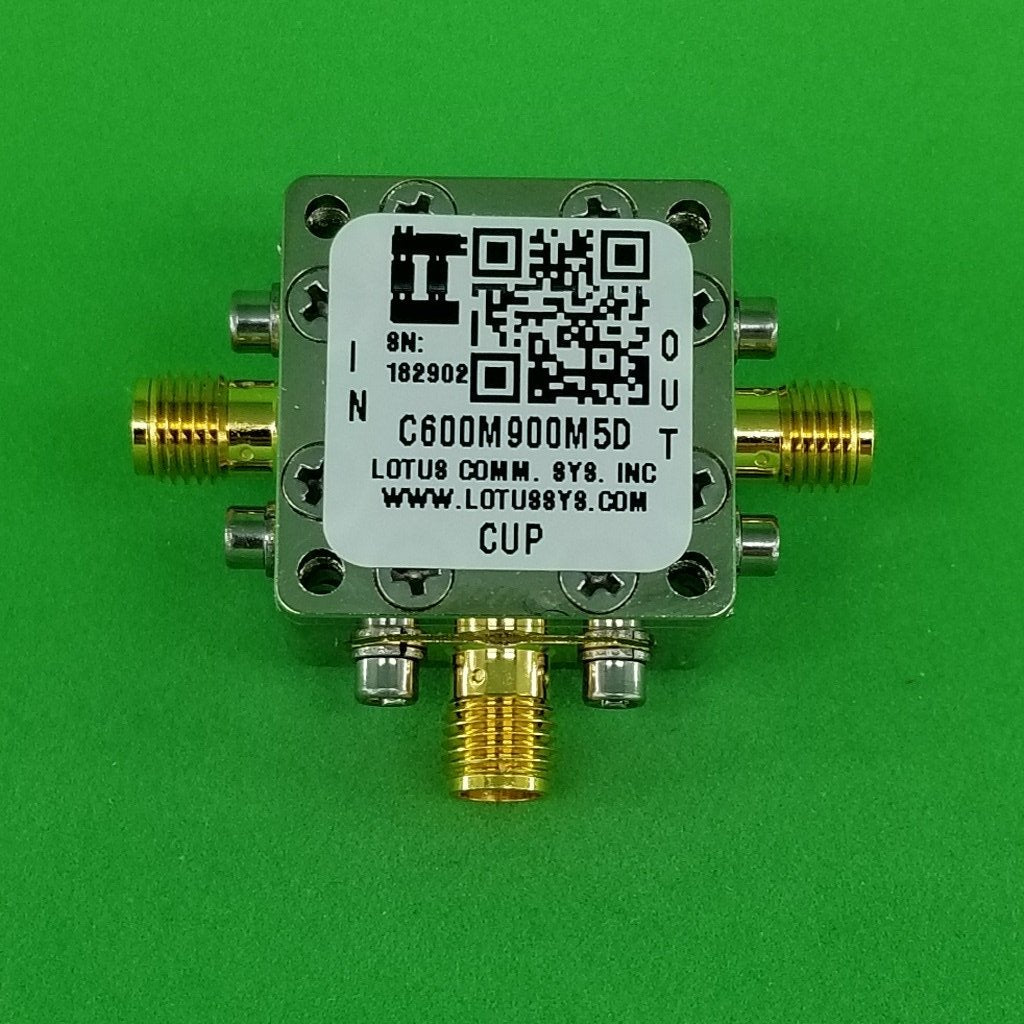

    Directional Coupler 600 MHz to 900 MHz 5dB 70W Low Insertion Loss
    Directional Coupler 600 MHz to 900 MHz 5dB 70W Low Insertion Loss $ 108.00 USD
    Directional Coupler 700 MHz to 1000 MHz 10dB 2W Low Insertion Loss
    Directional Coupler 700 MHz to 1000 MHz 10dB 2W Low Insertion Loss $ 108.00 USD
    Directional Coupler 700 MHz to 1000 MHz 20dB 2W Low Insertion Loss
    Directional Coupler 700 MHz to 1000 MHz 20dB 2W Low Insertion Loss $ 108.00 USD

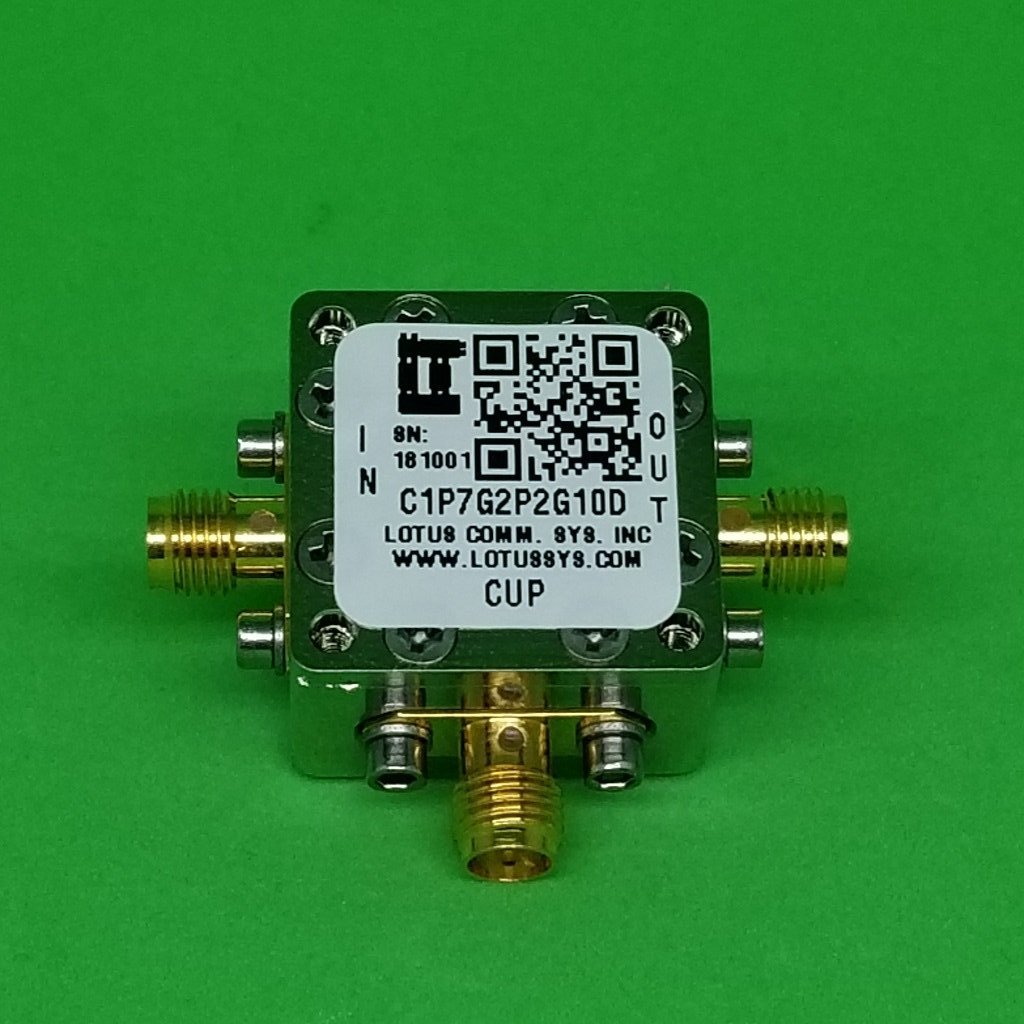

    Directional Coupler 1.7 GHz to 2.2 GHz 10dB 2W Low Insertion Loss
    Directional Coupler 1.7 GHz to 2.2 GHz 10dB 2W Low Insertion Loss $ 108.00 USD

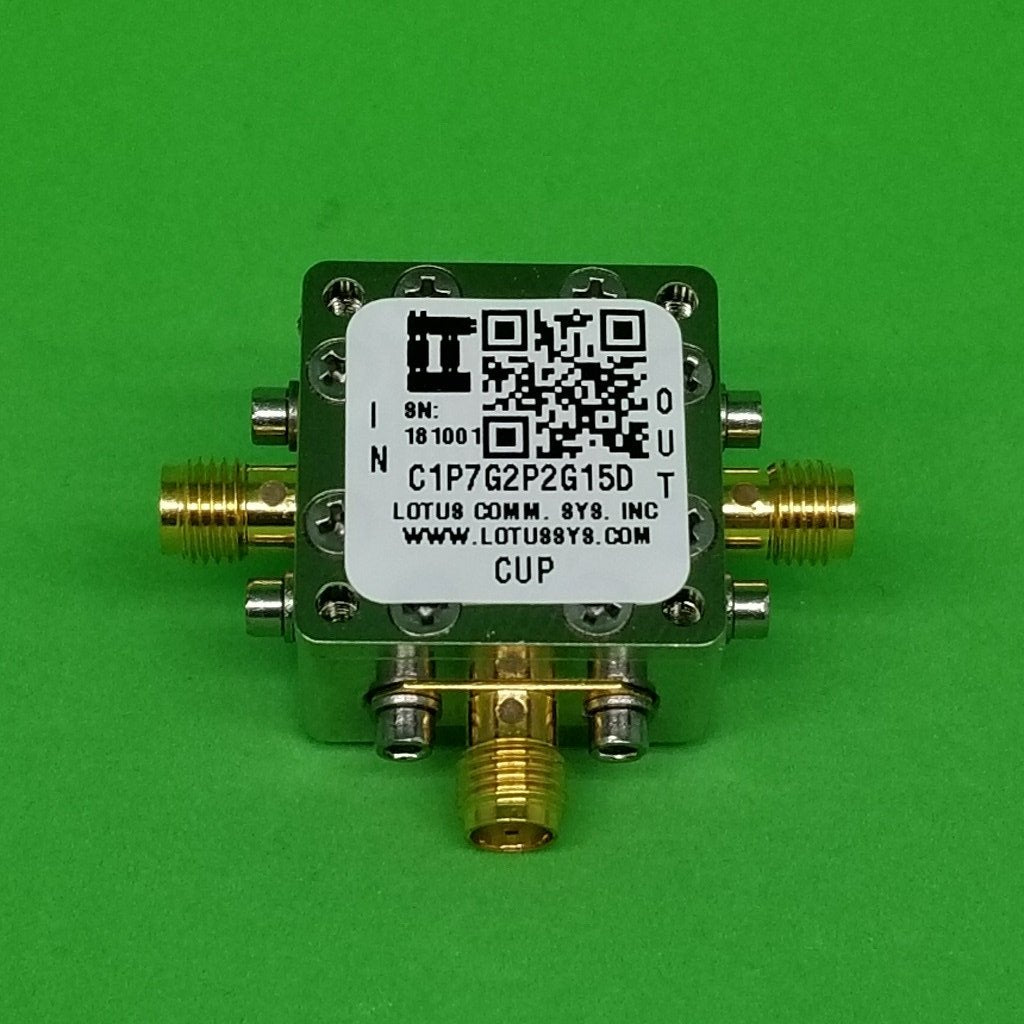

    Directional Coupler 1.7 GHz to 2.2 GHz 15dB 2W Low Insertion Loss
    Directional Coupler 1.7 GHz to 2.2 GHz 15dB 2W Low Insertion Loss $ 108.00 USD

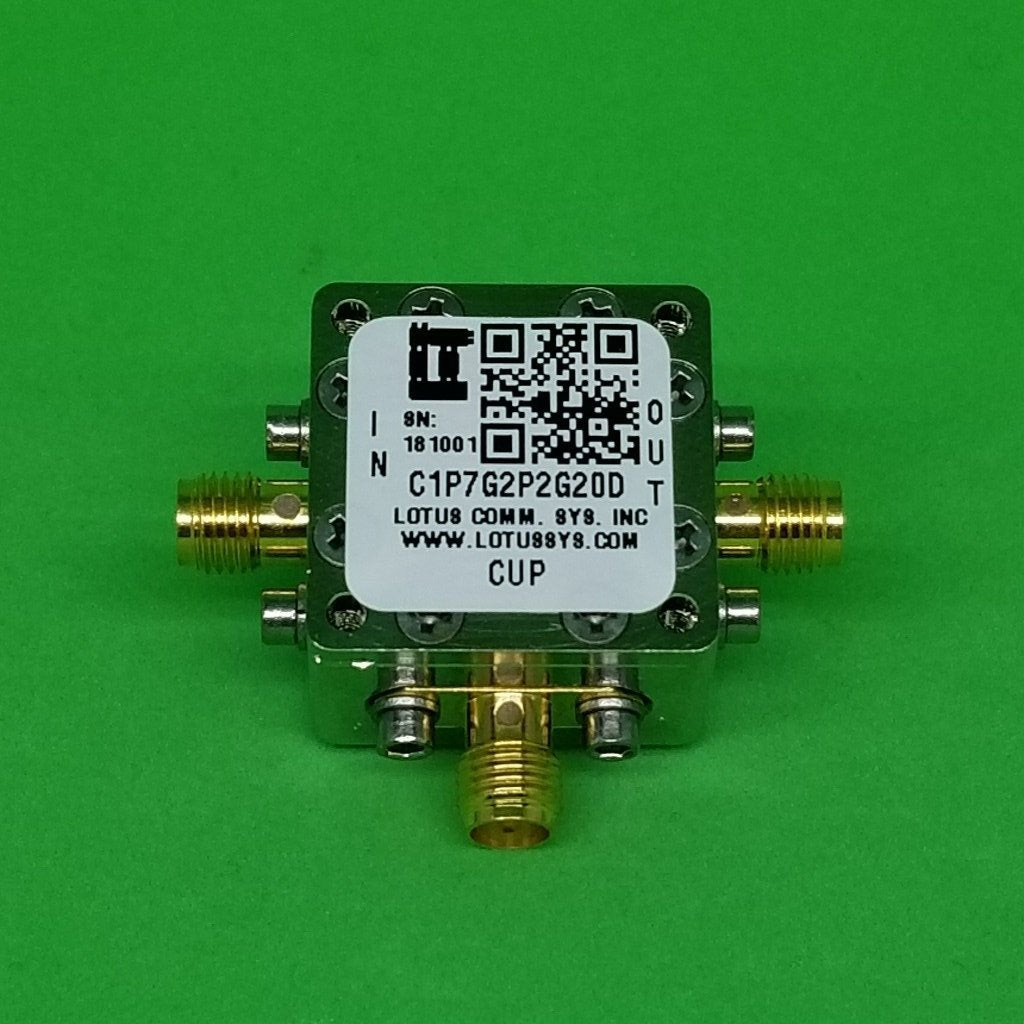

    Directional Coupler 1.7 GHz to 2.2 GHz 20dB 2W Low Insertion Loss
    Directional Coupler 1.7 GHz to 2.2 GHz 20dB 2W Low Insertion Loss $ 108.00 USD

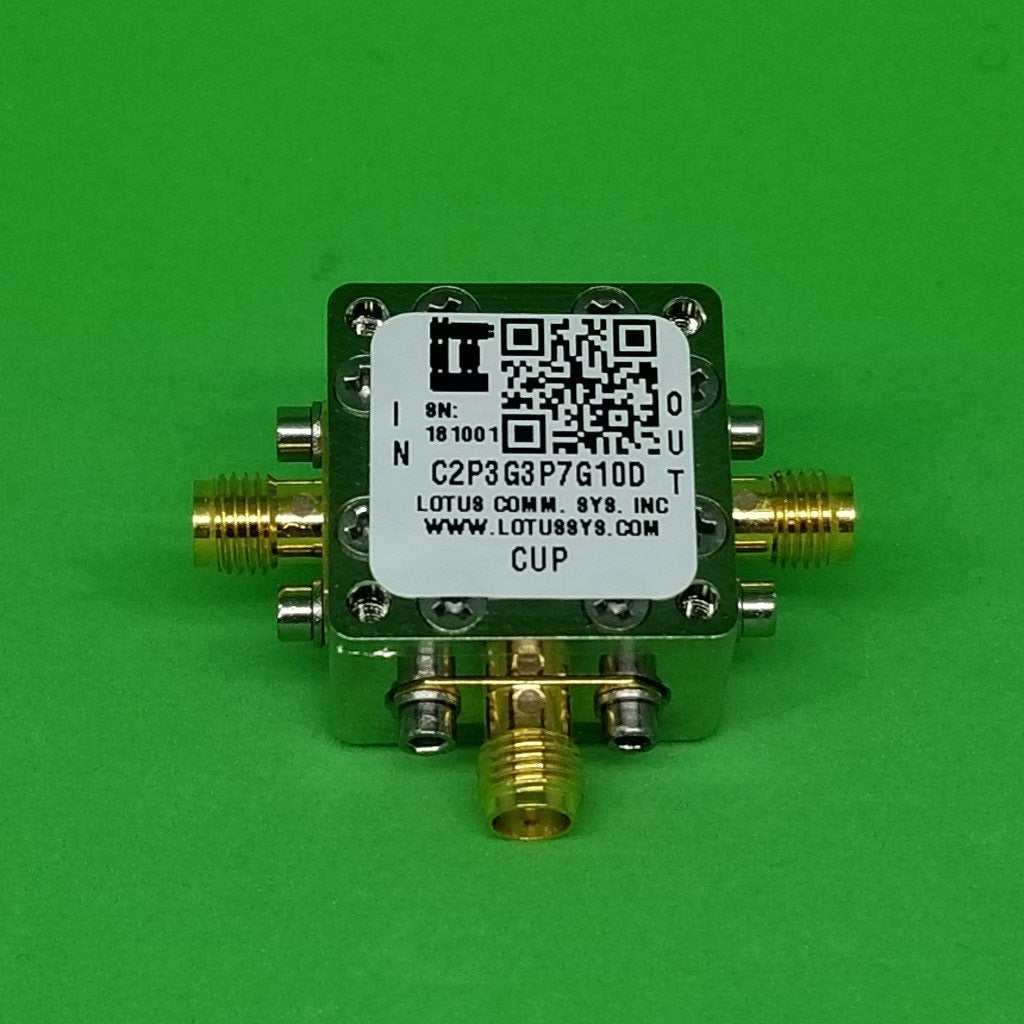

    Directional Coupler 2.3 GHz to 3.7 GHz 10dB 2W Low Insertion Loss
    Directional Coupler 2.3 GHz to 3.7 GHz 10dB 2W Low Insertion Loss $ 108.00 USD
    Directional Coupler 2.3 GHz to 3.7 GHz 20dB 2W Low Insertion Loss
    Directional Coupler 2.3 GHz to 3.7 GHz 20dB 2W Low Insertion Loss $ 108.00 USD

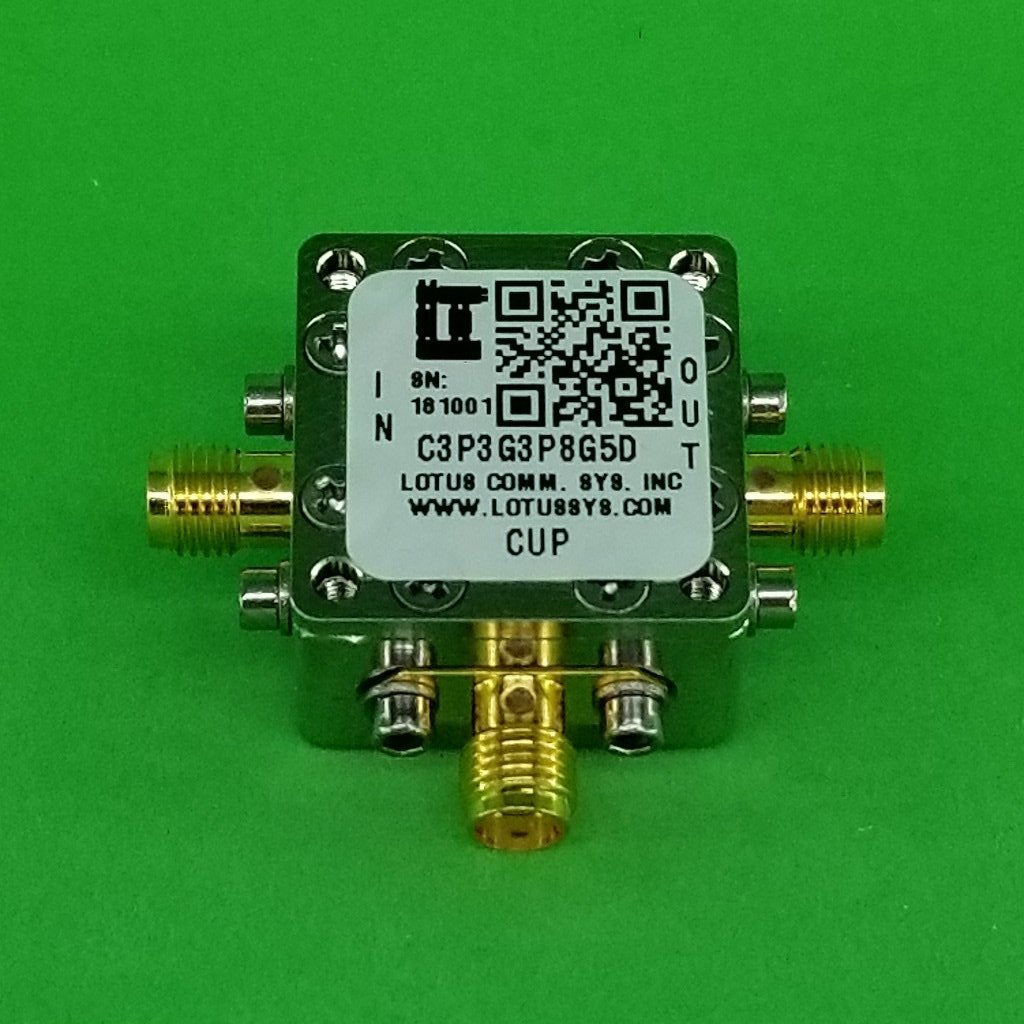

    Directional Coupler 3.3 GHz to 3.8 GHz 5dB 2W Low Insertion Loss
    Directional Coupler 3.3 GHz to 3.8 GHz 5dB 2W Low Insertion Loss $ 108.00 USD
    Directional Coupler 4.7 GHz to 5.9 GHz 20dB 2W Low Insertion Loss
    Directional Coupler 4.7 GHz to 5.9 GHz 20dB 2W Low Insertion Loss $ 108.00 USD
    Directional Coupler 4.7 GHz to 5.9 GHz 5dB 2W Low Insertion Loss
    Directional Coupler 4.7 GHz to 5.9 GHz 5dB 2W Low Insertion Loss $ 108.00 USD
