Outstanding Broadband Performance and Low SSB Phase Noise up to 26 GHz!
- Frequency Divider by 2/3/4/8
- Wide Voltage Option Available +4~15V
- EMI Shield & Waterproof Option Available
| Part Num. | Data Sheet | Divisor M | Min. Freq. | Max. Freq. | Pin Min. | Pin Max. | Pout | DC (V) | DC (mA) | ECCN | Price | Order |
| FD3DC7G | 3 | DC | 7G | -15dBm | 10dBm | -1dBm | 5 | 69 | EAR99 | $276.00 | Order | |
| FD5DC7G | 5 | DC | 7G | -15dBm | 10dBm | -1dBm | 5 | 80 | EAR99 | $276.00 | Order | |
| FD2DC8G | 2 | DC | 8G | -12dBm | 10dBm | -3dBm | 3 | 97 | EAR99 | $276.00 | Order | |

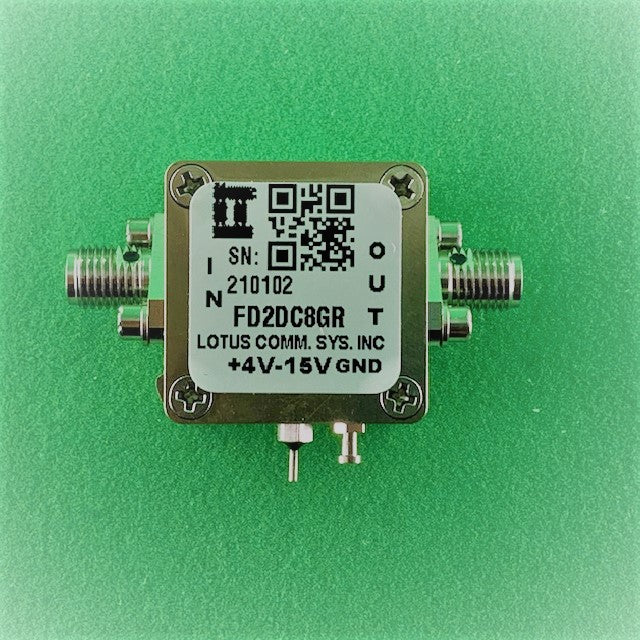

| FD2DC8GR | 2 | DC | 8G | -12dBm | 10dBm | -3dBm | 4~15 | 70 | EAR99 | $328.00 | Order | |
| FD4DC8G | 4 | DC | 8G | -12dBm | 12dBm | -2dBm | 3 | 53 | EAR99 | $276.00 | Order | |
| FD4DC8GR | 4 | DC | 8G | -12dBm | 12dBm | -2dBm | 4~15 | 53 | EAR99 | $328.00 | Order | |
| FD8DC8G | 8 | DC | 8G | -10dBm | 10dBm | -2dBm | 3 | 62 | EAR99 | $276.00 | Order | |
| FD8DC8GR | 8 | DC | 8G | -10dBm | 10dBm | -2dBm | 4~15 | 62 | EAR99 | $328.00 | Order | |
| FD2DC10G | 2 | DC | 10G | -15dBm | 10dBm | 3dBm | 5 | 83 | EAR99 | $276.00 | Order | |

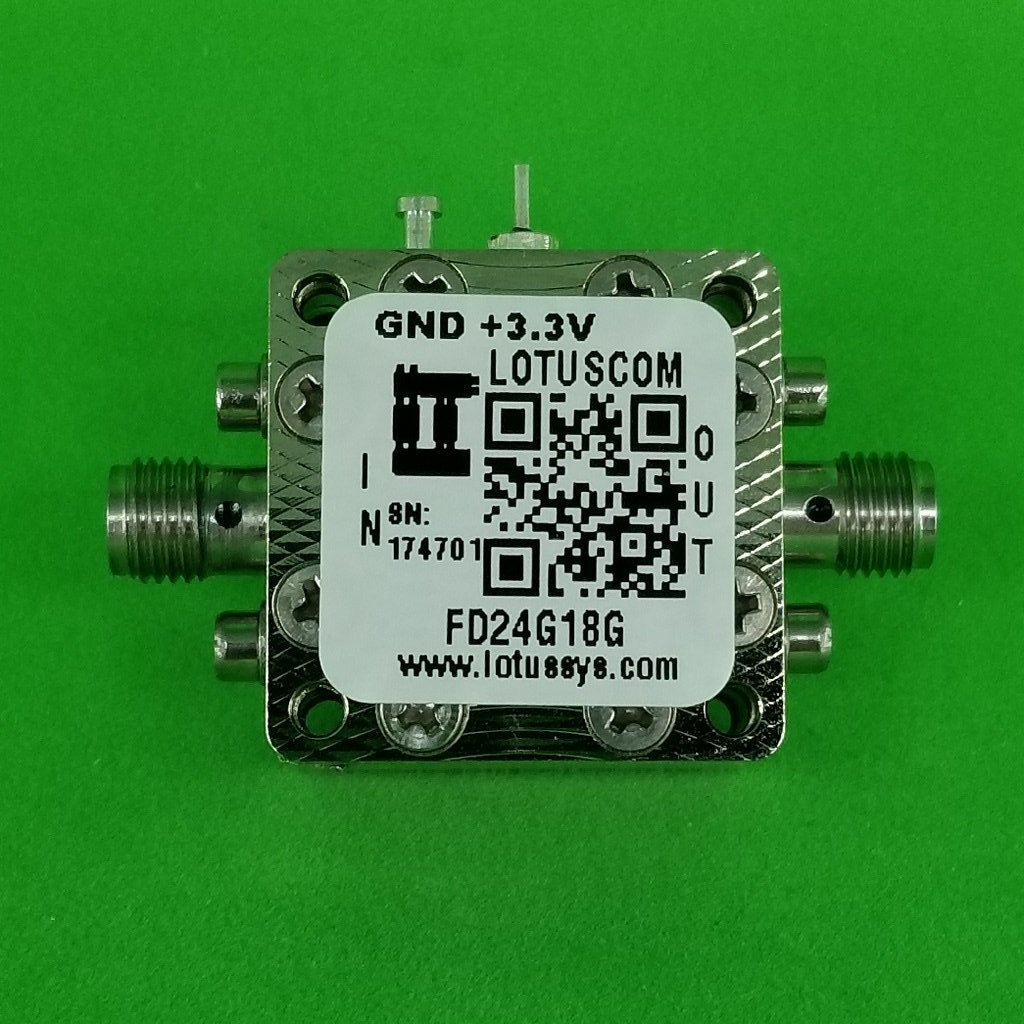

| FD24G18G | 2 | 4G | 18G | -10dBm | 10dBm | -5dBm | 3.3 | 30 | EAR99 | $328.00 | Order | |
|
FD24G18GR |
PDF |
2 |
4G |
18G |
-10dBm |
10dBm |
-5dBm |
4~12 |
30 |
EAR99 |
$426.00 |
Order |
| FD44G18G | 4 | 4G | 18G | -10dBm | 10dBm | -5dBm | 3.3 | 30 | EAR99 | $276.00 | Order | |

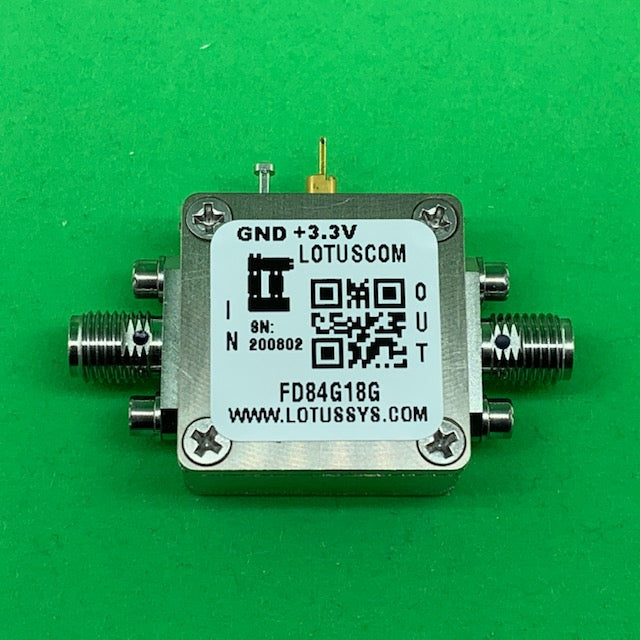

| FD84G18G | 8 | 4G | 18G | -10dBm | 10dBm | -5dBm | 3.3 | 30 | EAR99 | $328.00 | Order | |
| FD2DC18G | 2 | DC | 18G | -10dBm | 10dBm | -4dBm | 5 | 78 | EAR99 | $328.00 | Order | |
| FD2DC18GR | 2 | DC | 18G | -10dBm | 10dBm | -4dBm | 5~12 | 78 | EAR99 | $438.00 | Order | |
| FD4DC18G | 4 | DC | 18G | -10dBm | 10dBm | -4dBm | 5 | 96 | EAR99 | $328.00 | Order | |
| FD8DC18G | 8 | DC | 18G | -10dBm | 10dBm | -4dBm | 5 | 103 | EAR99 | $328.00 | Order | |
| FD2DC24G | 2 | DC | 24G | -15dBm | 10dBm | 3dBm | 5 | 73 | EAR99 | $328.00 | Order | |
| FD4DC24G | 4 | DC | 24G | -15dBm | 10dBm | 2dBm | 5 | 78 | EAR99 | $328.00 | Order | |
| FD8DC24G | 8 | DC | 24G | -15dBm | 10dBm | 2dBm | 5 | 81 | EAR99 | $328.00 | Order | |

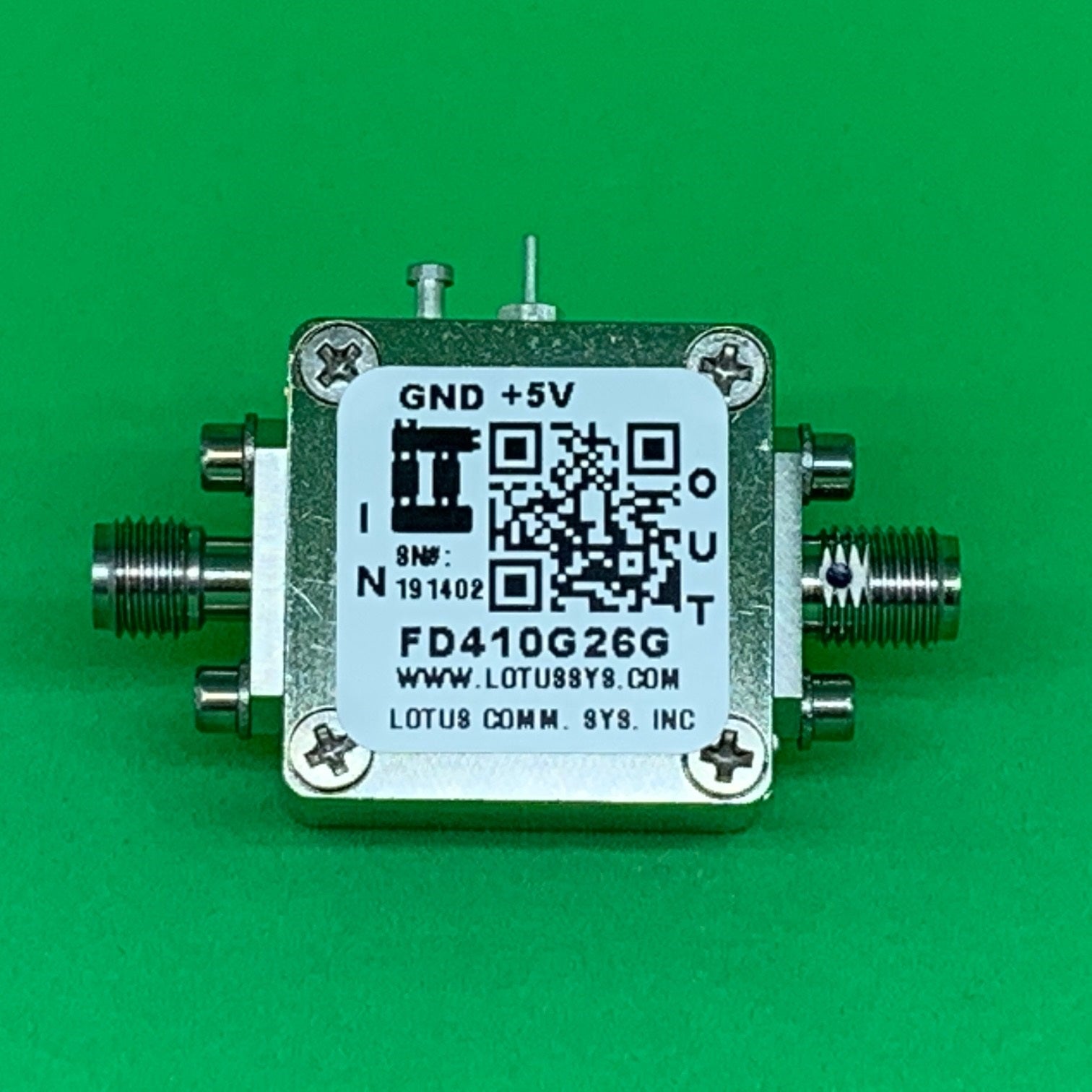

| FD410G26G | 4 | 10G | 26G | -15dBm | 10dBm | -4dBm | 5 | 96 | EAR99 | $438.00 | Order |
