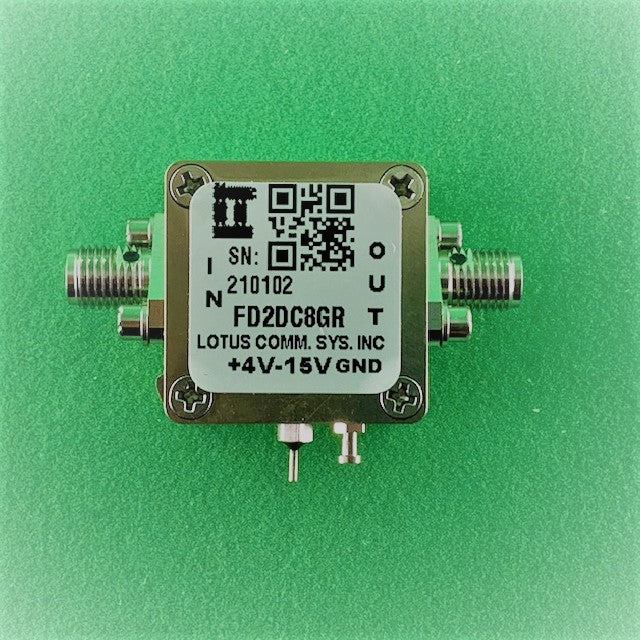

Frequency Divider by 2 (DC Hz to 8 GHz) Wide Voltage FD2DC8GR
$ 328.00 USD - $ 418.00 USD

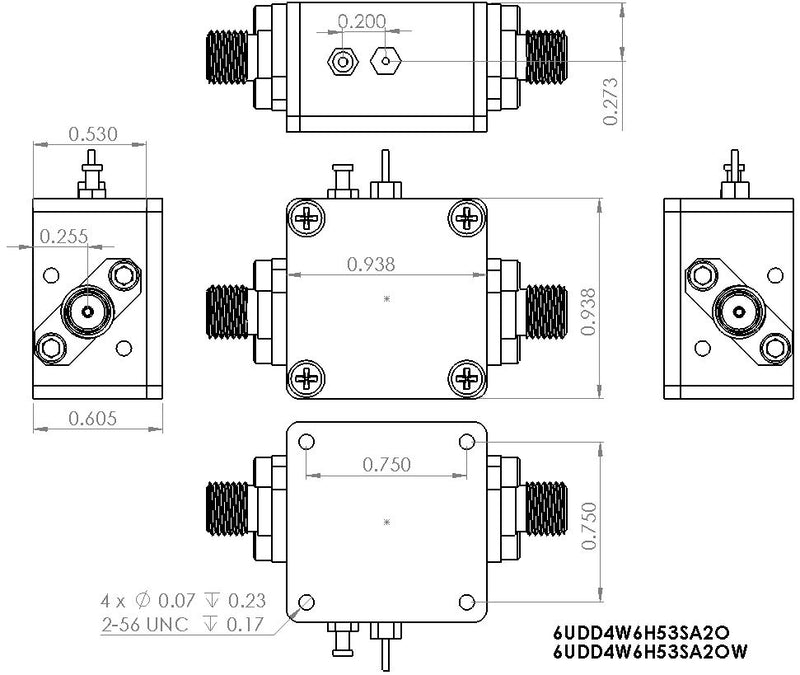

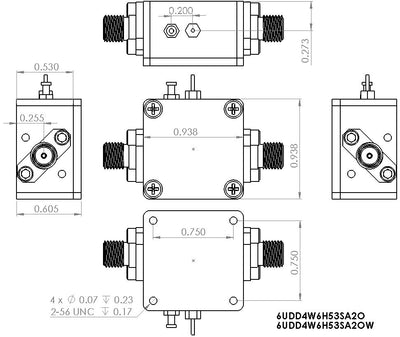

Part Number: FD2DC8GR is a Divide by M=2 Frequency divider with input frequency range from 100 MHz to 8 GHz. Enclosure is using RF Design Kit: 6UDD4W6H53SA2O with dimension 0.9375"x0.9375x0.60". The FD2DC8GR can be powered from a single supply +4V~15V. SKU#: AK20-005N.
Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).
Features
- Frequency Range: DC to 8 GHz
- Divide by M: (M=2)
- Operating Temperature -40 to +85°C
- Input Power Range: Fin = 1-7 GHz Min. -12 dBm, Max. +12 dBm
- Input Power Range: Fin = 7-8 GHz Min. -4 dBm, Max. +10 dBm
- SSB Phase Noise (100 KHz offset) at Fin =4 GHz, Pin=0 dBm, -148 dBc/Hz
- Supply current (Icc) typical 42 mA
- Wide Supply Voltage Vcc=4.0~15V
- High Quality Stainless Steel SMA Connector
- EMI Shield & Weatherproof Option Available ($90 Extra)
- ROHS Compliant
Applications
- Microwave Radio
- Test Instrumentation
- Satellite Communication/Software Defined Radio/Ham Radio
Resources (PDF Datasheet)
FD2DC8GR Datasheet
