  • Gain Block Amplifier 4dB NF 7G to 15GHz 15dB Gain 15dBm P1dB SMA

    Part Number: GBA7G15G is a HBT Gain Block MMIC Amplifier covering 7 GHz to 15 GHz in a small 15/16”x15/16”x0.59” shielded RF enclosure (PN: 6UDD2W6S1A2).  This amplifier can be used as a cascadable IF or RF gain stage in 50 Ohm applications.  It delivers 15 dB gain, and +15dBm output P1dB with only 4 dB noise figure. The Gain Block can be biased from a single supply +5V. SKU#: AK20-002T.

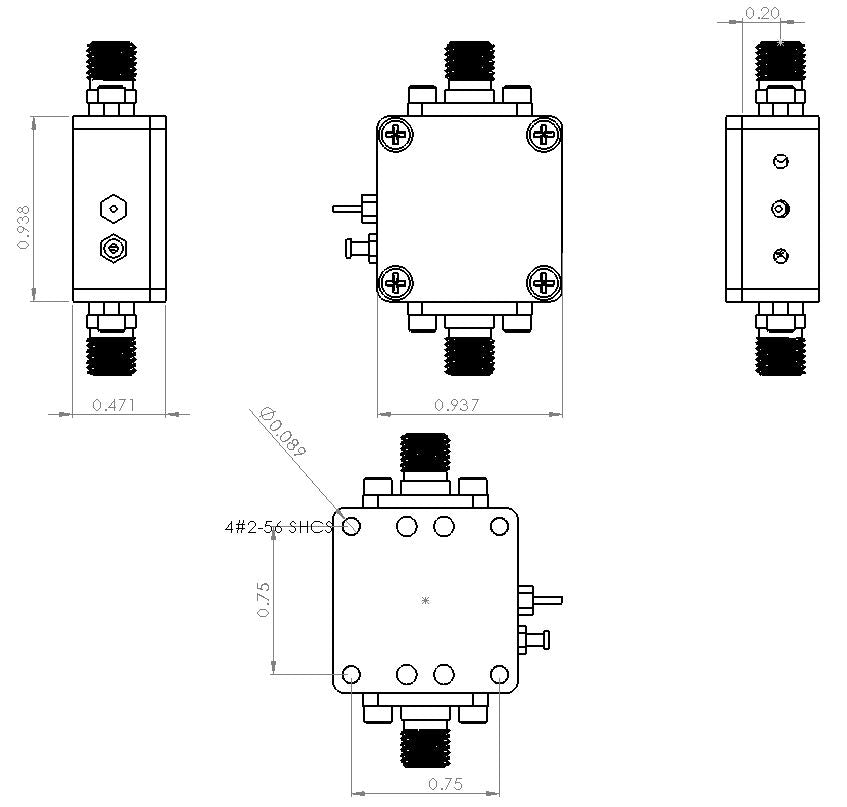

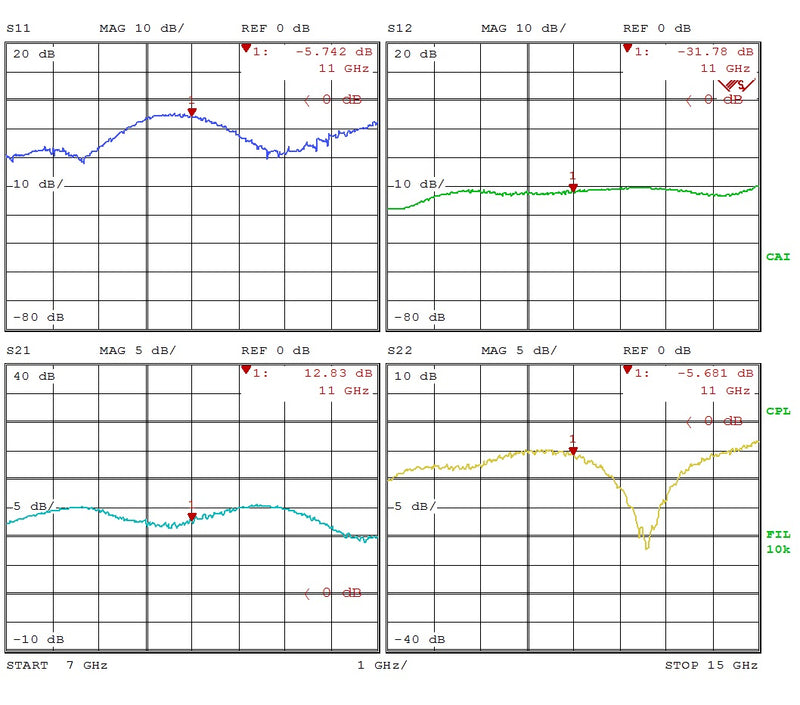

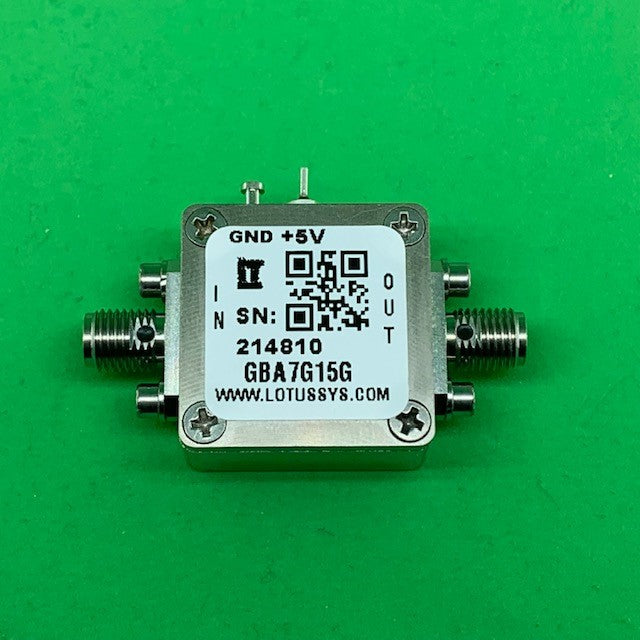

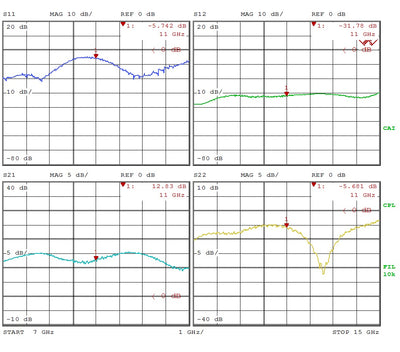

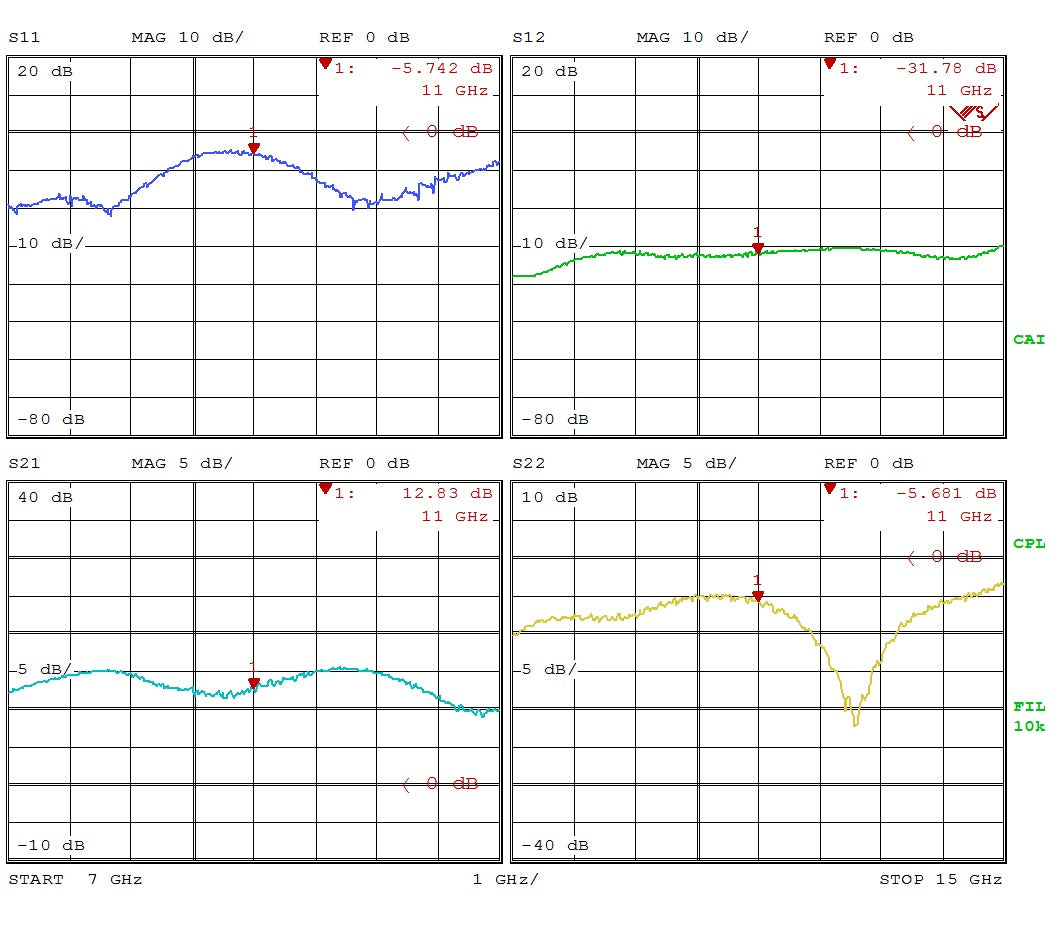

    Listed pictures include Product Picture and S Parameter from 7 to 15 GHz.

    Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).

    2 items left

    Features

    • Frequency Range: 7G to 15 GHz
    • High Output IP3: +28 dBm
    • Low Noise Figure: typical 4.0 dB
    • 15dB Gain, +15dBm P1dB
    • Single DC Voltage: +5V
    • Operating Current: 45 mA
    • Stainless Steel SMA Female Connector
    • High Quality Rogers RO4350 RF PCB
    • ROHS Compliant

    Applications

    • Repeaters/DAS
    • Mobile Infrastructure
    • LTE/WCDMA/CDMA/GSM
    • General Purpose Wireless
    • SDR & Ham Radio
    • Test Instrumentation

    Resources (PDF Datasheet)

    http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png GBA7G15G Datasheet
