Passive Frequency Mixer (MIX2P3G8G) 2.3G - 8GHz RF and DC - 3G IF

Passive Frequency Mixer (MIX2P3G8G) 2.3G - 8GHz RF and DC - 3G IF

Passive Frequency Mixer (MIX2P3G8G) 2.3G - 8GHz RF and DC - 3G IF

$ 97.90 USD

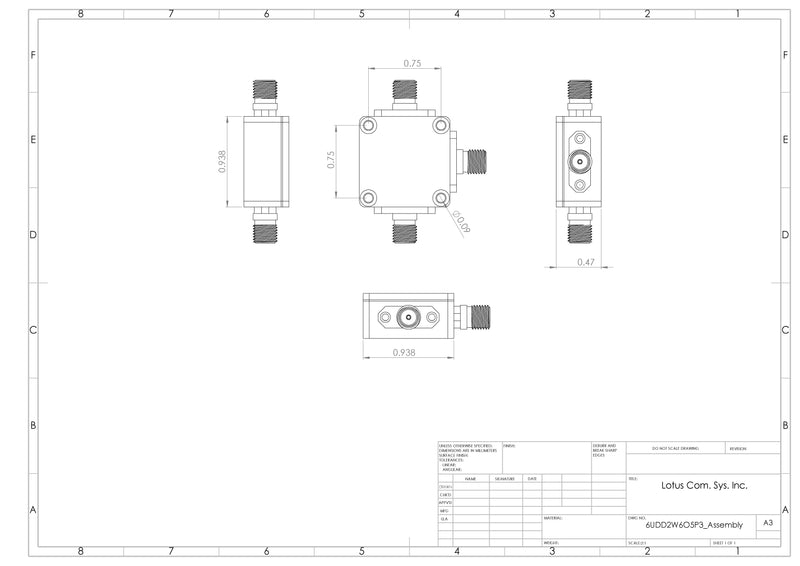

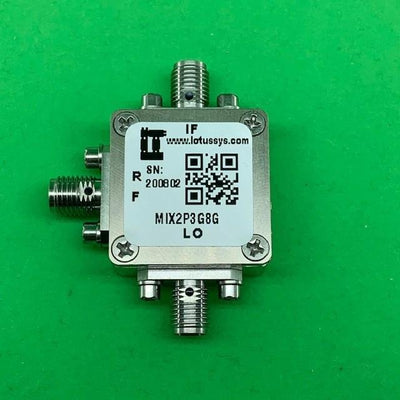

MIX2P3G8G is a Level 7 (LO Power +7 dBm) passive wide band frequency mixer (2300 to 8000 MHz) in a small 15/16”x15/16”x0.47” shielded RF enclosure (PN: 6UDD2W6O5P3). It has low insertion loss (6.0dB typ.) and excellent IF BW (DC to 3GHz). It can be used for up and down converter.

SKU#: AK20-001D.

Collections: Frequency Mixers

Features

Frequency Range: 2600 MHz to 8000 MHz;
Low insertion loos, 6.0 dB typ.
LTCC double balanced mixer
Useable as up and down converter
High Quality Rogers RO4350 RF PCB
ROHS Compliant

Applications

Satellite up/down converter
Mobile Infrastructure
VSAT/ISM
General Purpose Wireless
SDR & Ham Radio
Test Instrumentation

Resources

http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png

MIX2P3G8G Datasheet
