  • Passive Freq. Multiplier X3 (OUTPUT 4.8-6.6GHz)

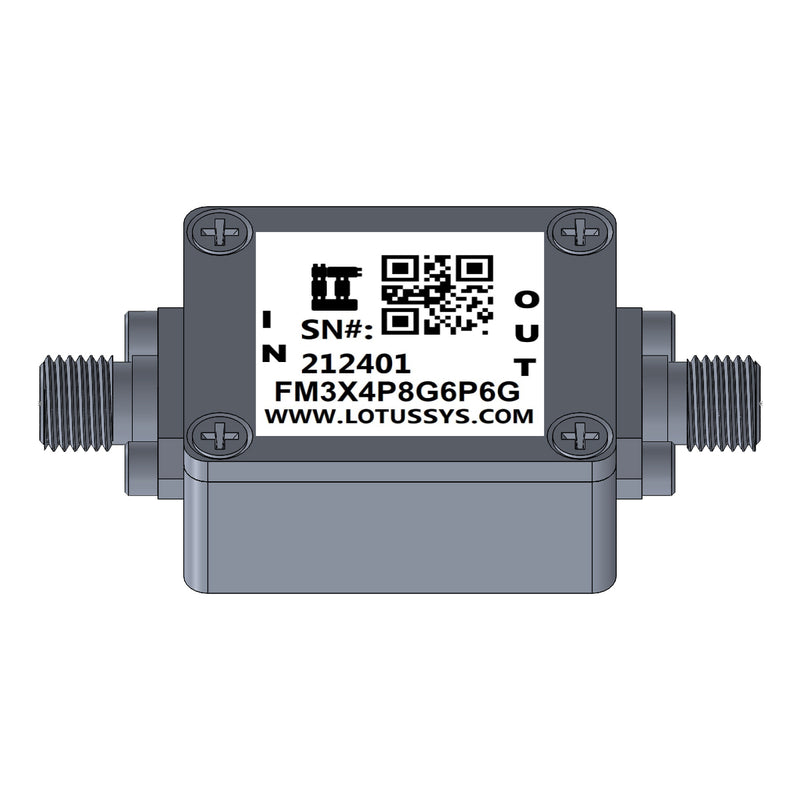

    Part Number#: FM3X4P8G6P6G Frequency Multiplier X3 with input frequency range from 1600-2200MHz and output frequency range from 4800-6600 MHz.
    Enclosure is using RF Design Kit 6UED2W6H41SMAA2 with dimension 1.125"x0.9375x0.48".

    Features

    • Multiply by M: (M=3)
    • Input Power: +9 to +13 dBm
    • Input Frequency Range: 1600-2200 MHz
    • Output Frequency Range: 4.8-6.6GHz
    • Conversion Loss: 15dB Typ.
    • Operating Temperature -40 to +85°C

    Applications

    • Synthesizer, Local Oscillators
    • Microwave Radio
    • Test Instrumentation
    • Satellite Communication/Software Defined Radio/Ham Radio

    Resources

    http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png FM3X4P8G6P6G Datasheet
