Passive Freq. Multiplier X3 (OUTPUT 6.6-10.5GHz)
$ 226.00 USD
Part Number#: FM3X6P6G10P5G Frequency Multiplier X3 with input frequency range from 2200-3500MHz and output frequency range from 6600-10500 MHz.

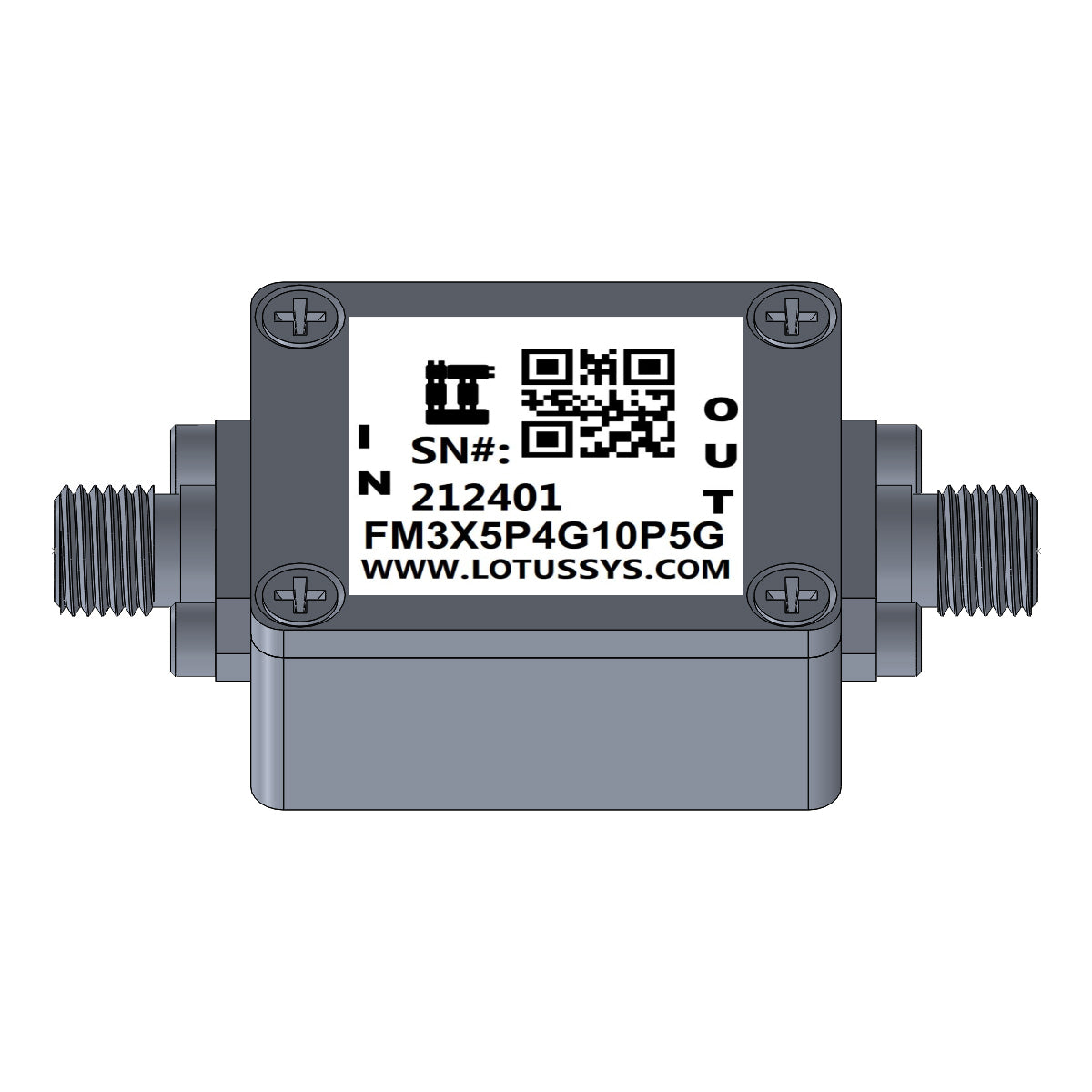

Enclosure is using RF Design Kit 6UED2W6H41SMAA2 with dimension 1.125"x0.9375x0.48".
Features
- Multiply by M: (M=3)
- Input Power: +7 to +11 dBm
- Input Frequency Range: 2200-3500 MHz
- Output Frequency Range: 6.6-10.5GHz
- Conversion Loss: 14.5dB Typ.
- Operating Temperature -40 to +85°C
Applications
- Synthesizer, Local Oscillators
- Microwave Radio
- Test Instrumentation
- Satellite Communication/Software Defined Radio/Ham Radio
Resources
FM3X6P6G10P5G Datasheet
