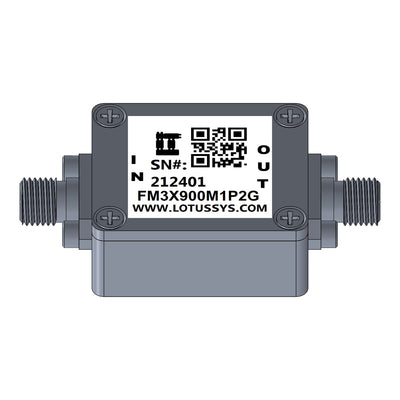

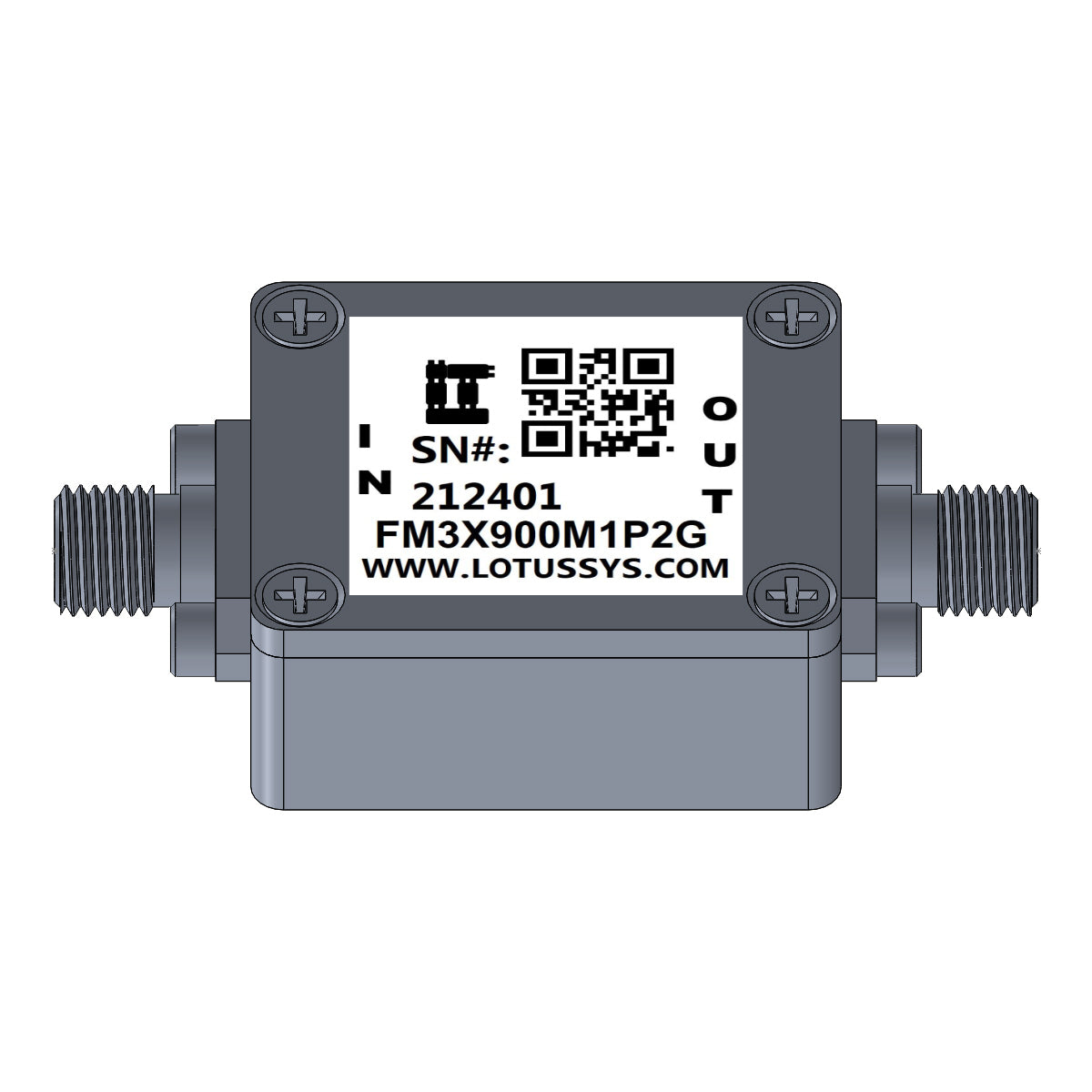

Passive Freq. Multiplier X3 (OUTPUT 900M-1.2G Hz)
$ 226.00 USD
Part Number#: FM3X900M1P2G Frequency Multiplier X3 with input frequency range from 300-400 MHz and output frequency range from 900-1200 MHz.
Enclosure is using RF Design Kit 6UED2W6H41SMAA2 with dimension 1.125"x0.9375x0.48".
Features
- Multiply by M: (M=3)
- Input Power: 0 to +6 dBm
- Input Frequency Range: 300-400 MHz
- Output Frequency Range: 900M-1.2G Hz
- Conversion Loss: 14.5dB Typ.
- Operating Temperature -40 to +85°C
Applications
- Synthesizer, Local Oscillators
- Microwave Radio
- Test Instrumentation
- Satellite Communication/Software Defined Radio/Ham Radio
Resources
FM3X900M1P2G Datasheet
