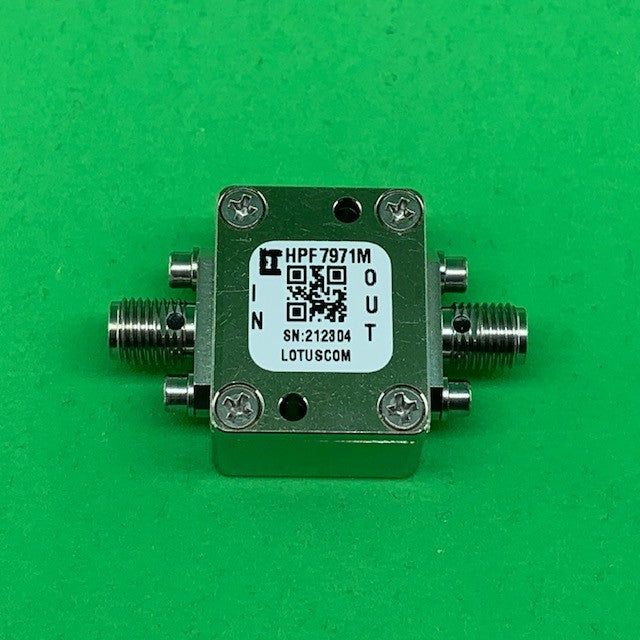

High Pass Filter (LTCC Construction) HPF7971M Pass Band 8.5G - 12.8 GHz
$ 66.00 USD
Part Number: HPF7971M -- High Pass Filter (LTCC Construction) Pass Band 7.9G-11 GHz. SKU#: AK20-014B.

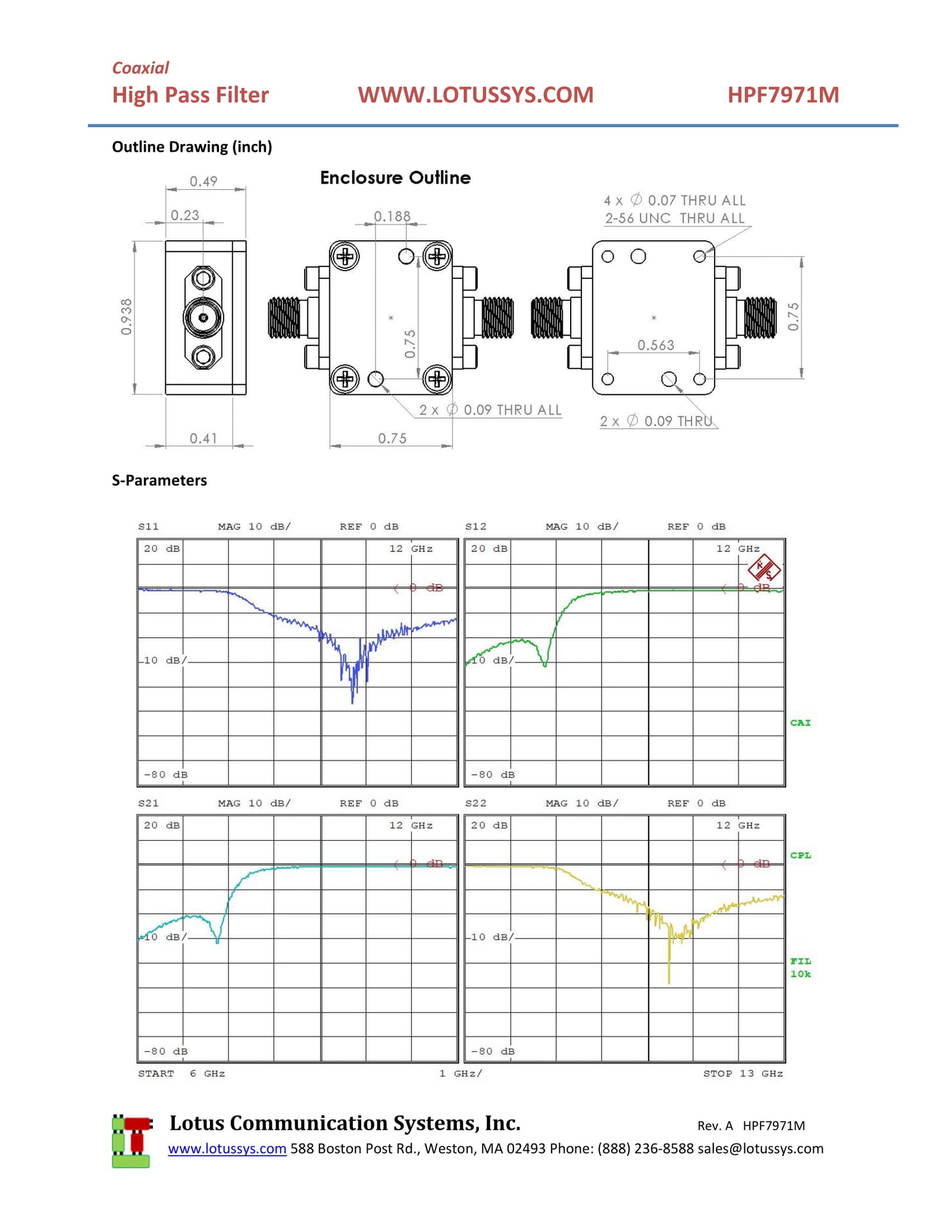

Enclosure uses RF Design Kit with dimension 0.9375"x0.75x0.48". S-Parameter of part measured on VNA (6 GHz to 13 GHz) is shown in third picture.
Made in USA.
Features
- Operational Temperature: -55 ~ 100℃
- Temperature Stable
- 3dB Cut Off Frequency: 8000 MHz
- RF Power Input: 7W max. at 25℃
- Insertion Loss in Pass Band: (1.5dB Max)
- High Quality SMA Female Connector
- High Quality Rogers RO4350 RF PCB
- ROHS Compliant
Applications
- Harmonic Rejection
- Transmitters / Receivers / SDR
- Test Instrumentation
Resources

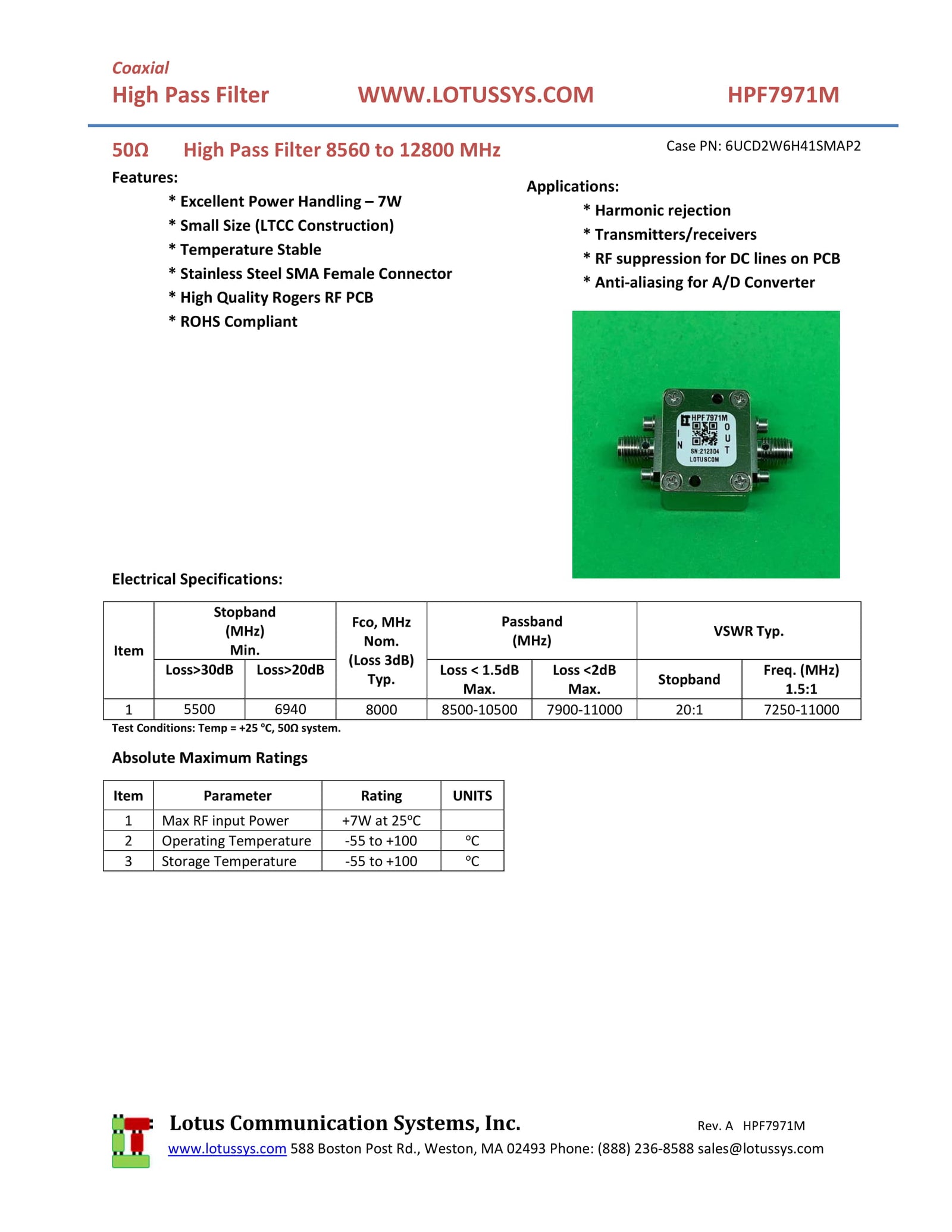

HPF7971M Datasheet
