Limiter 100 MHz - 18 GHz 10 Watts
$ 318.00 USD

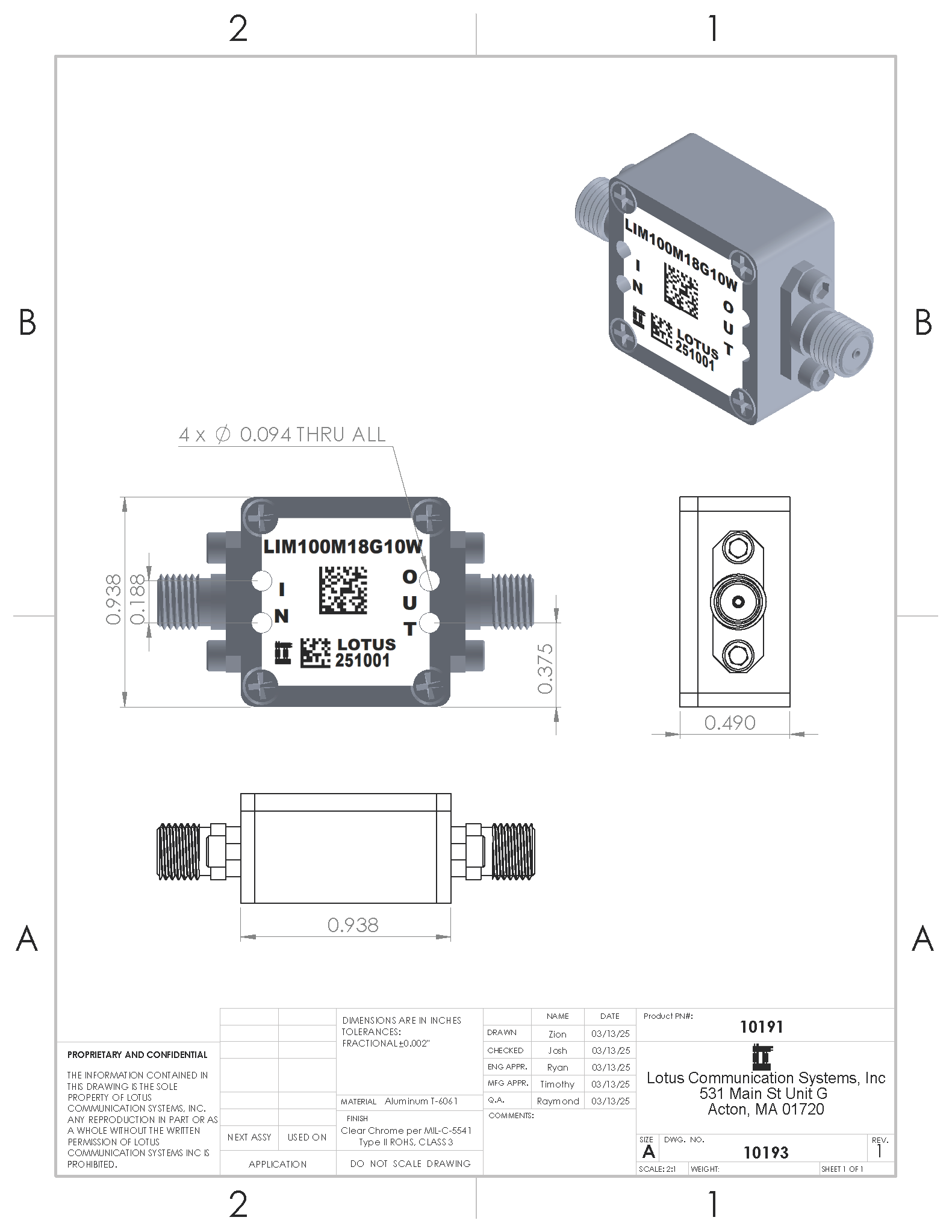

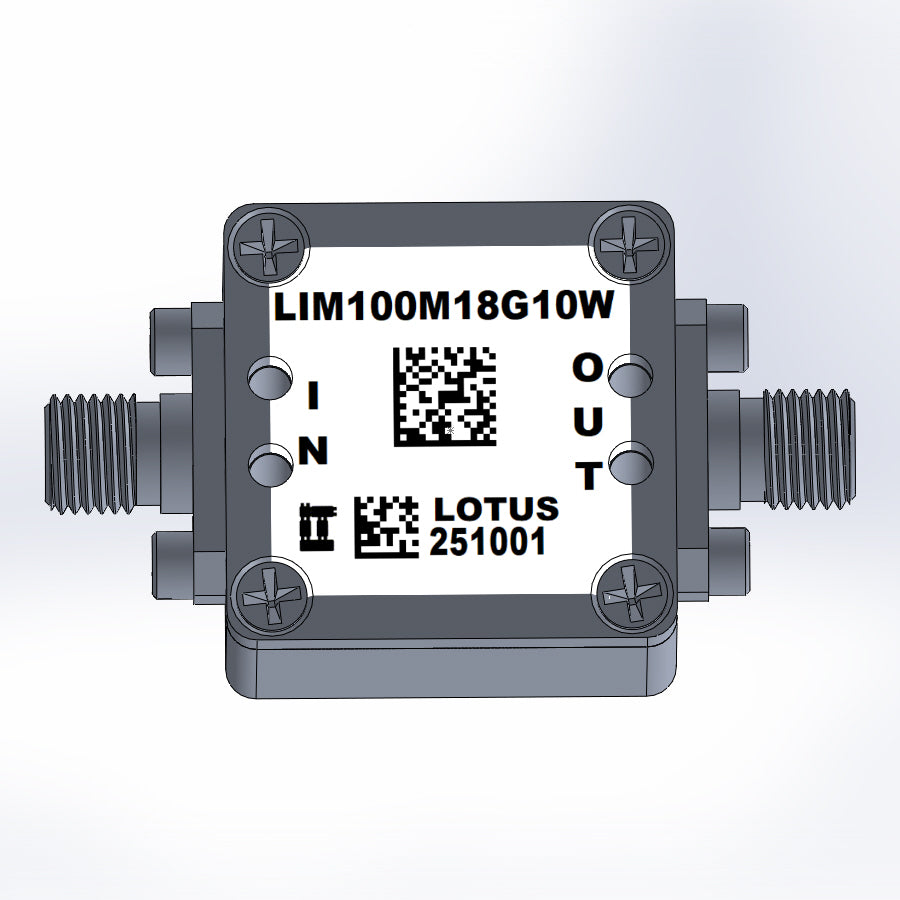

PN#: LIM100M18G10W is a RF limiter in a small 15/16”x15/16”x0.49” shielded RF enclosure. The limiter protects against ESD and input power surges over a frequency range 0.1 to 18 GHz. It can withstand up to 10 Watts incident power levels and allows < 18.5dBm flat leakage. The limiter provides protection for RF/Microwave equipment in hostile environment.
SKU#: AK20-024M.
Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).
Features
- Frequency Range: 0.1 to 18 GHz
- Low Insertion Loss: <0.9 dB at 8GHz
- Peak Power Handling: 10 W (Pulsed)
- Flat Leakage: < 18.5 dBm
- Fast recovery time < 115 ns
- Passive (no DC bias required)
- Stainless Steel SMA Female Connector
- ROHS Compliant
Applications
- Stabilize RF outputs
- Reduce amplitude variations
- Protect LNA and other devices
from ESD or input power damage
Resources (PDF Datasheet)
LIM100M18G10W Datasheet
