LNA (LNA600M6GFG2S) 0.9dB NF 0.6~6GHz 39dB Gain - 2 Stage High Gain
$ 328.00 USD

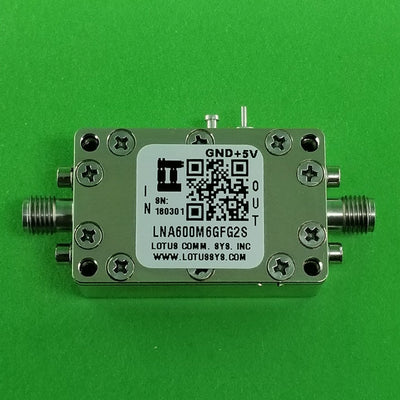

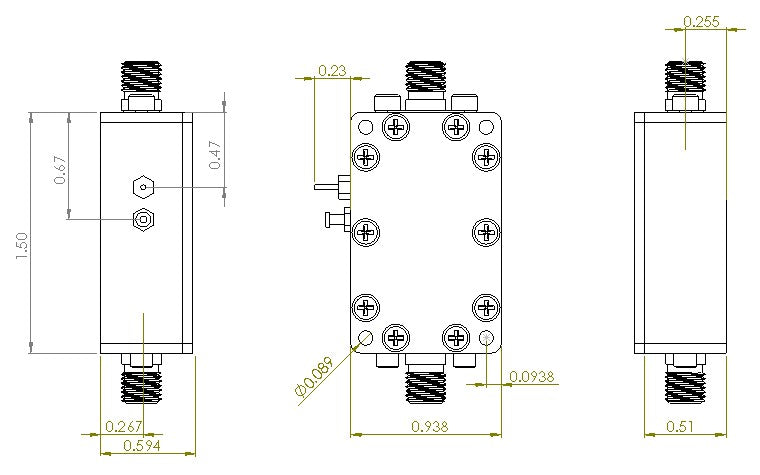

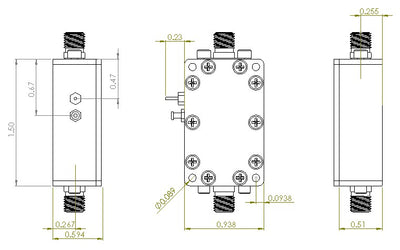

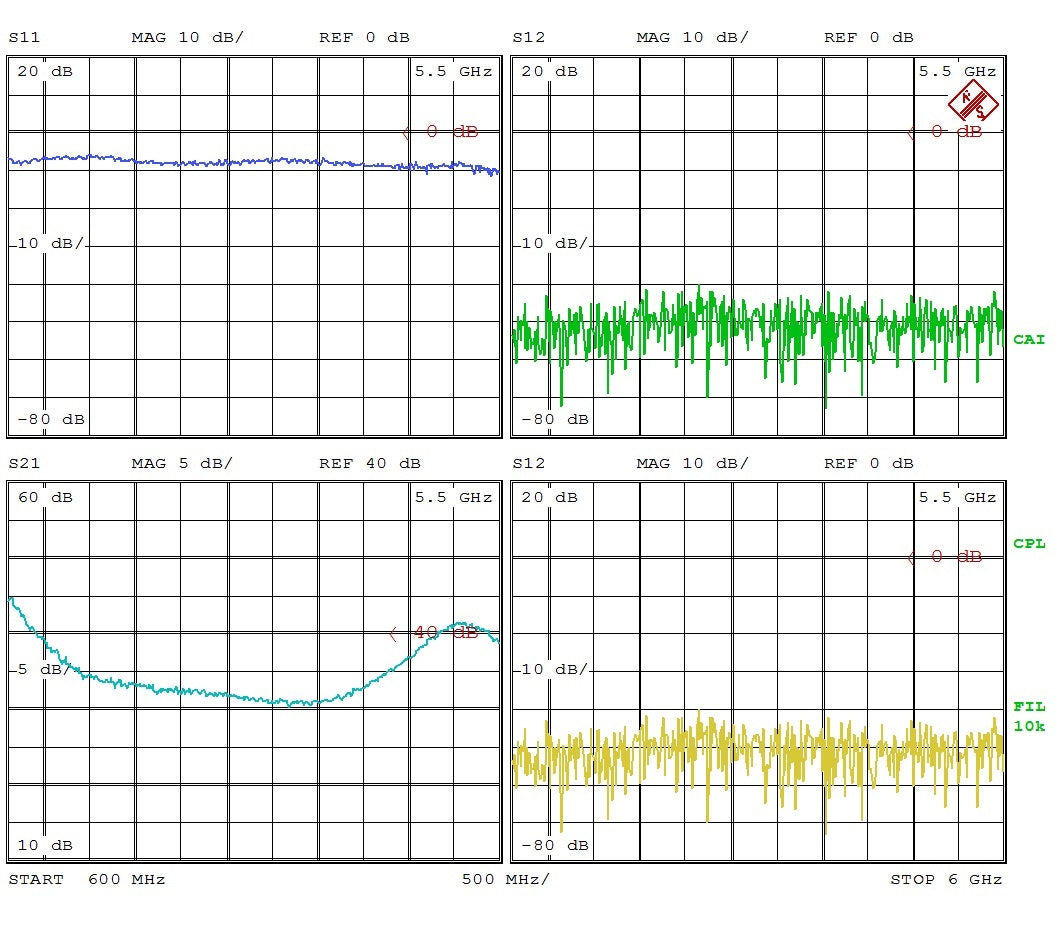

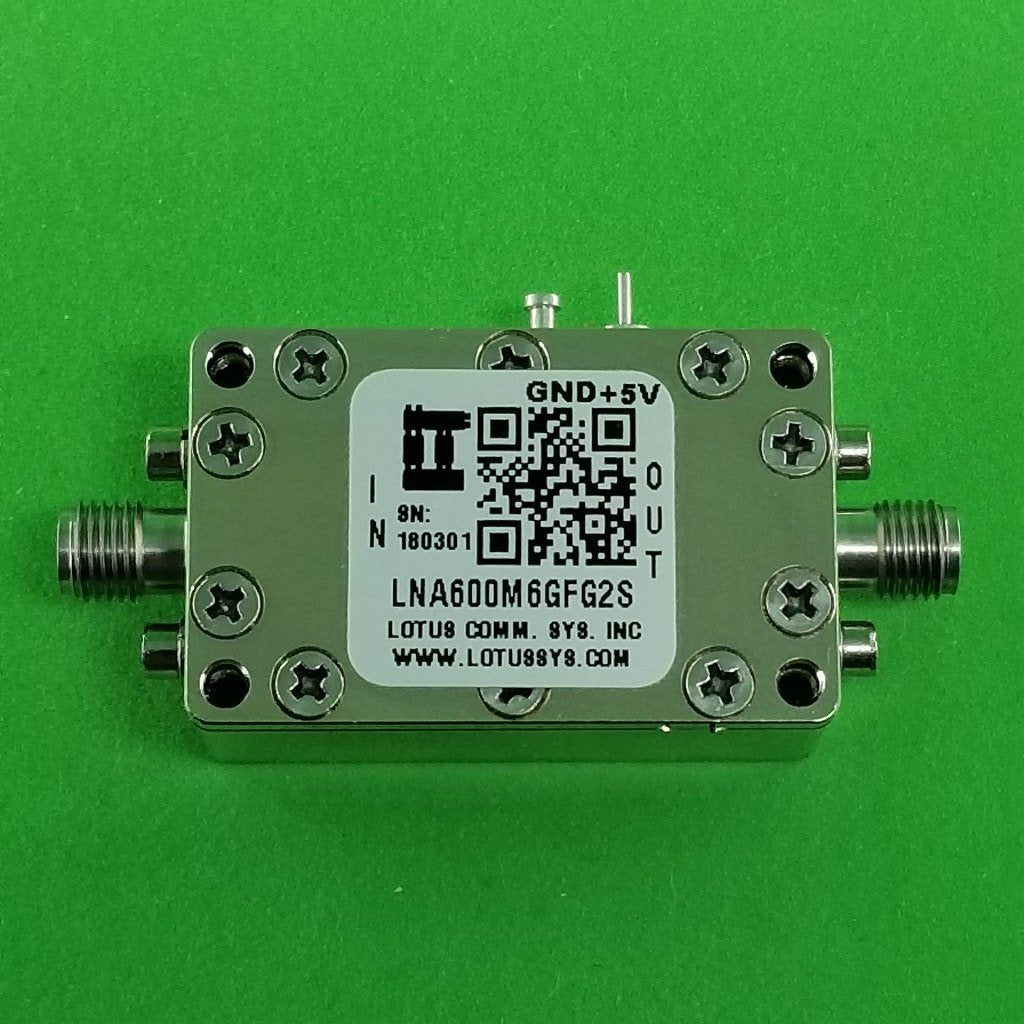

PN#: LNA600M6GFG2S is a 2 stage, flat gain, high-linearity, ultra low noise amplifier in a small 1-1/2”x15/16”x0.59” shielded RF enclosure (PN: 6UGD2W6S1A2). The LNA provides a +/2dB flat gain (peak-to-peak) from 2G to 4GHz. At 5.35 GHz, the amplifier typically provides 39 dB gain, +35.5 dBm OIP3 at a 120 mA bias setting, and 0.85 dB noise figure. The LNA can be biased from a single supply +5V. Listed pictures include Product Picture and S Parameter from 600M to 6 GHz. SKU#: AK20-001C.
Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).
Features
- Frequency Range: 600 MHz to 6 GHz
- Noise Figure: typical 0.85 dB @ 5.35 GHz
- Gain: 39 dB Gain at 5.35 GHz
- Output P1dB: +19 dBm CW
- +35.5 dBm OIP3 at 120mA current
- DC Voltage: +5V
- Stainless Steel SMA Female Connector
- High Quality Rogers RO4350 RF PCB
- ROHS Compliant
Applications
- 4.5G, 5G Massive MIMO
- Repeaters/DAS
- Mobile Infrastructure
- LTE/WCDMA/CDMA/GSM
- General Purpose Wireless
- SDR & Ham Radio
- Test Instrumentation

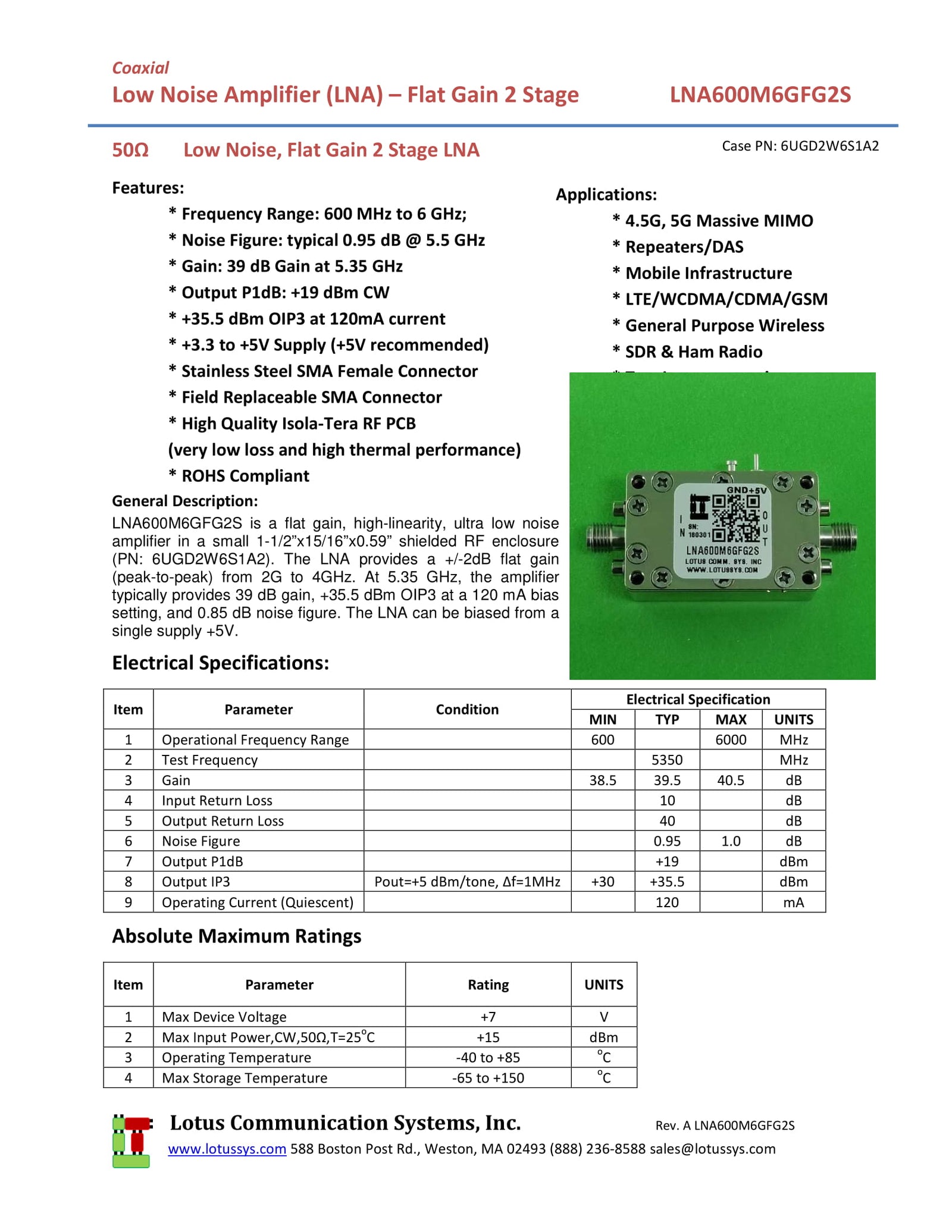

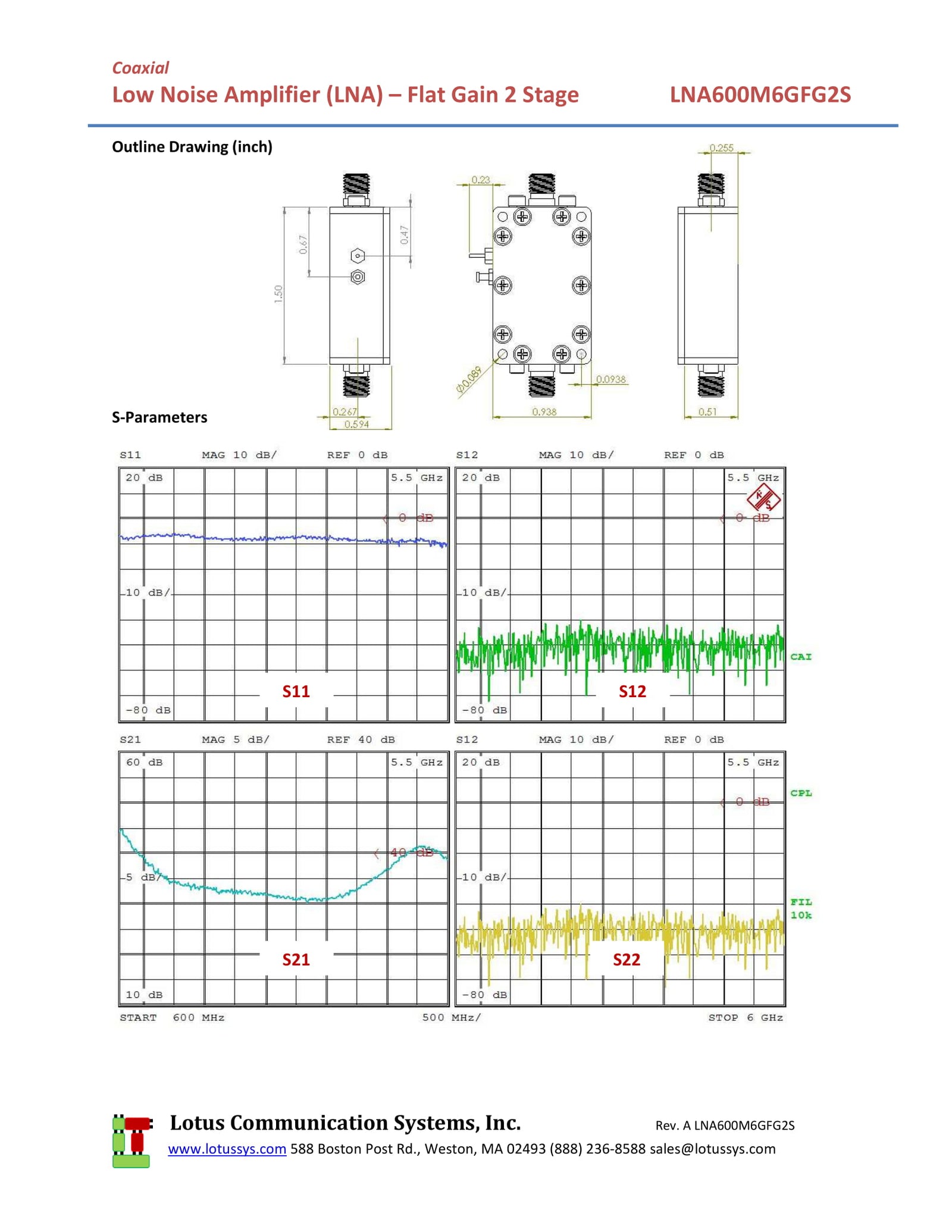

Resources (PDF Datasheet)
LNA600M6GFG2S Datasheet
