Low Noise Amplifier 0.45dB NF 100M~2GHz 40dB Gain 20dBm P1dB SMA - 2 Stage High Gain
$ 228.00 USD - $ 318.00 USD

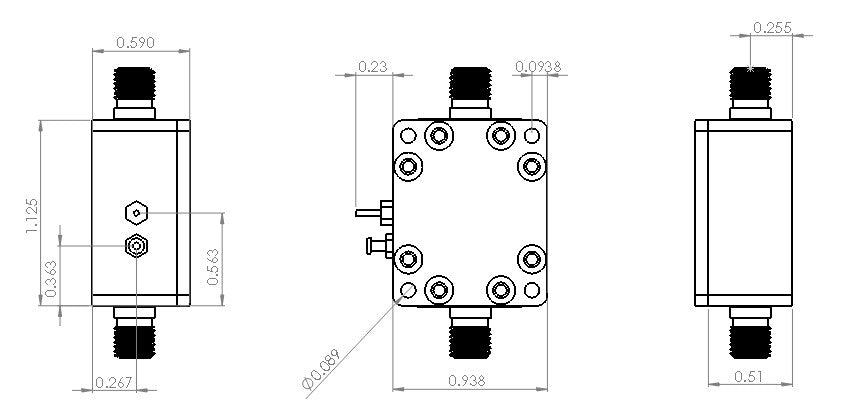

Part Number: LNA100M2G2S is a high-linearity, ultra low noise 2 Stage High Gain amplifier in a small 1-1/8”x15/16”x0.59” shielded RF enclosure (PN: 6UED2W6S1A2). At 900 MHz, the amplifier typically provides 40 dB gain, +36 dBm OIP3 at a 135 mA bias setting, and 0.45 dB noise figure. The LNA can be biased from a single supply +3V to +5V.

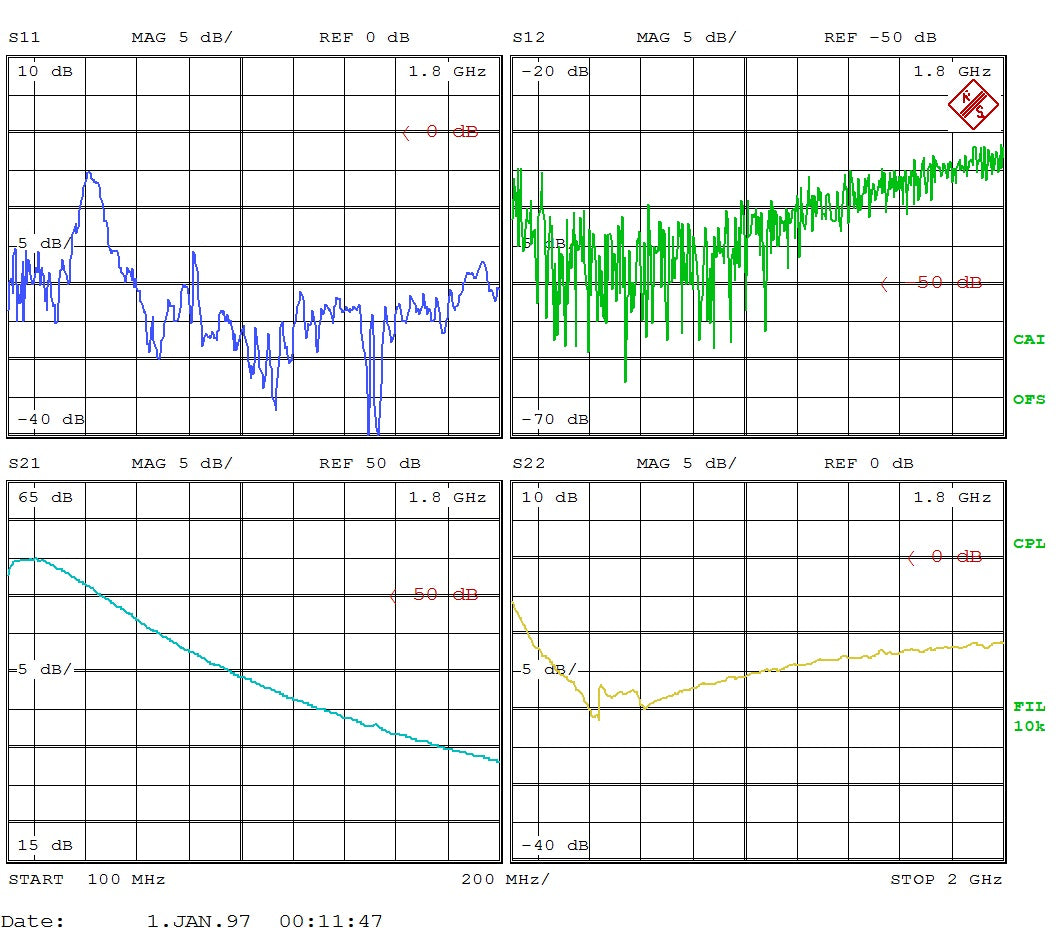

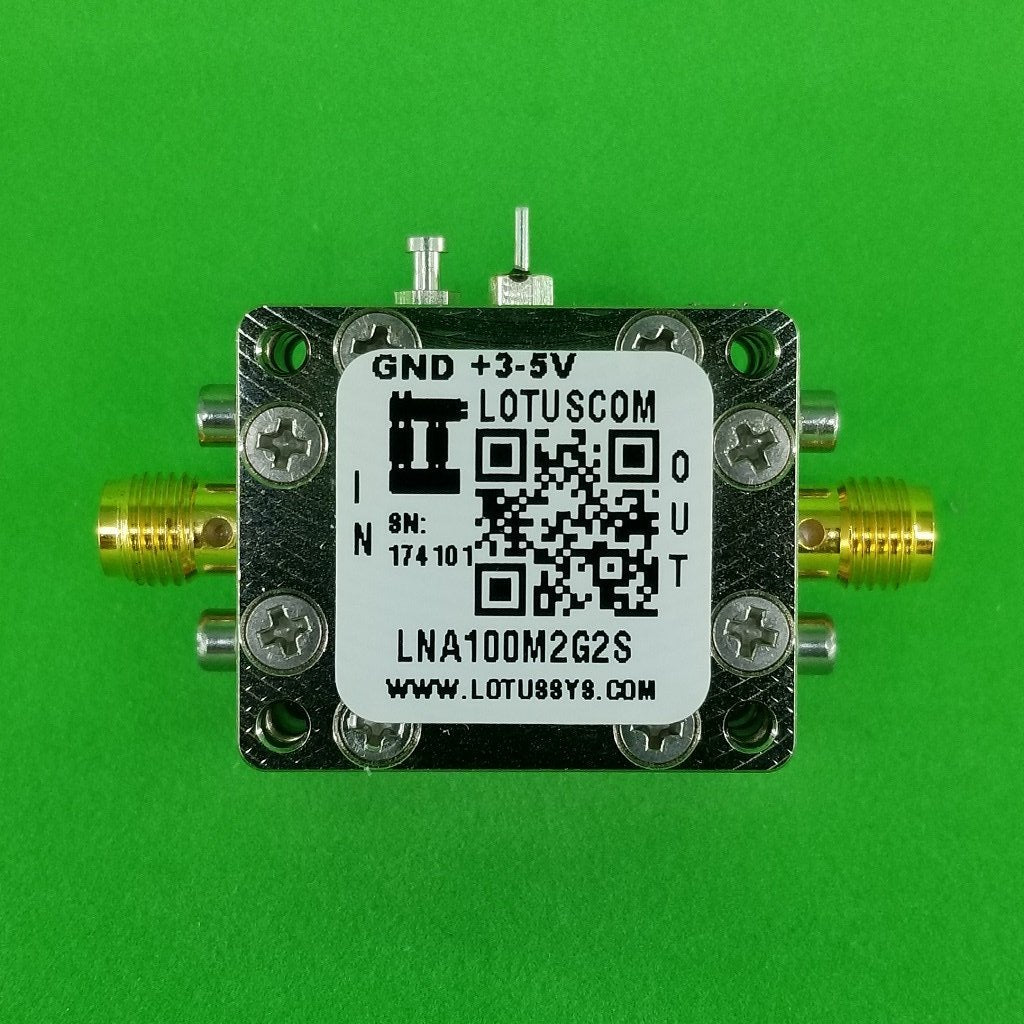

Listed pictures include Product Picture and S Parameter from 100M to 2GHz.
Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts. SKU#: AK20-001S.
Features
- Frequency Range: 100 MHz to 2 GHz;
- Noise Figure: typical 0.45 dB @ 900MHz
- Gain: 40 dB Gain at 900 MHz
- Output P1dB: +22 dBm CW
- Output IP3: +36 dBm
- DC Voltage: +3 to +5V
- Operating Current: 135 mA
- Stainless Steel SMA Female Connector
- High Quality Rogers RO4350 RF PCB
- ROHS Compliant
Applications
- Repeaters/DAS
- Mobile Infrastructure
- LTE/WCDMA/CDMA/GSM
- General Purpose Wireless
- SDR & Ham Radio
- Test Instrumentation
Resources (PDF Datasheet)
