Low Noise Amplifier 1.8dB NF 6GHz to 11GHz 19dB Gain 16.5dBm P1dB SMA
$ 296.00 USD - $ 386.00 USD

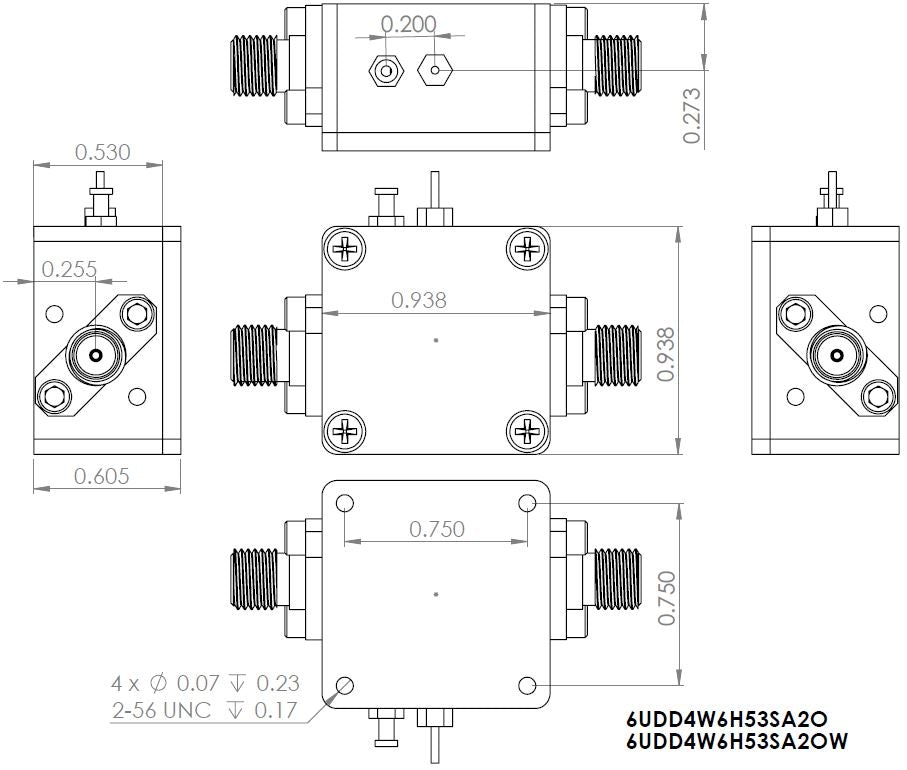

Part Number: LNA6G11GR (SKU#: AK20-019O) is a flat gain, high-linearity, ultra low noise amplifier in a small 15/16”x15/16”x0.6” shielded RF enclosure. The LNA provides a +/-2dB flat gain (peak-to-peak) from 6 to 11 GHz. At 8.5 GHz, the amplifier typically provides 19 dB gain, +26.5 dBm OIP3 at a 66mA bias setting, and 1.8 dB noise figure. The LNA can be biased from a single supply +6V~15V.

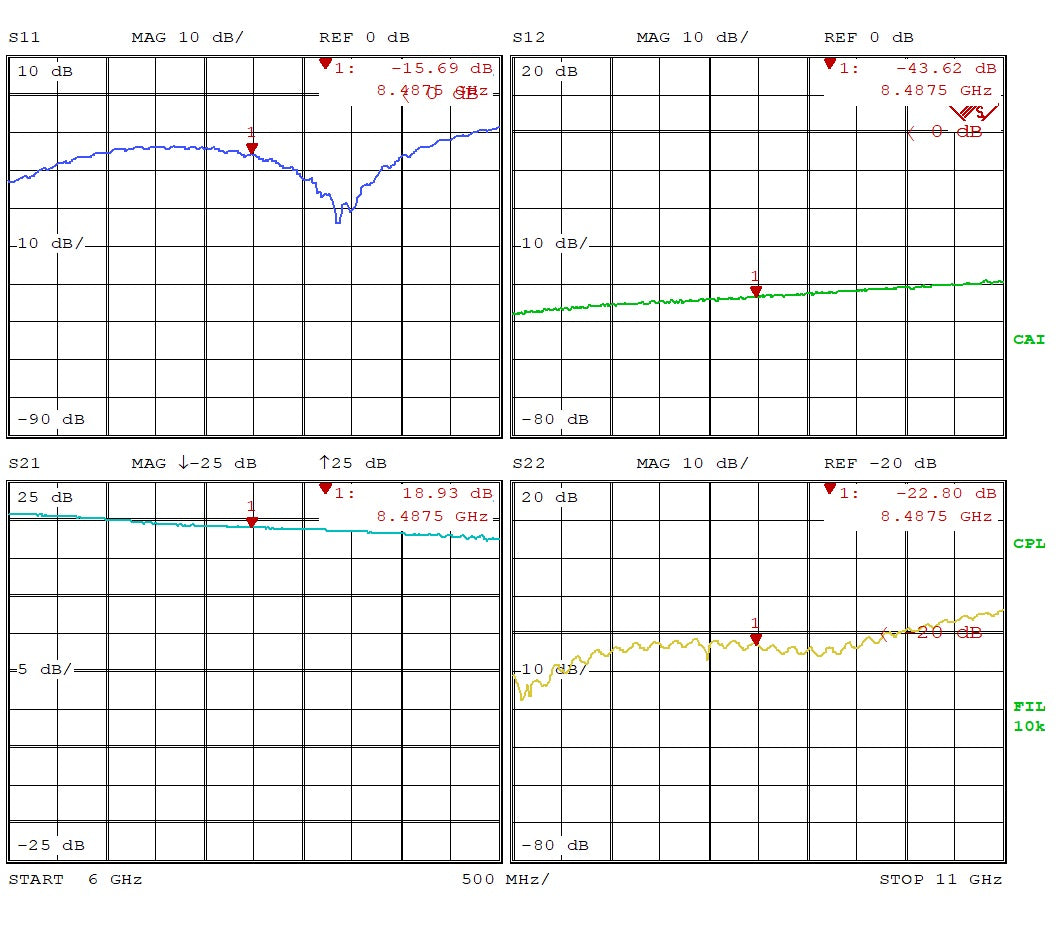

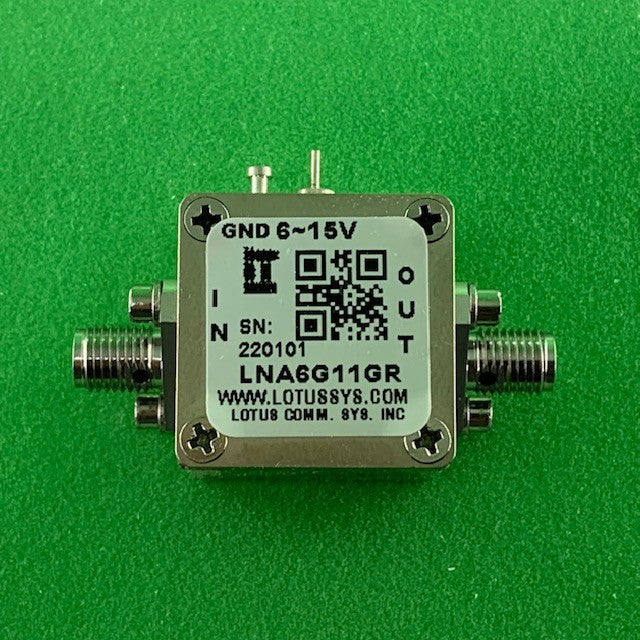

Listed pictures include Product Picture and S Parameter from 6G to 11GHz.
Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).
Features
- Frequency Range: 6 GHz to 11 GHz
- Noise Figure: typical 1.8 dB @ 8.5 GHz
- Gain: 19 dB Gain at 8 GHz
- Output P1dB: +16.5 dBm CW
- Output IP3: +26.5 dBm
- DC Voltage: +6 to +15V
- Operating Current: 66 mA
- Stainless Steel SMA Female Connector
- ROHS Compliant
- EMI Shield (Waterproof) Option Available (PN#: LNA6G11GRW, SKU#: AK20-005R)
Applications
- General Purpose Wireless
- Mobile Infrastructure
- LTE/WCDMA/CDMA/GSM
- SDR & Ham Radio
- Test Instrumentation
