Low Noise Amplifier1.2dB NF 6GHz to 18GHz 21dB Gain Positive Gain Slope Wide Voltage
$ 328.00 USD - $ 418.00 USD

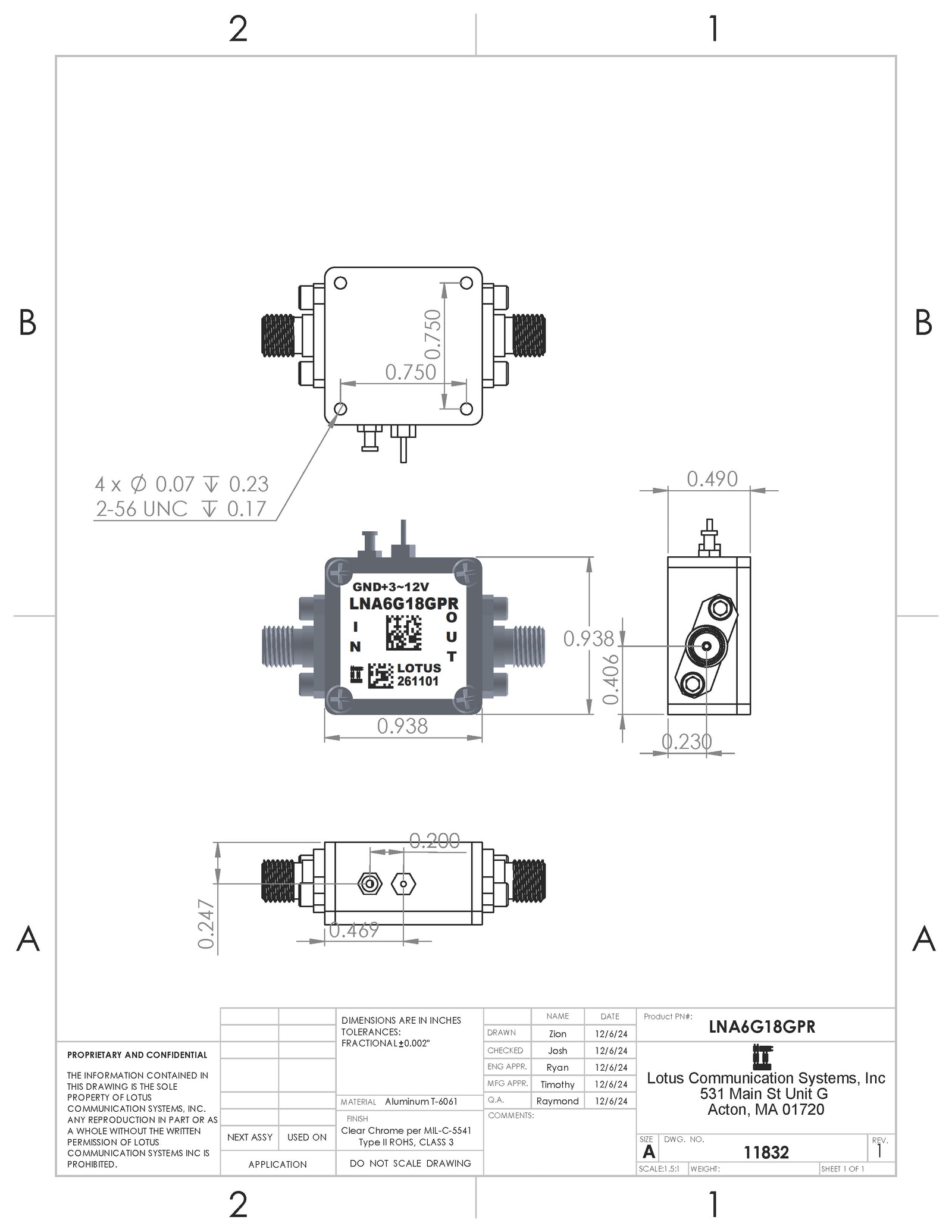

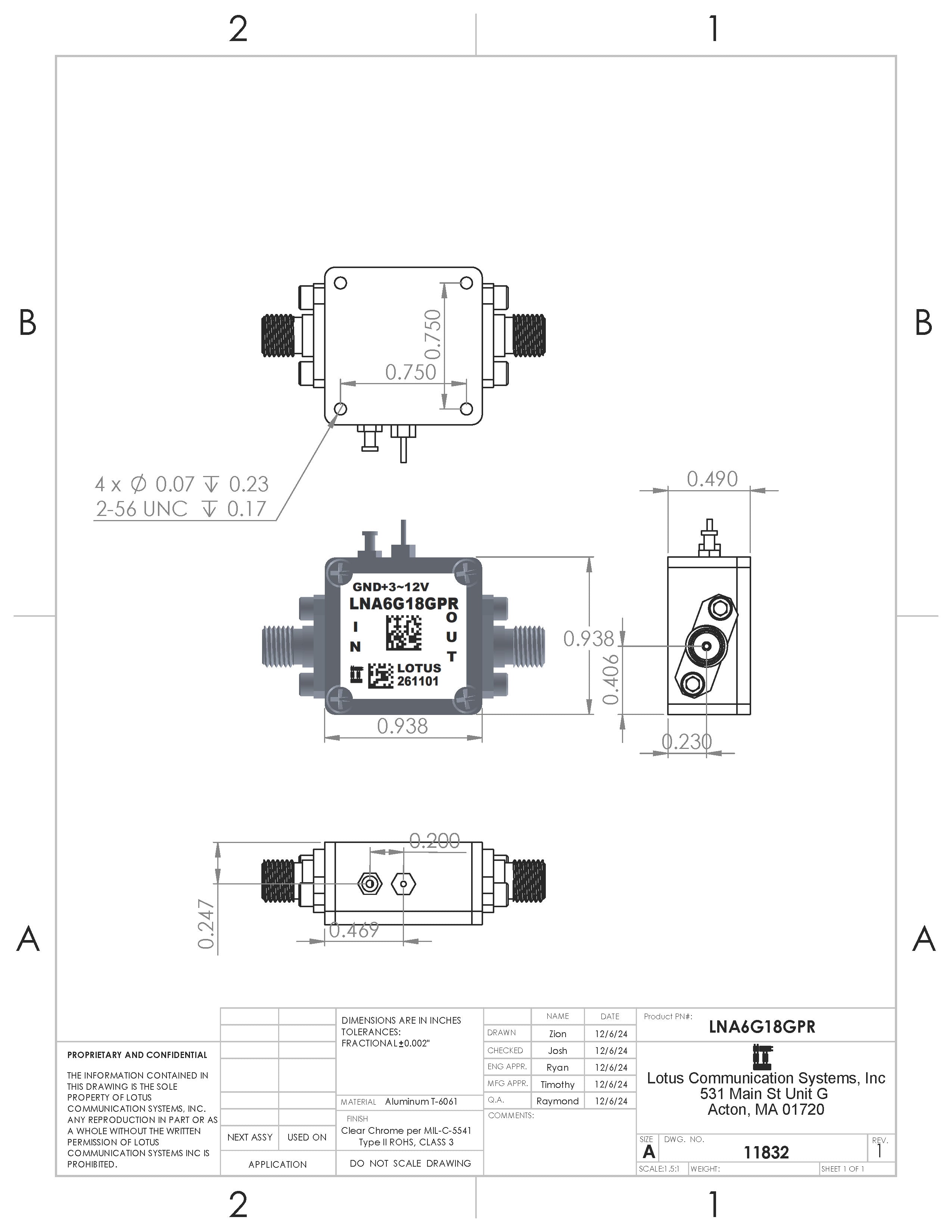

Part Number: LNA6G18GPR is a broadband, MMIC low noise amplifier with a unique combination of high gain, positive gain slope, high directivity and low noise figure in a small 15/16”x15/16”x0.49” shielded RF enclosure. High directivity eliminates the need for expensive isolator and positive gain eliminates the need for equalization.

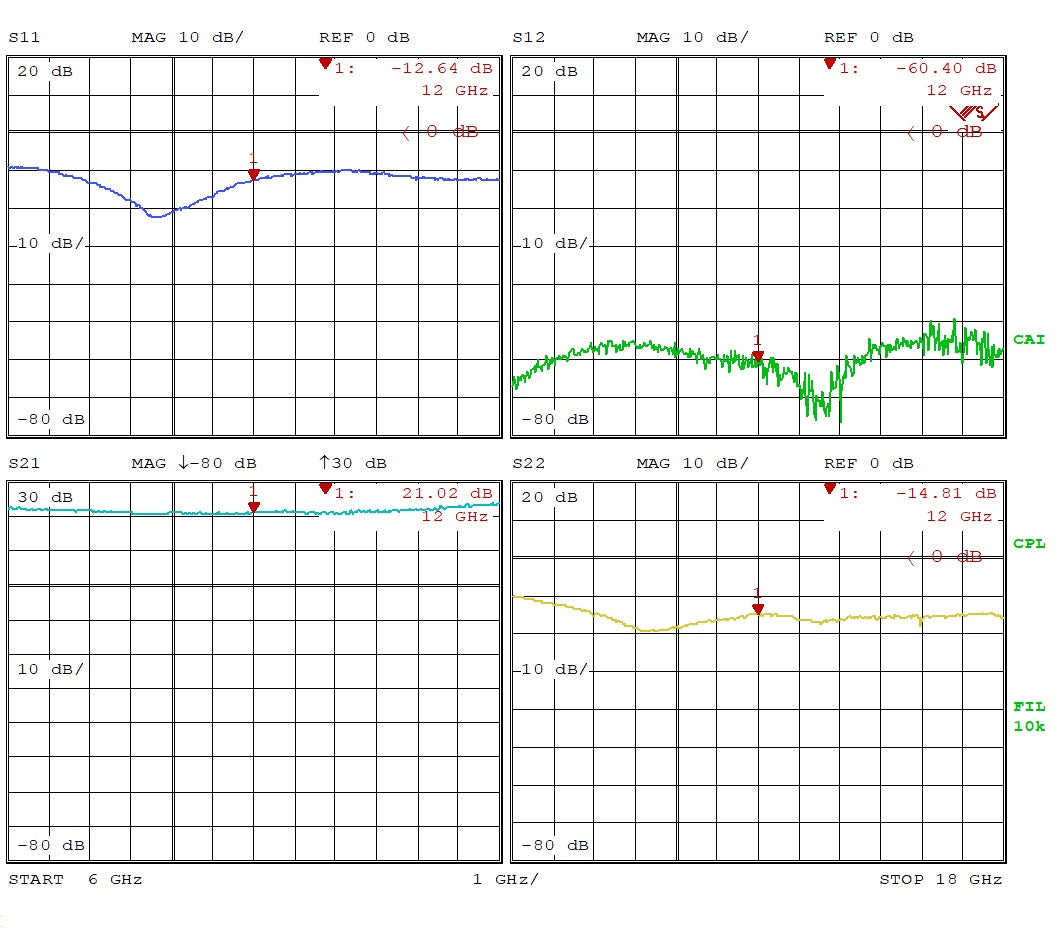

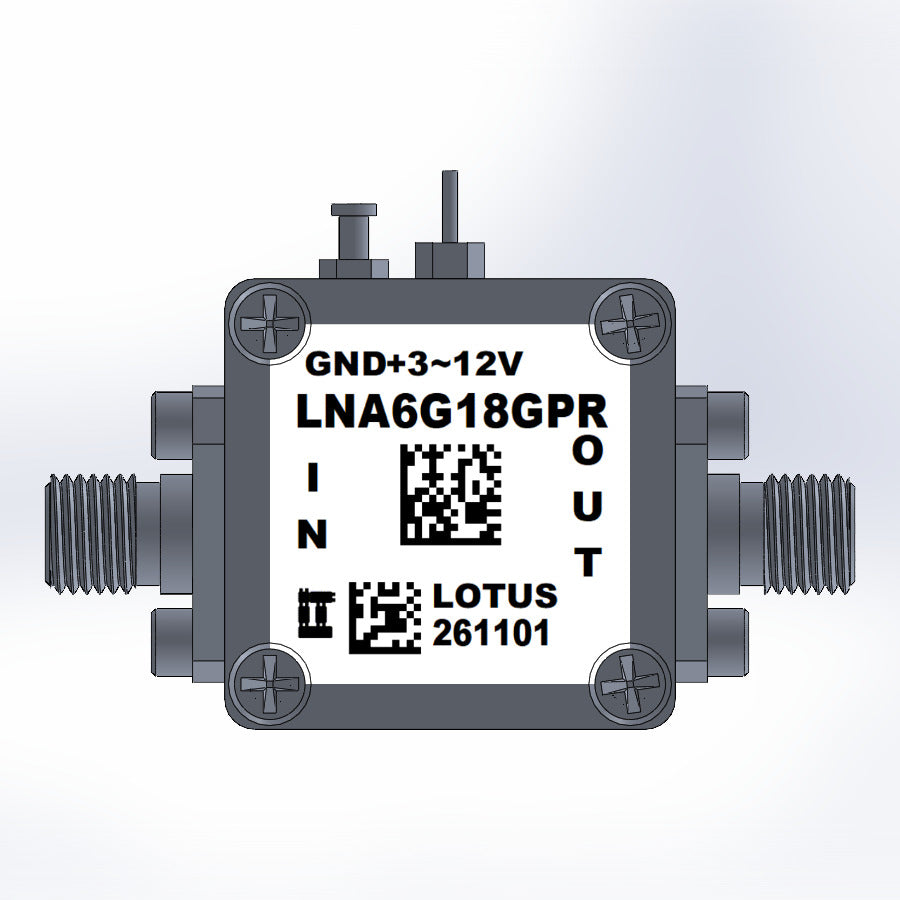

Listed pictures include Product Picture and S Parameter from 6G to 18GHz.
Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com). SKU#: AK20-016G.
Features
- Frequency Range: 6 GHz to 18 GHz
- Excellent Noise Figure: typical 1.2 dB @ 15 GHz
- Positive Gain Slope: 21dB @ 12 GHz
- High Directivity: 33 dB Typ.
- Output P1dB: 10 dBm
- Output IP3: 22 dBm
- DC Voltage: +3~12V with Operating Current: 58mA
- EMI Shield & Waterproof Option Available (PN#: LNA6G18GPRW)
- Stainless Steel SMA Female Connector
- ROHS Compliant
Applications
- General Purpose Wireless
- Mobile Infrastructure
- Radar * VSAT
- SDR & Ham Radio
- Test Instrumentation
