Low Noise Amplifier 2.5dB NF 6GHz to 20GHz 22dB Gain 11dBm P1dB SMA
$ 328.00 USD

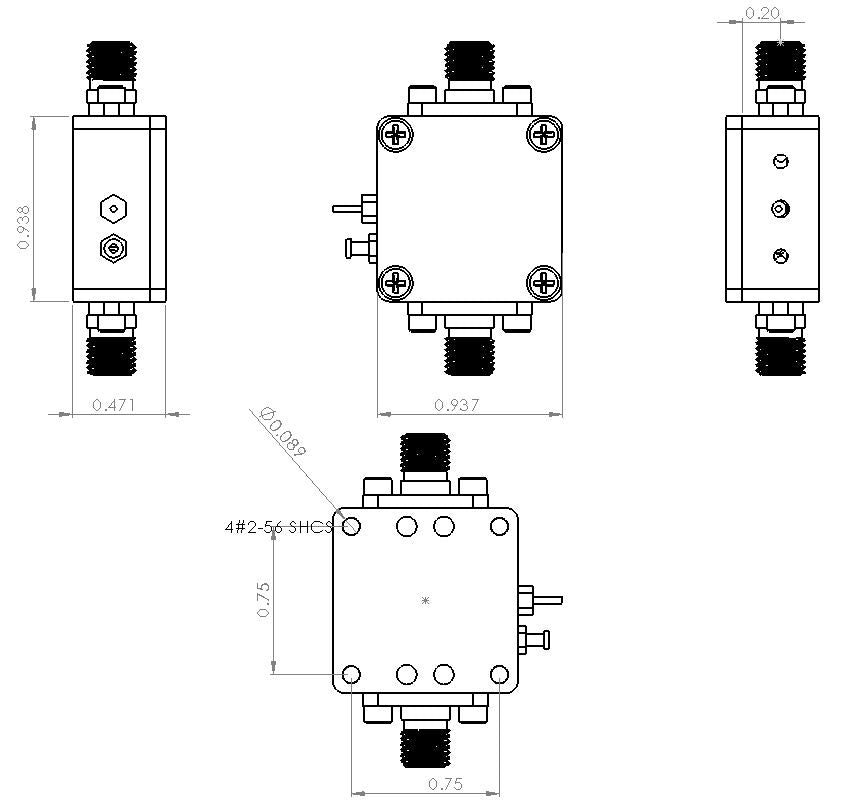

PN#: LNA6G20G is a broadband, MMIC low noise amplifier with 22 dB typical gain from 6 to 20 GHz in a small 15/16”x15/16”x0.59” shielded RF enclosure (PN: 6UDD2W6S1A2). Its output 1dB compression point is +11dBm and third order linearity (OIP3) is typically 21 dBm. It has excellent Gain Flatness (+22dB Gain) between 6-20 GHz (+/-2dB).

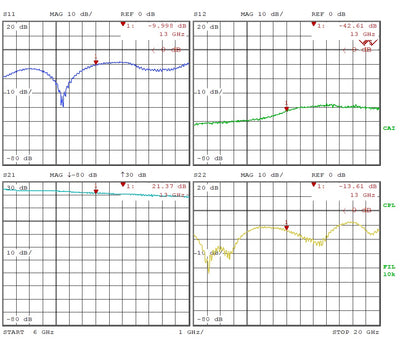

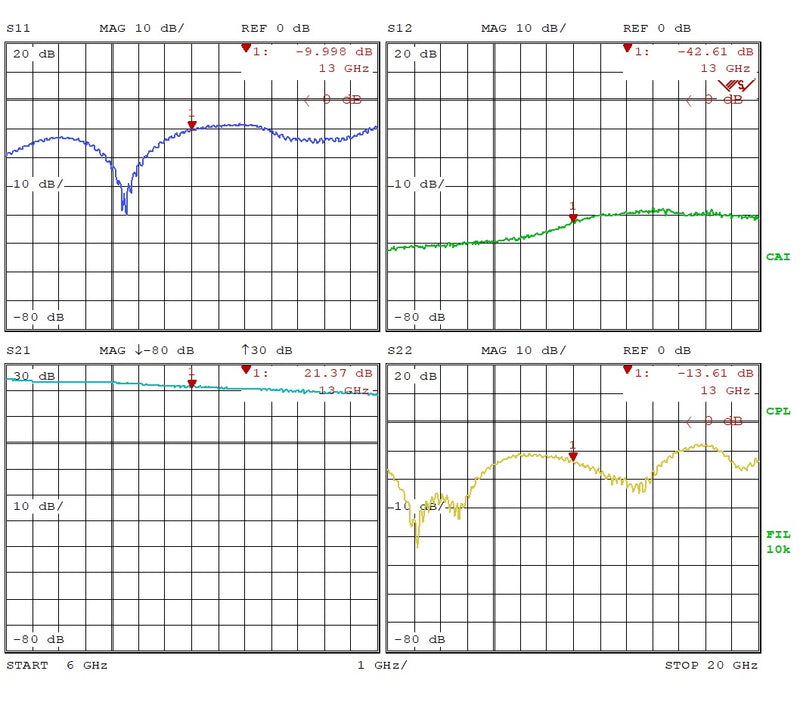

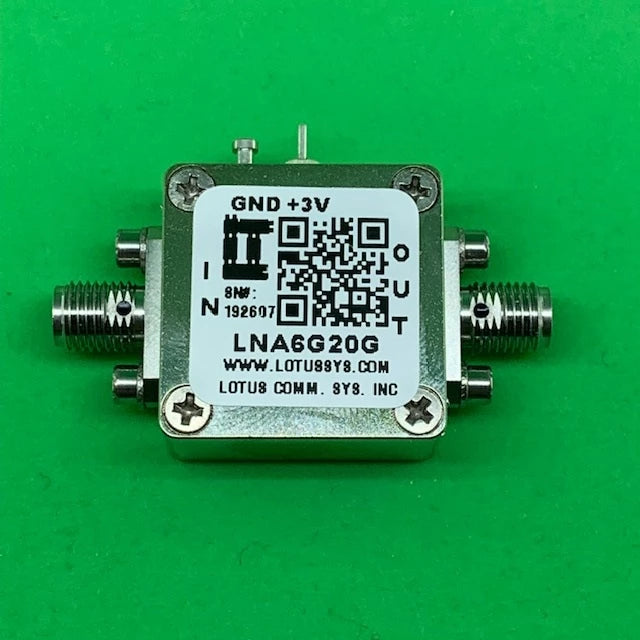

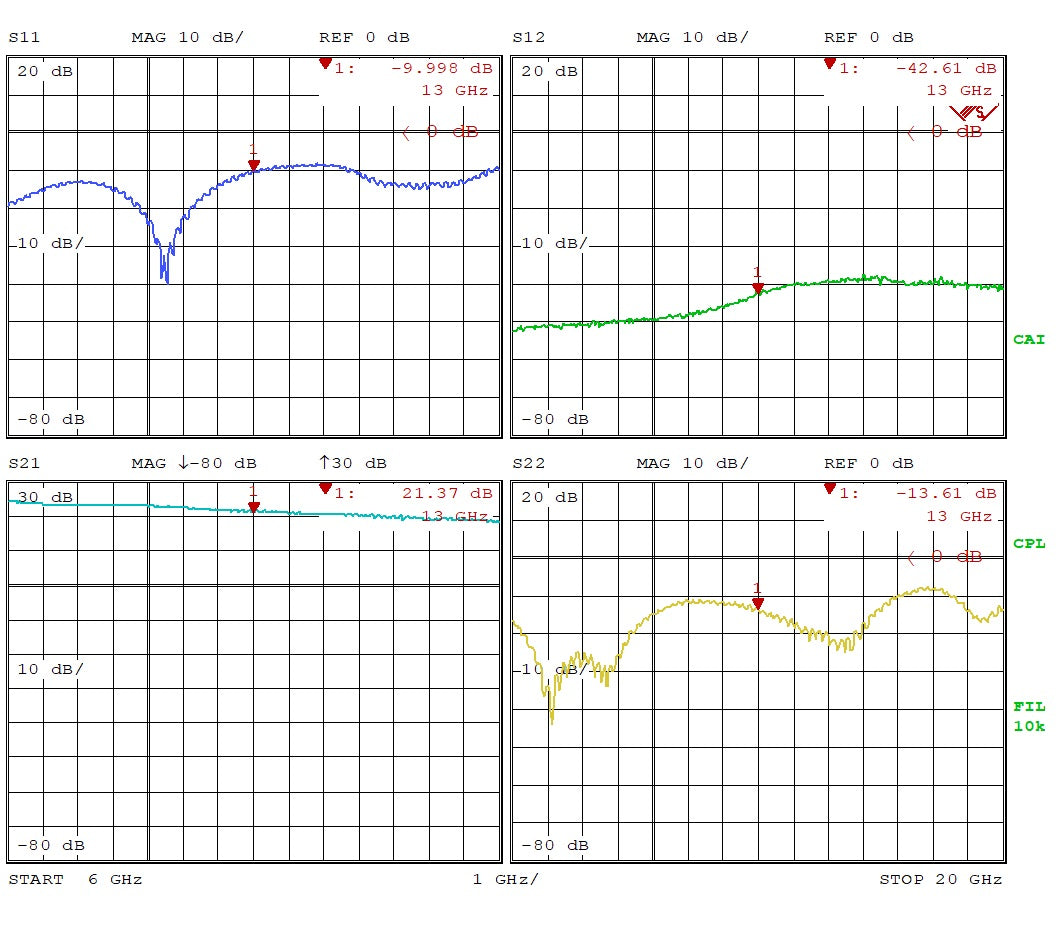

Listed pictures include Product Picture and S Parameter from 6 to 20GHz.
Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com). SKU#: AK20-002E.
Features
- Frequency Range: 6GHz to 20GHz
- Noise Figure: typical 2.5dB @ 10 GHz
- Gain: typical 22B @ 10 GHz
- Output P1dB: 11 dBm
- Output IP3: 21 dBm
- DC Voltage: +3V
- Operating Current: 52mA
- Stainless Steel SMA Female Connector
- High Quality Rogers RO4350 RF PCB
- ROHS Compliant
Applications
- Test Instrumentation
- Wideband A/D System
- General Purpose Wireless
- Radar & VSAT
- SDR & Ham Radio
Resources (PDF Datasheet)
LNA6G20G Datasheet
