Oscillator OCXO (Stratum 3) 10MHz (±25 ppb) (Wide Voltage Range +4~12V)

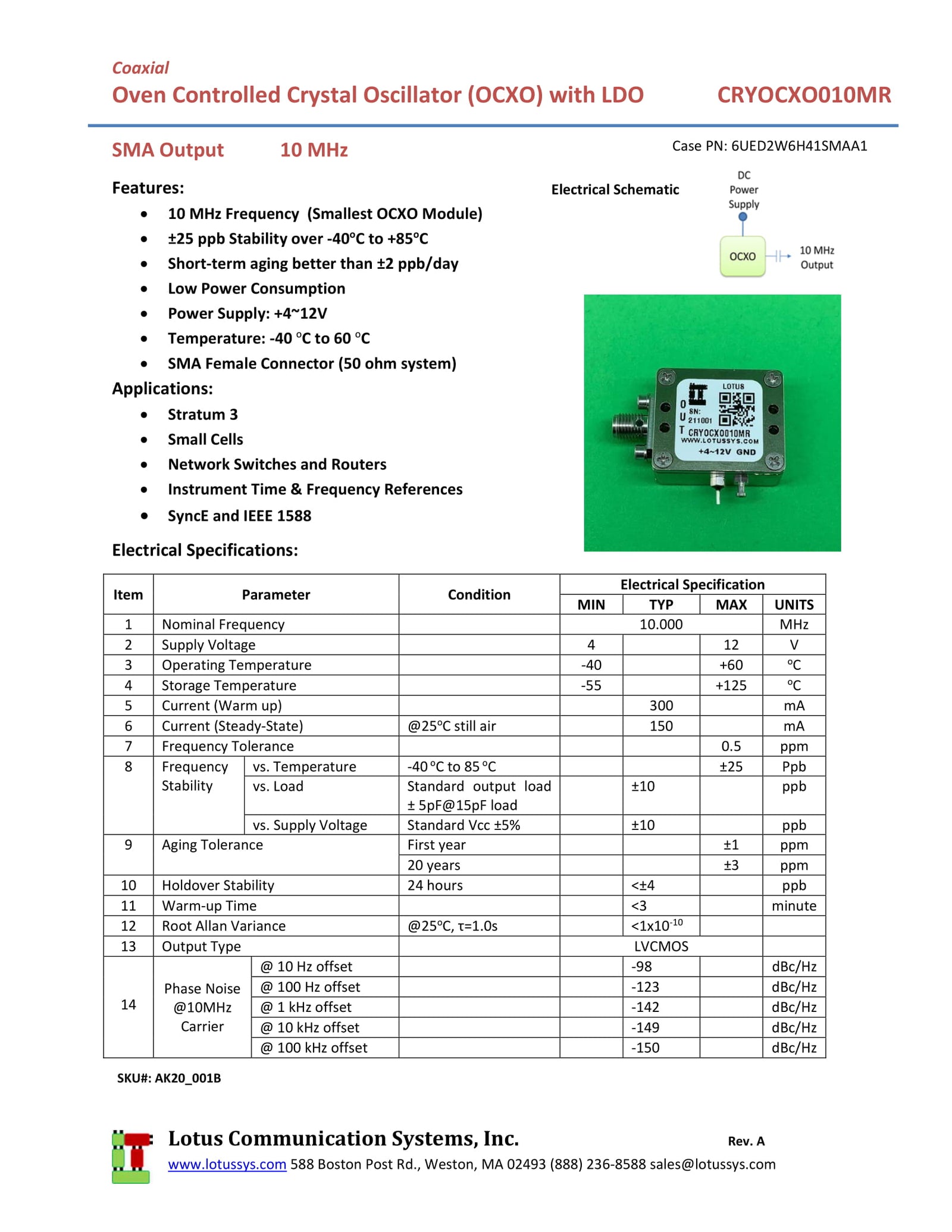

Part Number: CRYOCXO010MR Precision OCXO (Stratum 3) with 10 MHz output. It has superior +/-25 ppb over temperature -40°C to +85°C.  It has wide operation voltage from +4 to +12V.

It can be used for GPS/GNSS, base station, small cell, and smart grid applications with an outstanding short-term and long-term frequency stability performance.

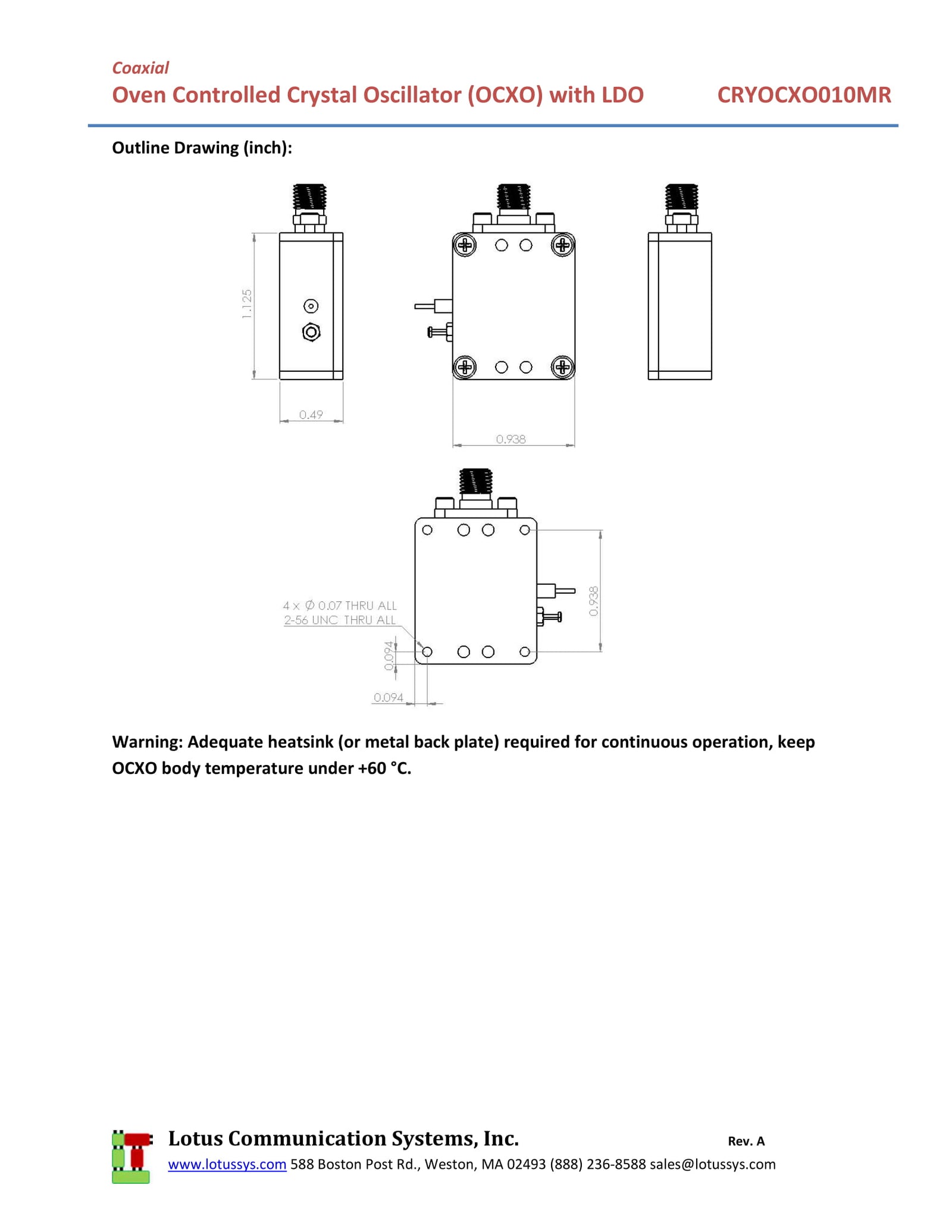

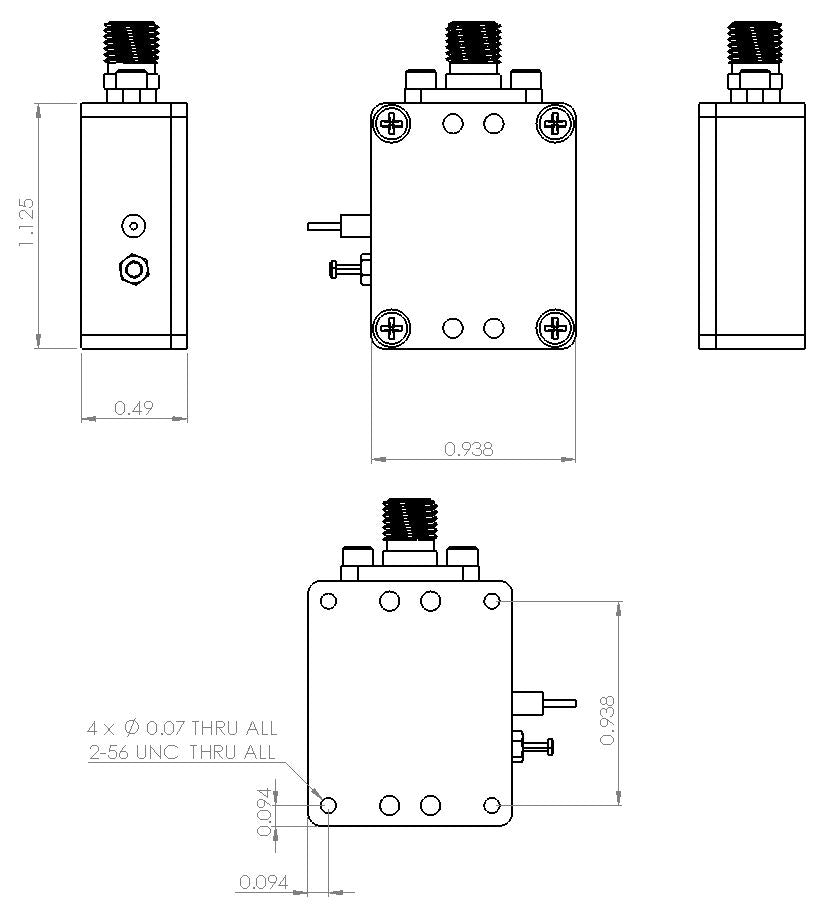

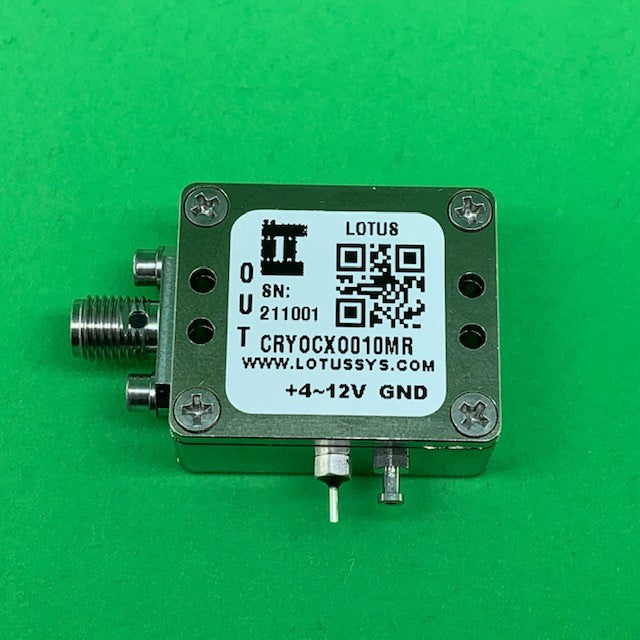

Enclosure is using RF Design Kit 6UED2W6H41SMAA1 (only one SMA output) with dimension 1.125"x0.9375x0.59". This OCXO Module includes the RF Enclosure as shown in picture. SKU#: AK20-001B.

Proudly Made in USA by Lotus Communication Systems, INC. in Weston, MA.
