6UDD2W6H41SMAA2 Enclosure Kit for 0.020"/0.5mm PCB (9/16"x9/16") 2 SMA Active 0.48" Height
$ 106.00 USD

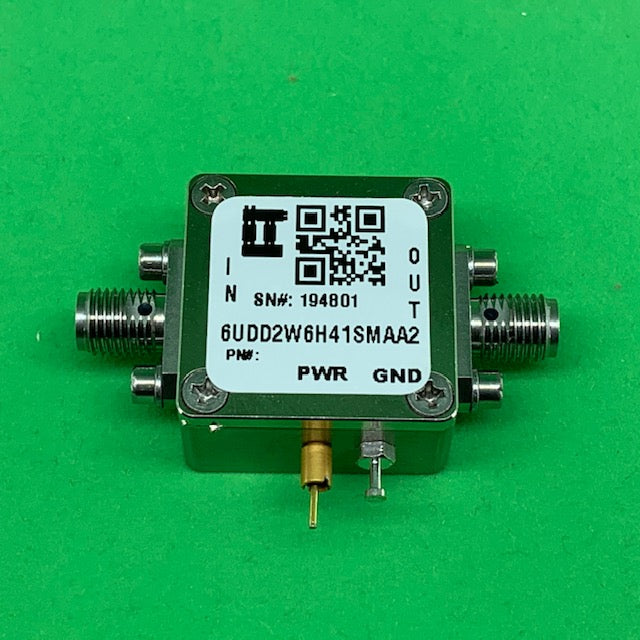

Part Number: 6UDD2W6H41SMAA2 is RF Designer Kit is for prototyping with PCB size 9/16"x9/16"x0.020"(or 0.5mm).

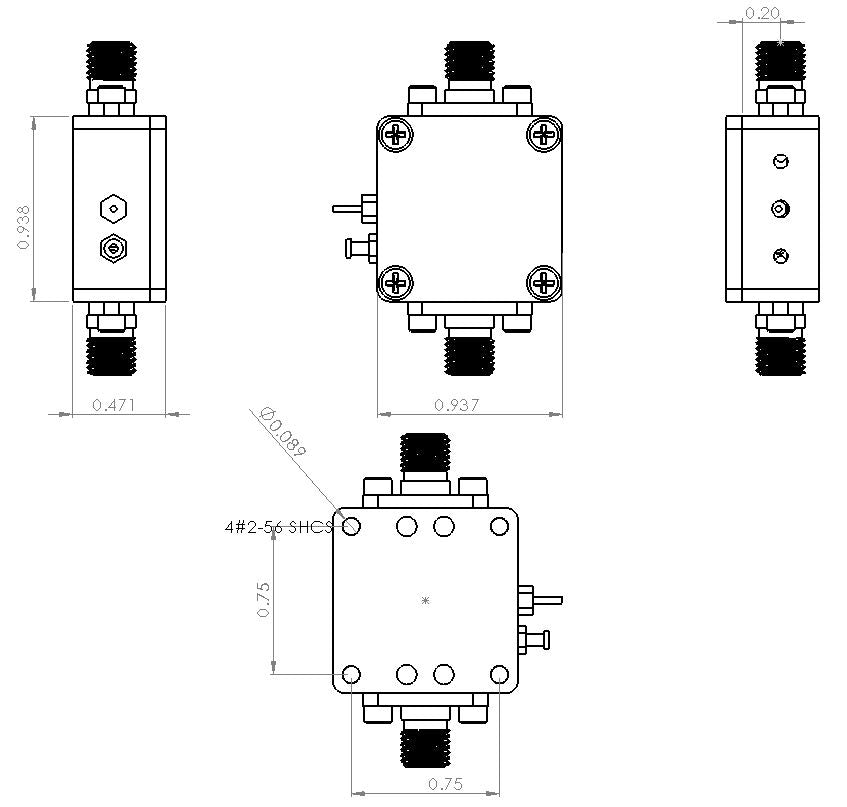

RF Housing Size: 5Ux5U (15/16"x15/16"). Each U is 3/16". Housing height: 0.41" (without Cover). The PCB mounting hole spacing is 0.375" and 0.375" respectively. PCB Inside Clearance to Enclosure Cover is 0.19". SKU#: AK20-008Q.
Proudly Made in USA by Lotus Communication Systems, INC. in Weston, Massachusetts.
RF Kit include (PCB is not included):
- All CNC Machined Housing and Cover, 1 ea
- SMA 2-Hole Flange Jack Receptacle Connector, 0.086", 0.012" Pin, 2 ea
- EMI Feedthrough Cap #2-56, 100V/5A, 1ea
- Ground Solder Terminal #2-56, 1 ea
- 2-56x3/16" SHCS, 4 for SMA Connector
- 2-56x5/32" SHCS, 4 for PCB
- 2-56x3/16" Flat Head Screw (for Cover), 4 ea
Features

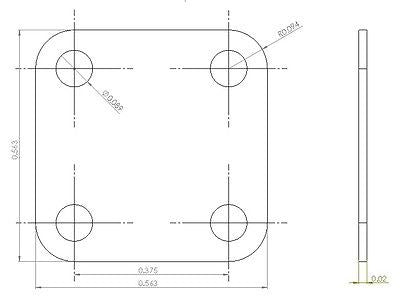

- Hold PCB Size 9/16"x9/16"x0.020" (or 0.5mm)
- Clearance from PCB top to Enclosure Cover (0.19")
- All CNC Machined Surface for Superior Finish and Minimize RF Leakage
- 4 Installation Holes to Mount Kit to Back Board with #2 SHCS
- 3/16" Wall Thickness for Strong Mechanical Strength
- Two SMA Connectors
- Electroless Nickel Plating per MIL-C-26074, ASTMB 733
- Professional Zebra Ultimate Label for Outdoor Usage
- Proudly MADE IN USA (Material & Labor)
- ROHS Compliant
Applications
- Cell
- Microwave Radio
- Test Instrumentation
- SDR & Ham Radio
Resources
6UDD2W6H41SMAA2 Datasheet
