RF Enclosure Kit for 0.020"/0.5mm PCB (size 9/16"X9/16") Passive 2.92mm Connector
$ 196.00 USD

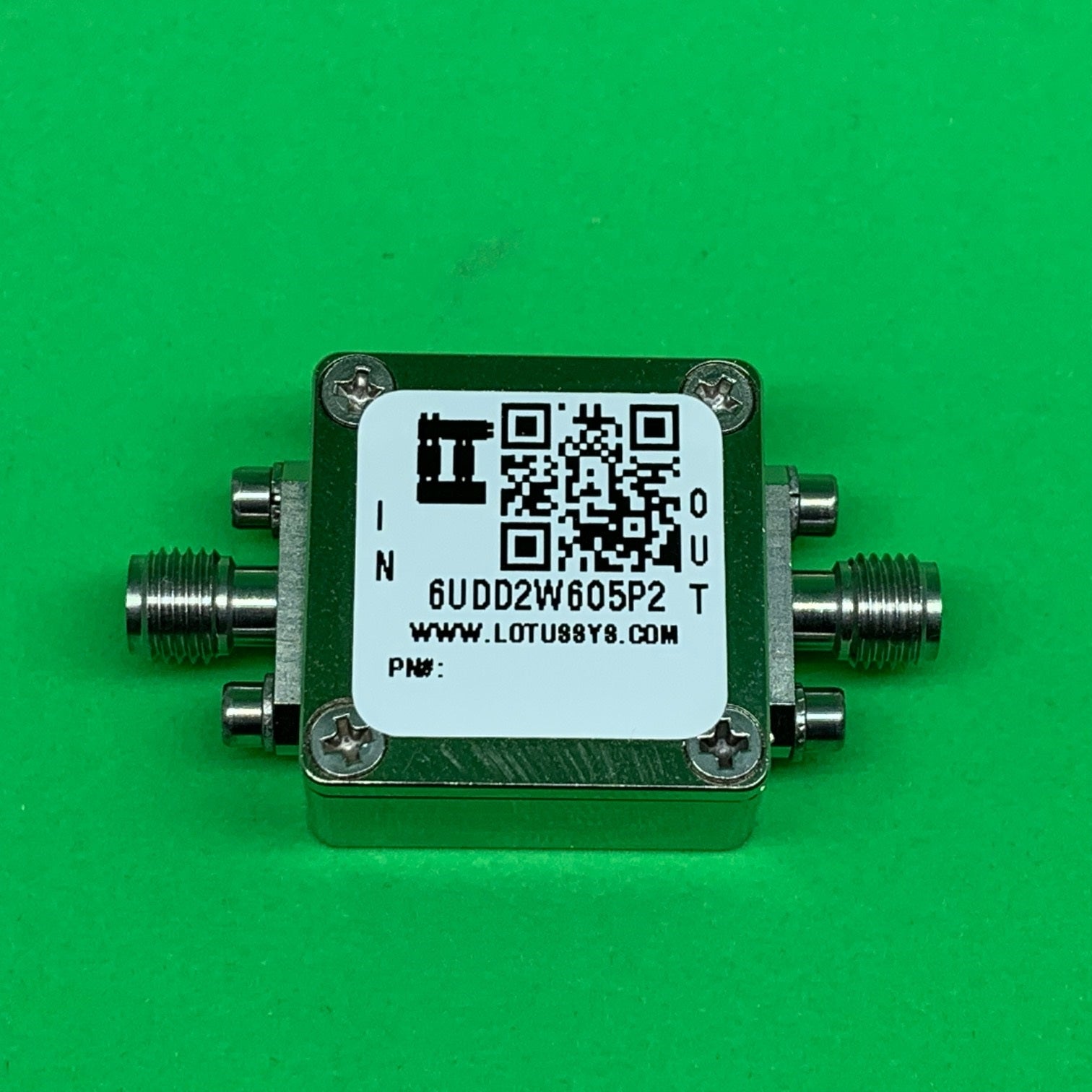

Part Number: 6UDD2W6O5P2 is RF Designer Kit for RF prototyping with PCB size of the Rogers PCB (RO4350) or FR4 9/16"x9/16"x0.02"(or 0.5mm).

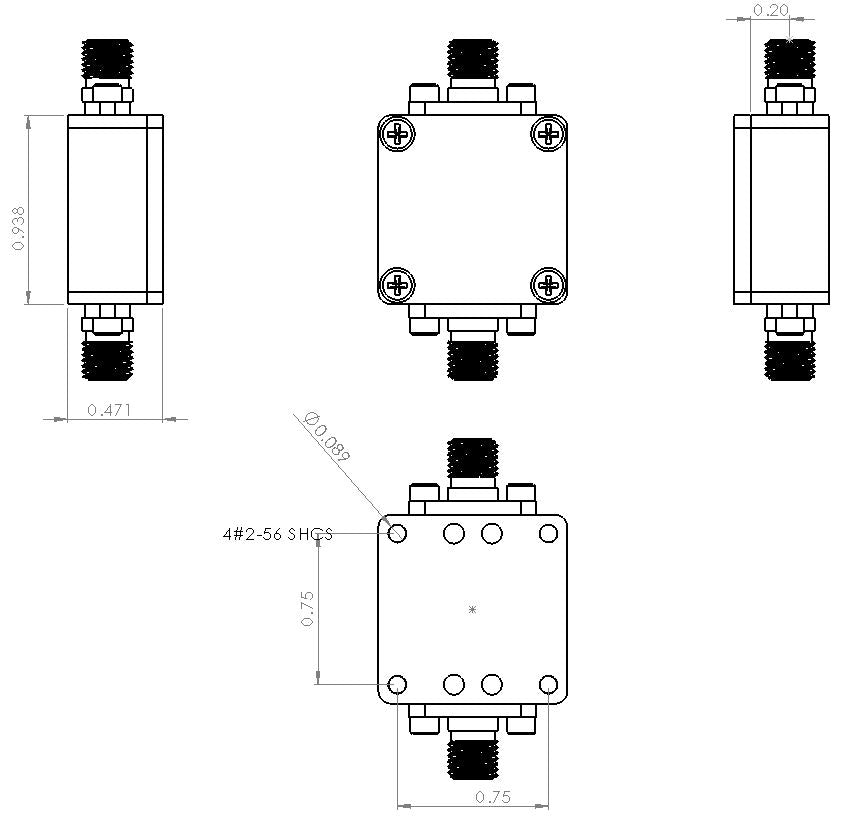

RF Housing Size: 5Ux5U (15/16"x15/16"). Each U is 3/16". Housing height: 0.47". The PCB mounting hole spacing is 0.375" and 0.375" respectively. PCB Inside Clearance to Enclosure Cover is 0.20". This Enclosure is ideal to hold passive PCB circuit (e.g., Filter, Attenuator etc.). SKU#: AK20-004G.
RF Kit include (PCB is not included):
- All CNC Machined Housing and Cover, 1 ea
- 2.92mm 2-Hole Flange Jack Receptacle Connector, 0.083", 0.012" Pin, 2 ea
- 2-56x3/16 SHCS, 4 for SMA Connector
- 2-56x5/32 SHCS, 4 for PCB
- 2-56x3/16 Flat Head Screw (for Cover), 4 ea
Features

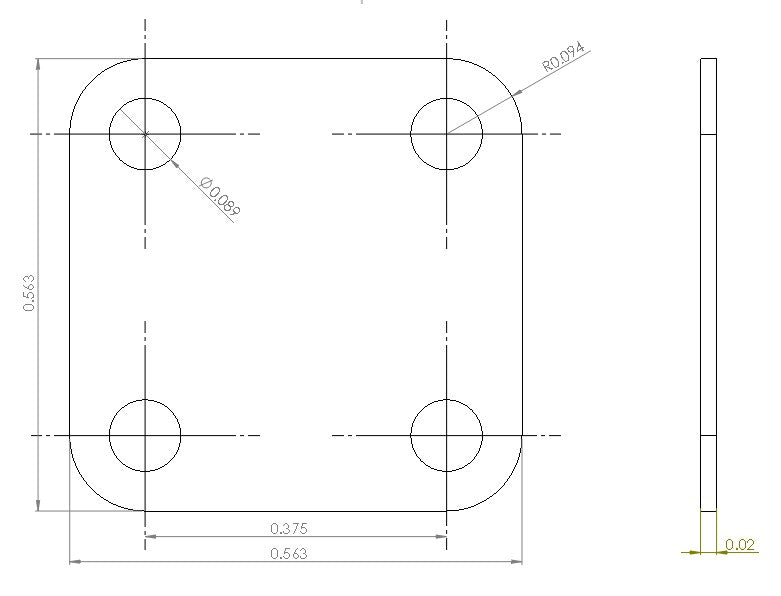

- Hold PCB Size 9/16"x9/16"x0.020" (or 0.5mm)
- All CNC Machined Surface for Superior Finsh and Minimize RF Leakage
- 4 Installation Holes to Mount Kit to Back Board with #2 SHCS
- 3/16" Wall Thickness for Strong Mechanical Strength
- Two Female 2.92mm Connector Frequency Range DC-40 GHz
- Electroless Nickel Plating per MIL-C-26074, ASTMB 733
- Professional Zebra Ultimate Label for Outdoor Usage
- Proudly MADE IN USA (Material & Labor)
- ROHS Compliant
Applications
- Cell
- Microwave Radio
- Test Instrumentation
- SDR & Ham Radio
Resources
6UDD2W6O5P2 Datasheet
