4 Channel 96 dB Programmable Attenuator (USB-C), 0.25 dB Step, 9K-8GHz
$ 4,126.00 USD

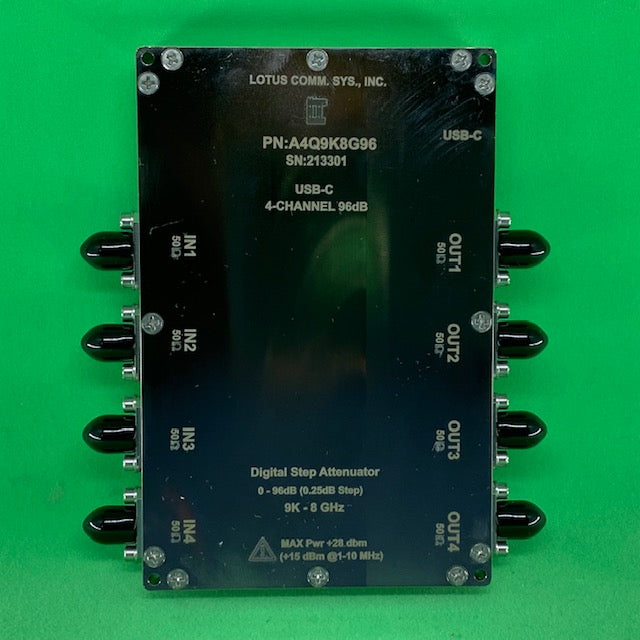

Part Number: A4Q9K8G96 is a general purpose, four channel programmable attenuator suitable for wide range of signal level control applications from 9K to 8 GHz. The Attenuator provides 0 to 95.25 dB attenuation in 0.25 dB steps.

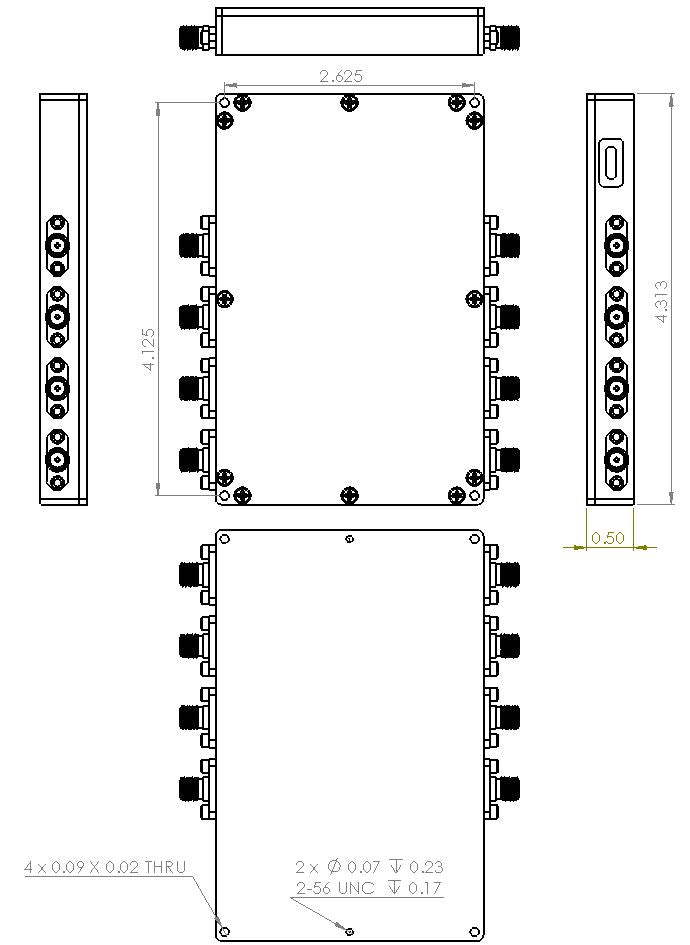

The Attenuator is housed in an ultra-compact and rugged enclosure with four SMA Female connectors. The attenuator can be controlled via USB. Full software supported with our user-friendly GUI application for Windows and Linux.
It uses USB Type C connector for power and control.
Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).
Features
- Four Channels
- Frequency Range: 9K to 8G Hz
- Wide Attenuation Range: 95.25 dB
- Fine Attenuation Resolution: 0.25 dB
- Short Attenuation Transition Time (500 ns)
- Stainless Steel SMA Female Connector
- High Quality Rogers RO4350 RF PCB
- Electronless Nickel Plating and Permanent Laser Marking
- USB Control
- ROHS Compliant
Applications
- Test Instrumentation
- Automated Test Equipment
- General Purpose Wireless
- Radar & VSAT
- SDR & Ham Radio

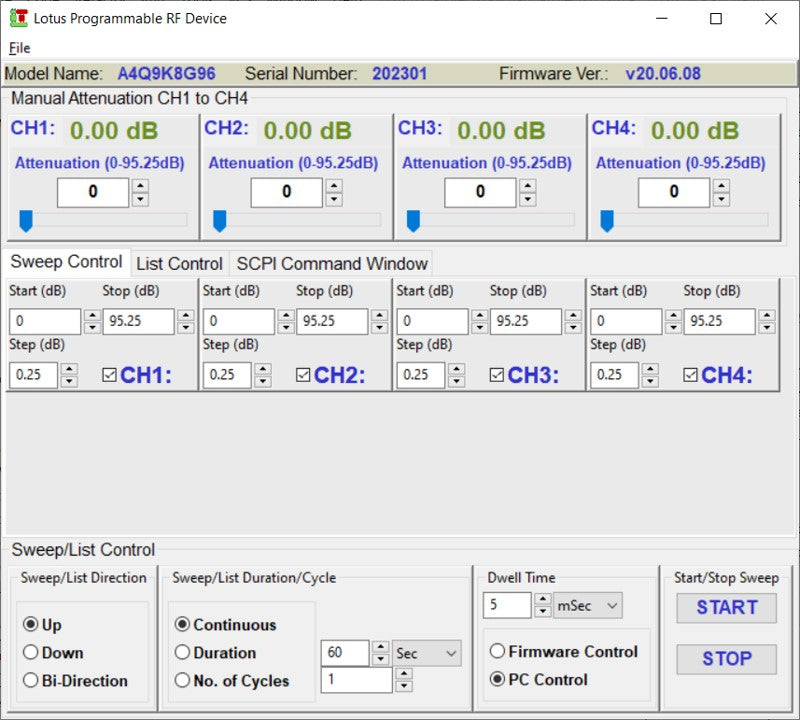

Self-Executable GUI SW Download
