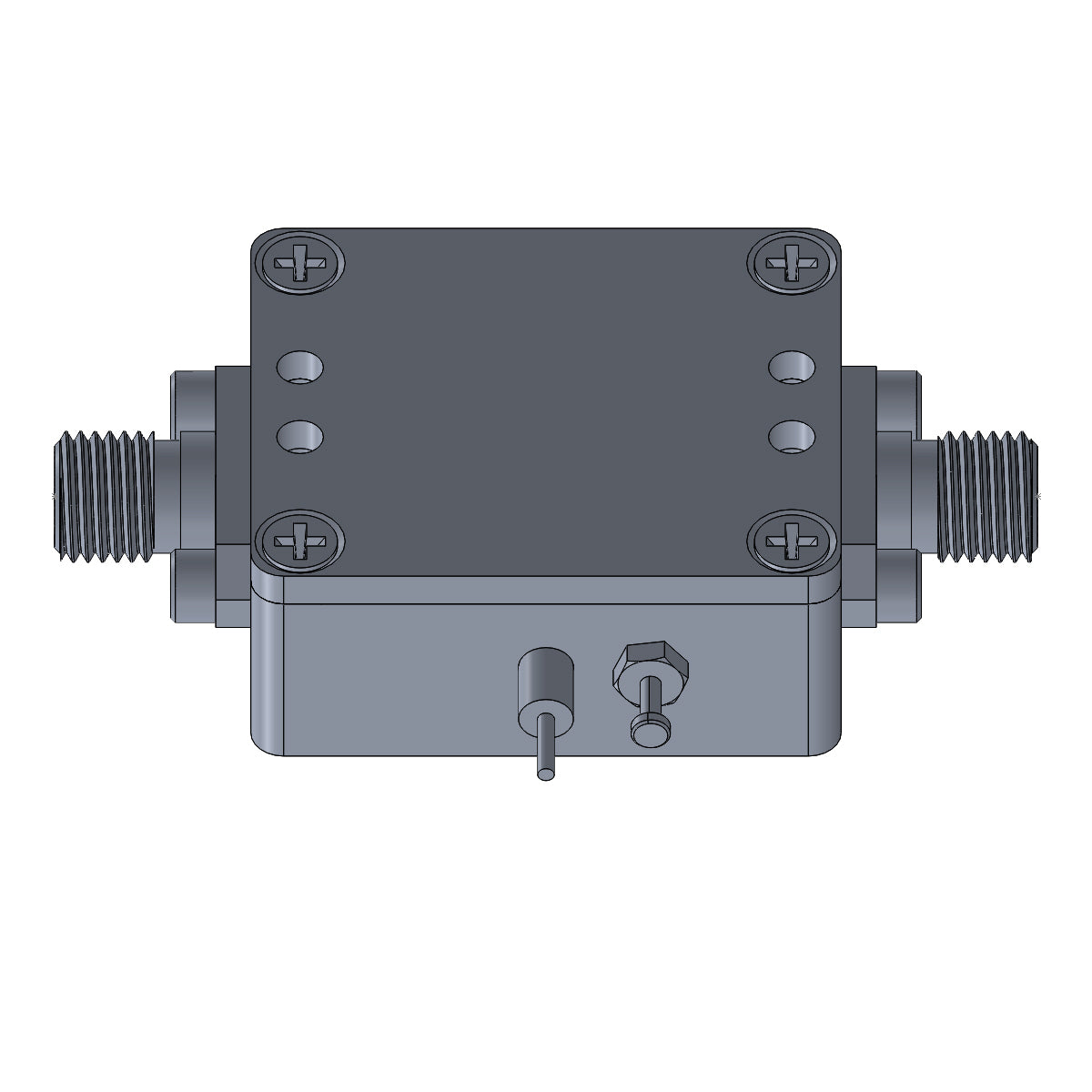

6UED6W6H41SMAA2 Enclosure Kit for 0.062"/1.6mm PCB (size 3/4"x9/16") 2 SMA Active 0.48" Height
$ 146.00 USD
Part Number: 6UED6W6H41SMAA2 is RF Designer Kit is for RF prototyping with PCB size of the Rogers PCB (RO4350 or FR4) 3/4"x9/16"x0.062"(or 1.6mm) for 2 Ports.

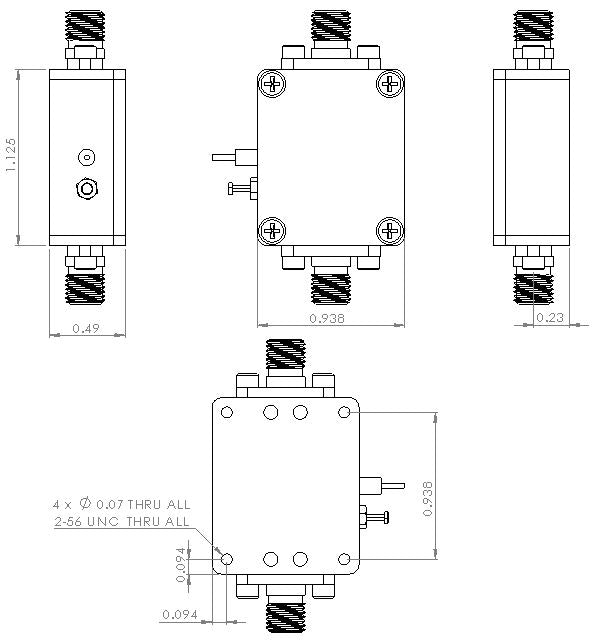

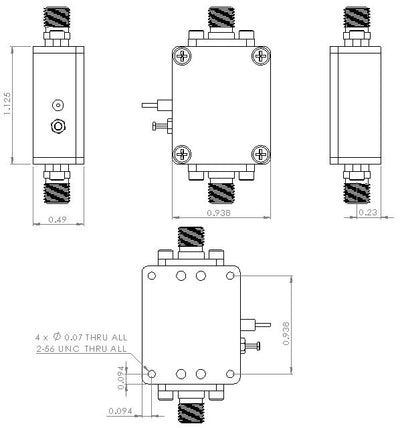

RF Housing Size: 6Ux5U (1-1/8"x15/16"). Each U is 3/16". Housing height: 0.41" (without Cover). The PCB mounting hole spacing is 0.563" and 0.375" respectively. PCB Inside Clearance to Enclosure Cover is 0.19". SKU#: AK20-008G.
Proudly Made in USA by Lotus Communication Systems, INC. in Weston, Massachusetts.
RF Kit include (PCB is not included):
- All CNC Machined Housing and Cover, 1 ea
- SMA 2-Hole Flange Jack Receptacle Connector, 0.086", 0.012" Pin, 2 ea
- EMI Feedthrough Cap #2-56, 100V/5A, 1ea
- Ground Solder Terminal #2-56, 1 ea
- 2-56x3/16" SHCS, 6 for SMA Connector
- 2-56x5/32" SHCS, 6 for PCB
- 2-56x3/16" Flat Head Screw (for Cover), 4 ea
Features
- Hold PCB Size 3/4"x9/16"x0.062" (or 1.6mm)
- Clearance from PCB top to Enclosure Cover (0.19")
- All CNC Machined Surface for Superior Finish and Minimize RF Leakage
- 4 Installation Holes to Mount Kit to Back Board with #2 SHCS
- 3/16" Wall Thickness for Strong Mechanical Strength
- Two SMA Connectors
- Electroless Nickel Plating per MIL-C-26074, ASTMB 733
- Professional Zebra Ultimate Label for Outdoor Usage
- Proudly MADE IN USA (Material & Labor)
- ROHS Compliant
Applications
- Cell
- Microwave Radio
- Test Instrumentation
- SDR & Ham Radio
Resources
6UED6W6H41SMAA2 Datasheet
