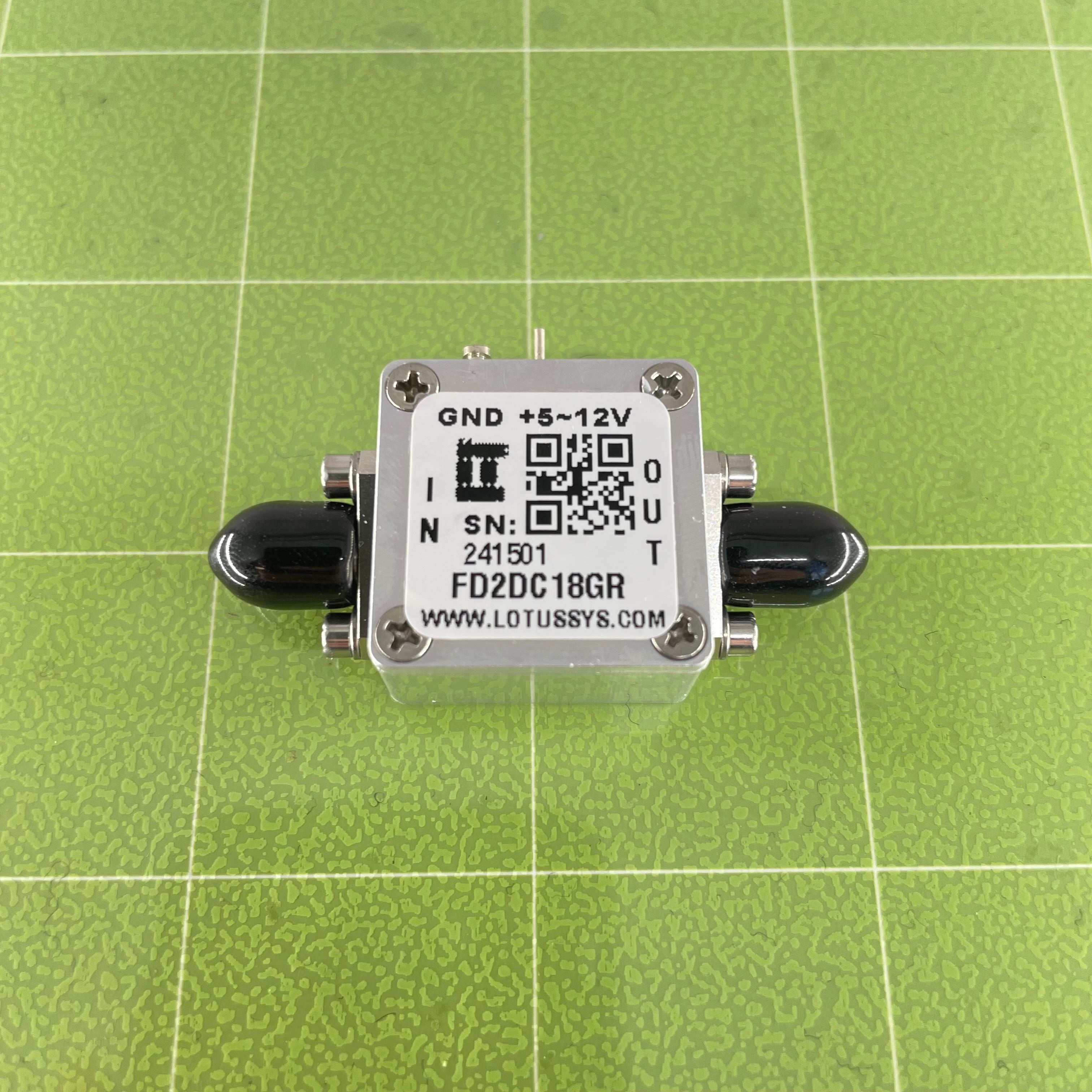

Frequency Divider/Prescaler Divide by 2 (DC to 18 GHz) Wide Voltage FD2DC18GR
$ 438.00 USD - $ 528.00 USD
Part Number: FD2DC18GR is a Divide by M=2 Frequency divider with input frequency range from frequency DC to 18 GHz with a single +5V~12V DC Supply. The low additive SSB Phase Noise of -150 dBc/Hz at 100 kHz offset helps the user maintains good system noise performance. Enclosure is using RF Design Kit 6UDD2W6H41SMAA2 with dimension 0.9375"x0.9375x0.49".
Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).
SKU#: AK20-020M.
Features
- Frequency Range: DC to 18 GHz
- Divide by M: (M=2)
- Operating Temperature -40 to +85C
- Input Power Range: Min. -15 dBm, Max. +10 dBm
- Supply current (Icc) typical 78 mA
- Wide Supply Voltage Vcc=+5V~12V
- High Quality Stainless Steel SMA Female Connector
- High Quality Rogers RO4350 RF PCB
- EMI Shield & Weatherproof Option Available ($90 Extra)
- ROHS Compliant
Applications
- Microwave Radio
- Test Instrumentation
- Satellite Communication/Software Defined Radio/Ham Radio
Resources (PDF Datasheet)
FD2DC18GR Datasheet
