Low Pass Filter (LTCC Construction) Pass Band DC-2250MHz
$ 98.00 USD
LPF2250M is a Low Pass Filter (LTCC Construction) Pass Band DC-2250 MHz. SKU#: AK28_001AA.

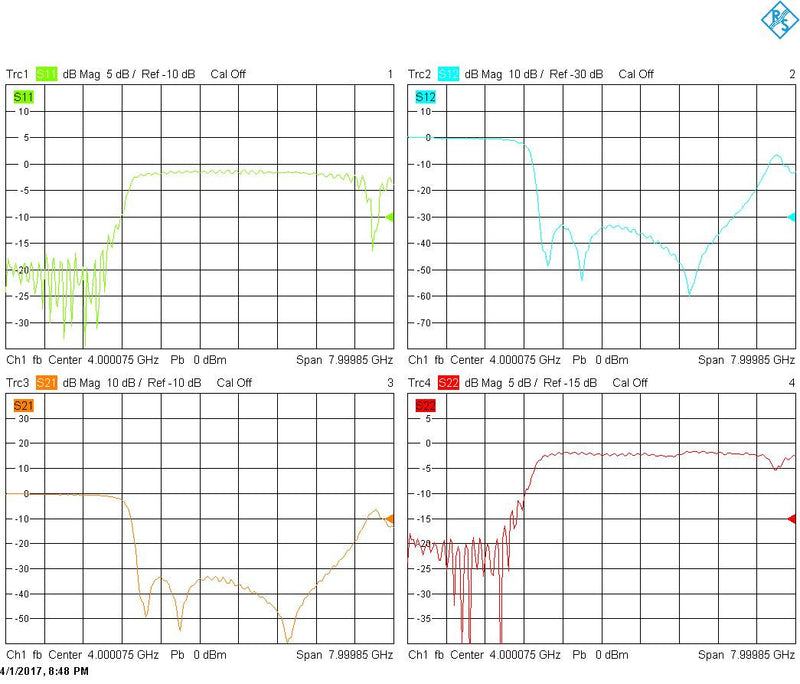

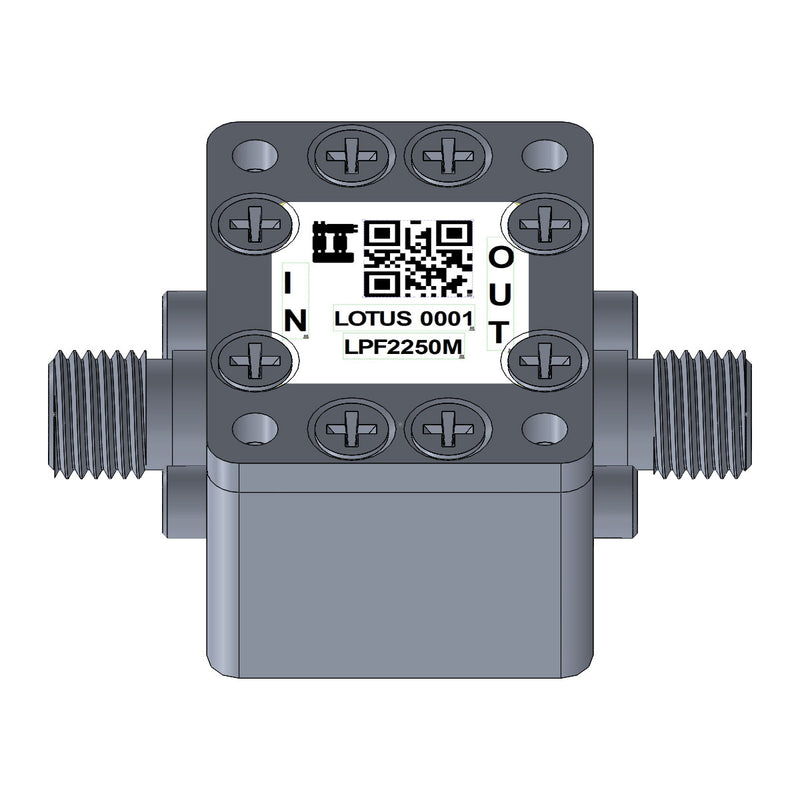

Enclosure uses RF Design Kit with dimension 0.9375"x0.75x0.59". S-Parameter of part measured on VNA (0 Hz to 8 GHz) is shown in third picture.
Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).
Features
- Operational Temperature: -55 ~ 100C
- Temperature Stable
- Cut Off Frequency: 2250M
- RF Power Input: 9W max. at 25C, derate linearly to 0.25W at 100C
- Insertion Loss in Pass Band: (1.5dB Max)
- High Quality SMA Female Connector
- High Quality Rogers RO4350 RF PCB
- ROHS Compliant
Applications
- Harmonic Rejection
- Transmitters / Receivers / SDR
- Test Instrumentation
Resources (PDF Datasheet)
LPF2250M Datasheet
