    Bias Tee Broadband 10 MHz to 18 GHz (Max. 1A) 16V DC
    Bias Tee Broadband 10 MHz to 18 GHz (Max. 1A) 16V DC
    Bias Tee Broadband 10 MHz to 18 GHz (Max. 1A) 16V DC
    Bias Tee Broadband 10 MHz to 18 GHz (Max. 1A) 16V DC
    Bias Tee Broadband 10 MHz to 18 GHz (Max. 1A) 16V DC

    Bias Tee Broadband 10 MHz to 18 GHz (Max. 1A) 16V DC

    $ 176.00 USD

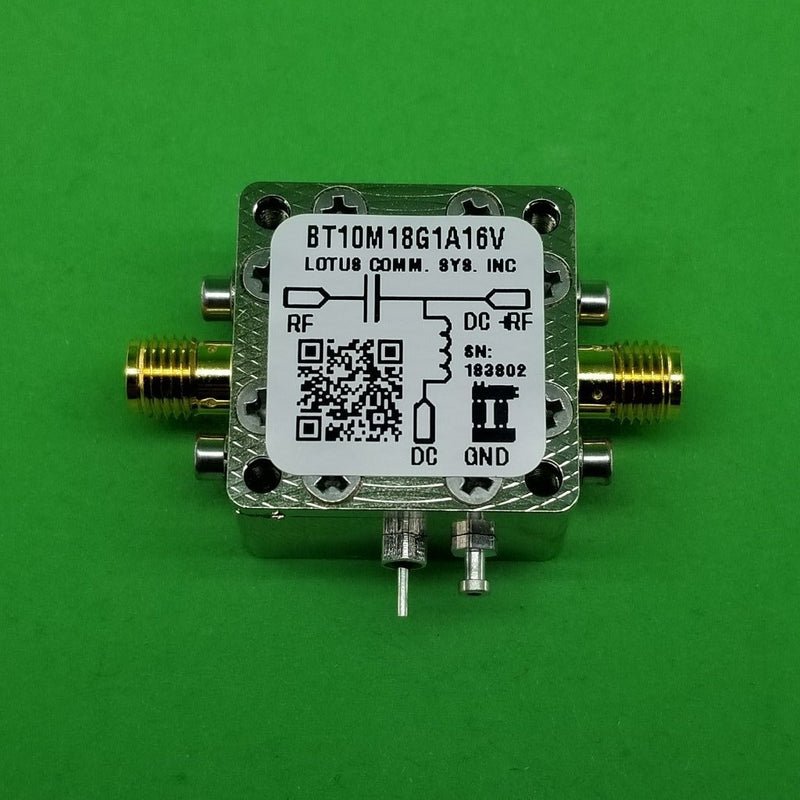

    Part Number: BT10M18G1A16V is a 50Ω Broadband Bias Tee 10 MHz to 18 GHz. It covers 10 MHz to 18 GHz and can handle maximum 1.0A current and 16V DC.

    Proudly Made in USA. SKU#: AK20-002S.

    1 item left

    Features

    • Broadband Performance 10 MHz to 18 GHz
    • Use resonance-free conical inductor
    • High quality stainless steel SMA female connector
    • High quality RO4350 RF PCB (very low loss and high thermal performance)
    • Maximum Current: 1.0A, Maximum DC Voltage: 16V
    • ROHS Compliant

    Applications

    • Biasing Amplifiers/RF circuits
    • Biasing Lasers
    • Modulators driven with high frequency data patterns
    • Test Instrumentation
    • SDR & Ham Radio

    Resources

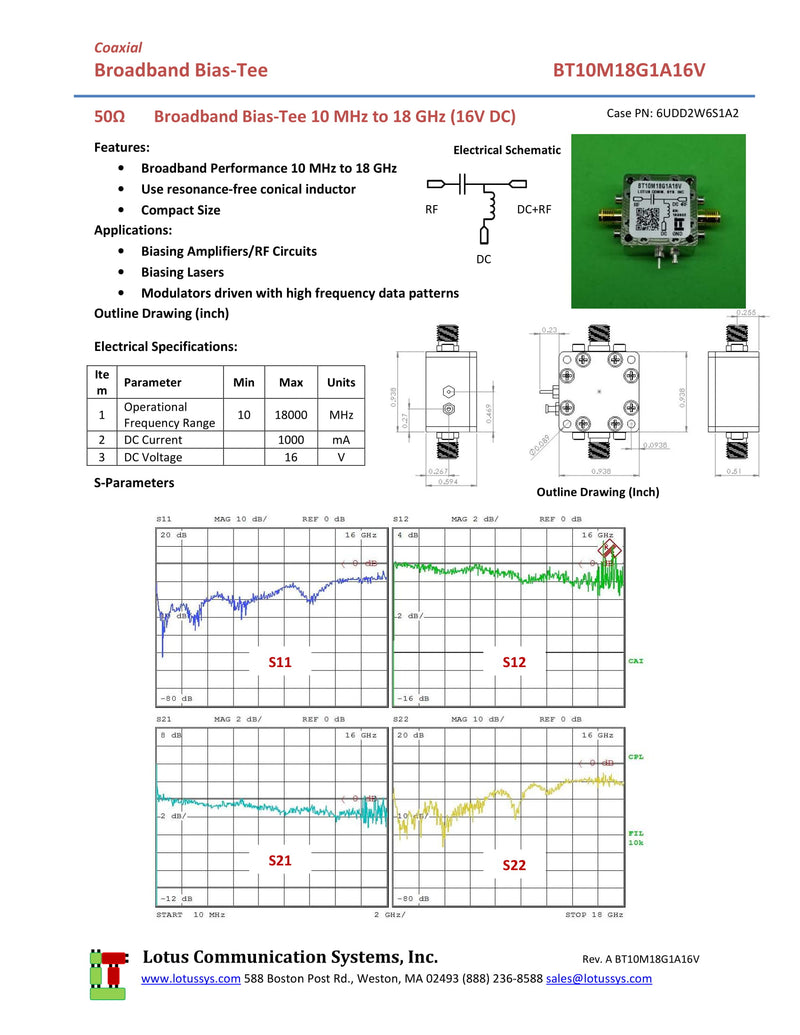

    http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png BT10M18G1A16V Datasheet
