    Directional Coupler 600 MHz to 900 MHz 5dB 70W Low Insertion Loss
    Directional Coupler 600 MHz to 900 MHz 5dB 70W Low Insertion Loss
    Directional Coupler 600 MHz to 900 MHz 5dB 70W Low Insertion Loss

    Directional Coupler 600 MHz to 900 MHz 5dB 70W Low Insertion Loss

    $ 108.00 USD

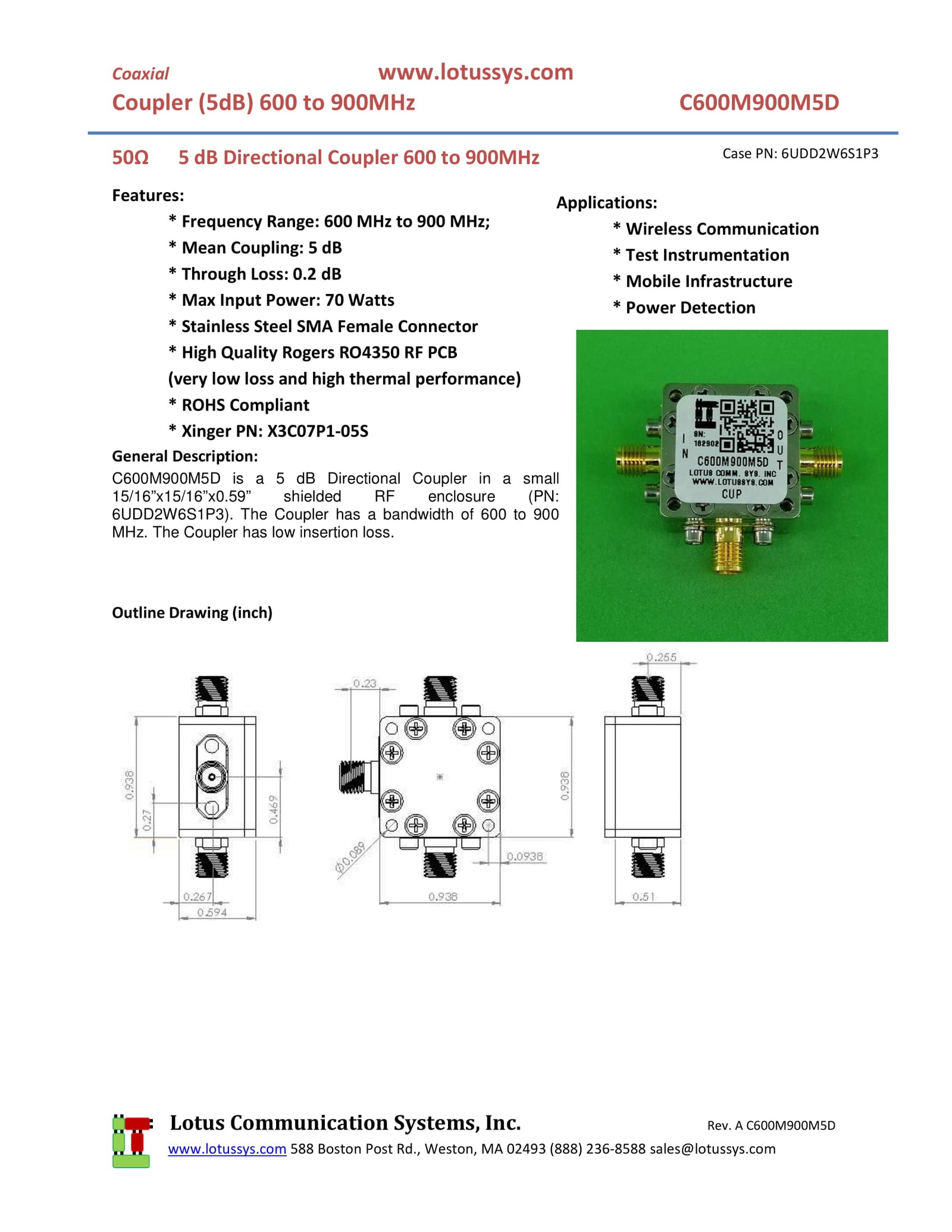

    C600M900M5D is a 5 dB Directional Coupler in a small 15/16”x15/16”x0.59” shielded RF enclosure (PN: 6UDD2W6S1P3). The Coupler has a bandwidth of 600 to 900 MHz. The Coupler has low insertion loss.

    SKU#: AK20-003A

    Features:
        * Frequency Range: 600 MHz to 900 MHz;
        * Mean Coupling: 5 dB
        * Through Loss: 0.2 dB
        * Maximum Input Power: 70 Watts
        * Stainless Steel SMA Female Connector
        * High Quality Rogers RO4350 RF PCB
        (very low loss and high thermal performance)
        * ROHS Compliant
        * Xinger PN: X3C07P1-05S

    Applications:
        * Wireless Communication
        * Test Instrumentation
        * Mobile Infrastructure
        * Power Detection

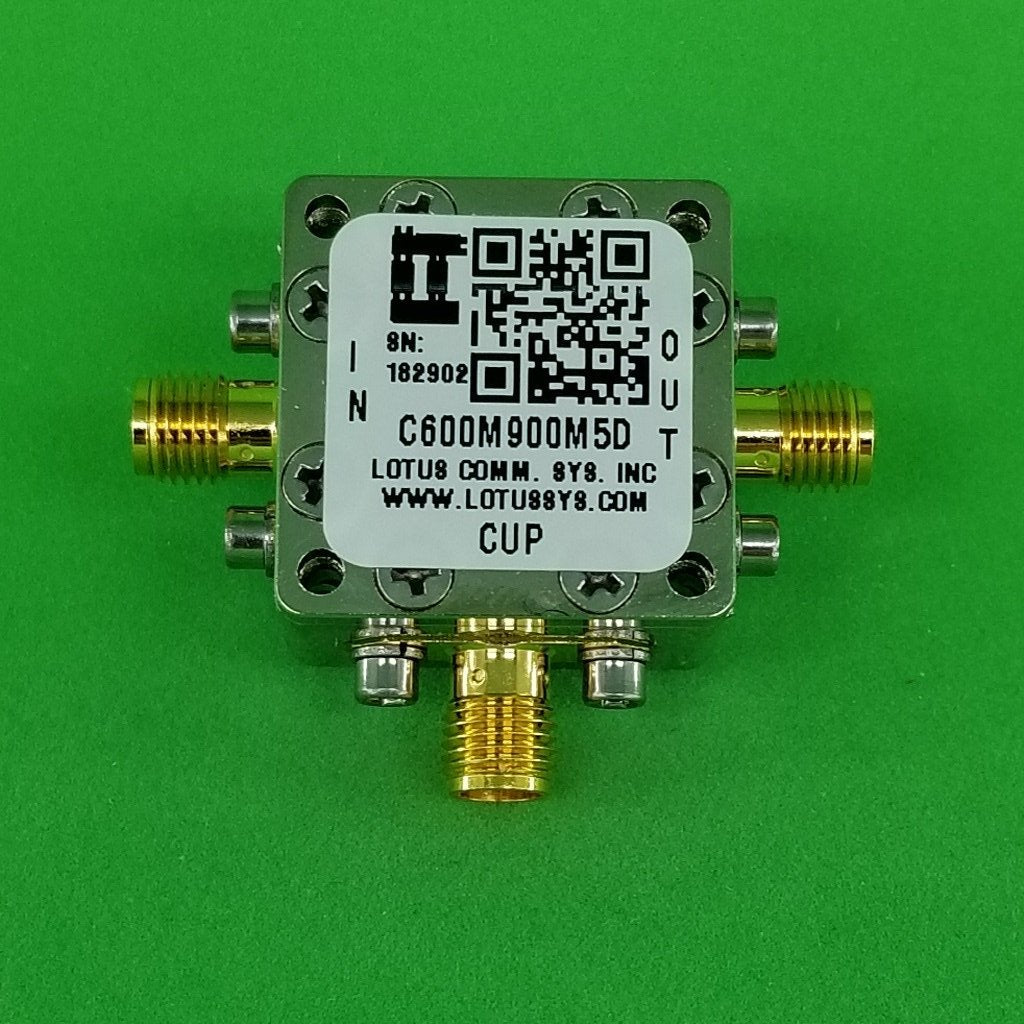

    This Directional Coupler includes the RF Enclosure as shown in picture.

    Proudly MADE IN USA by Lotus Communication Systems, INC. in Massachusetts.
