Distribution 4 Outputs 1 Input (Wide Voltage +5~12V)
$ 554.18 USD

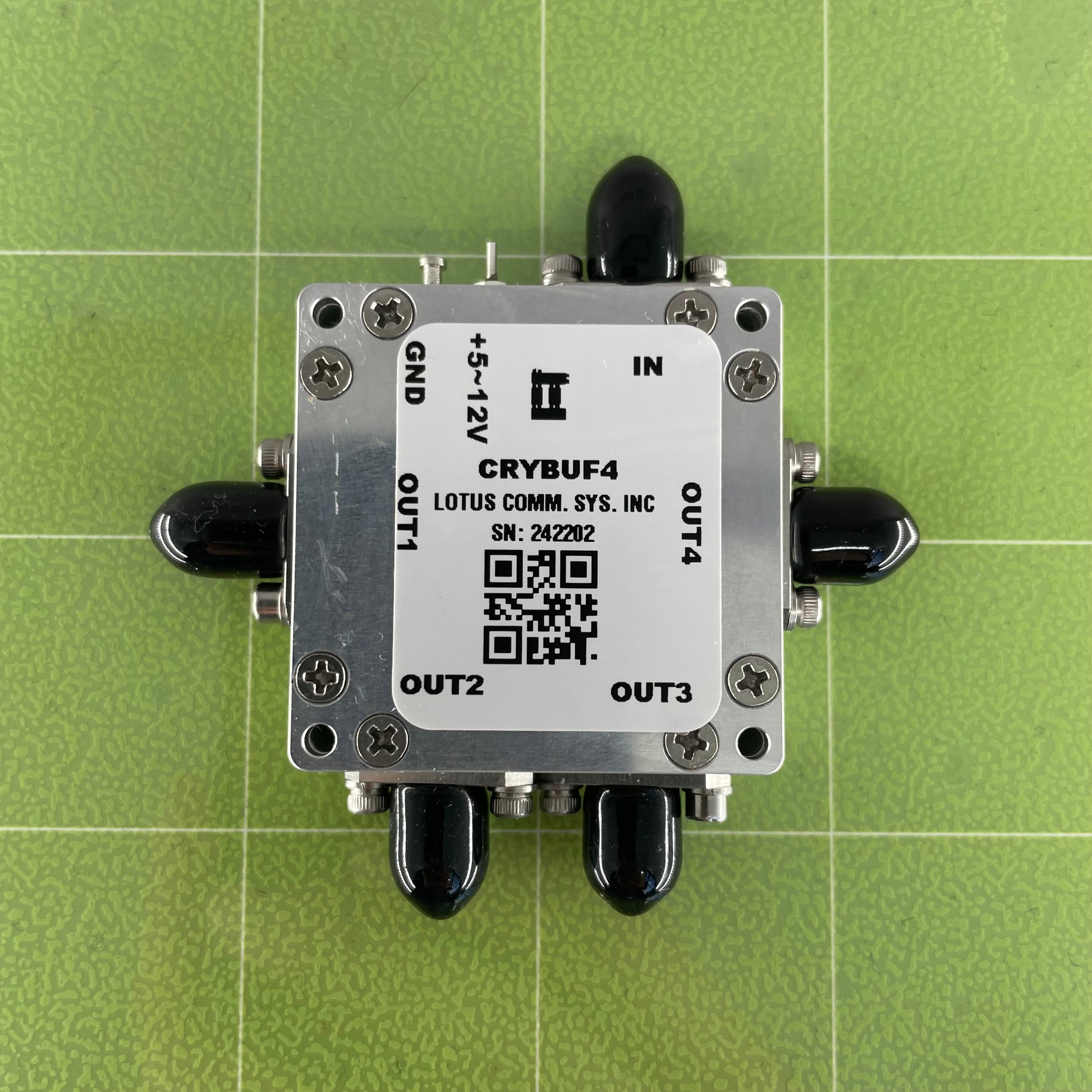

Part Number: CRYBUF4 is a high-performance TCXO/LVCMOS clock fanout. It can provide 4 outputs. If outputs are not used, terminate with 50Ohm load. It has low RMS additive phase jitter (42fs typical). The clock distribution module can operate from +5~12V voltage.
SKU#: AK20-016B.
Proudly Made in USA by Lotus Communication Systems, INC. in Weston, MA.
Features
- One Input, Four Output Fanout
- Supply Voltage: +5~12 V
- Low RMS additive phase Jitter (42fs typ.)
- Frequency Stability: 0.28ppm over operational temperature
- ROHS Compliant
- External Clock Input (1PPS/10MHz or other Clock)
Applications
- Test Instrumentation
- General Purpose Wireless
- Clock Distribution
Resources
CRYBUF4 Datasheet
