Oscillator OCXO (Stratum 3) 10MHz (±30 ppb)
$ 878.00 USD
Part Number: CRYOCXO010MA is a high accuracy SC-Cut OCXO with 10MHz LVCMOS output in a small 1.688”x1.5”x0.725” RF enclosure. The output frequency of OCXO can be adjusted by a potentiometer inside the OCXO enclosure. OCXO is calibrated upon an Atomic Clock (Rubidium/GPS disciplined clock) in the factory. This OCXO is powered by a single +3.3V DC Power Supply. It has exceptional long-term aging of ±500 ppb max. over 10-Year and exceptional close-in phase noise (-140 dBc/Hz Max. @100Hz offset).

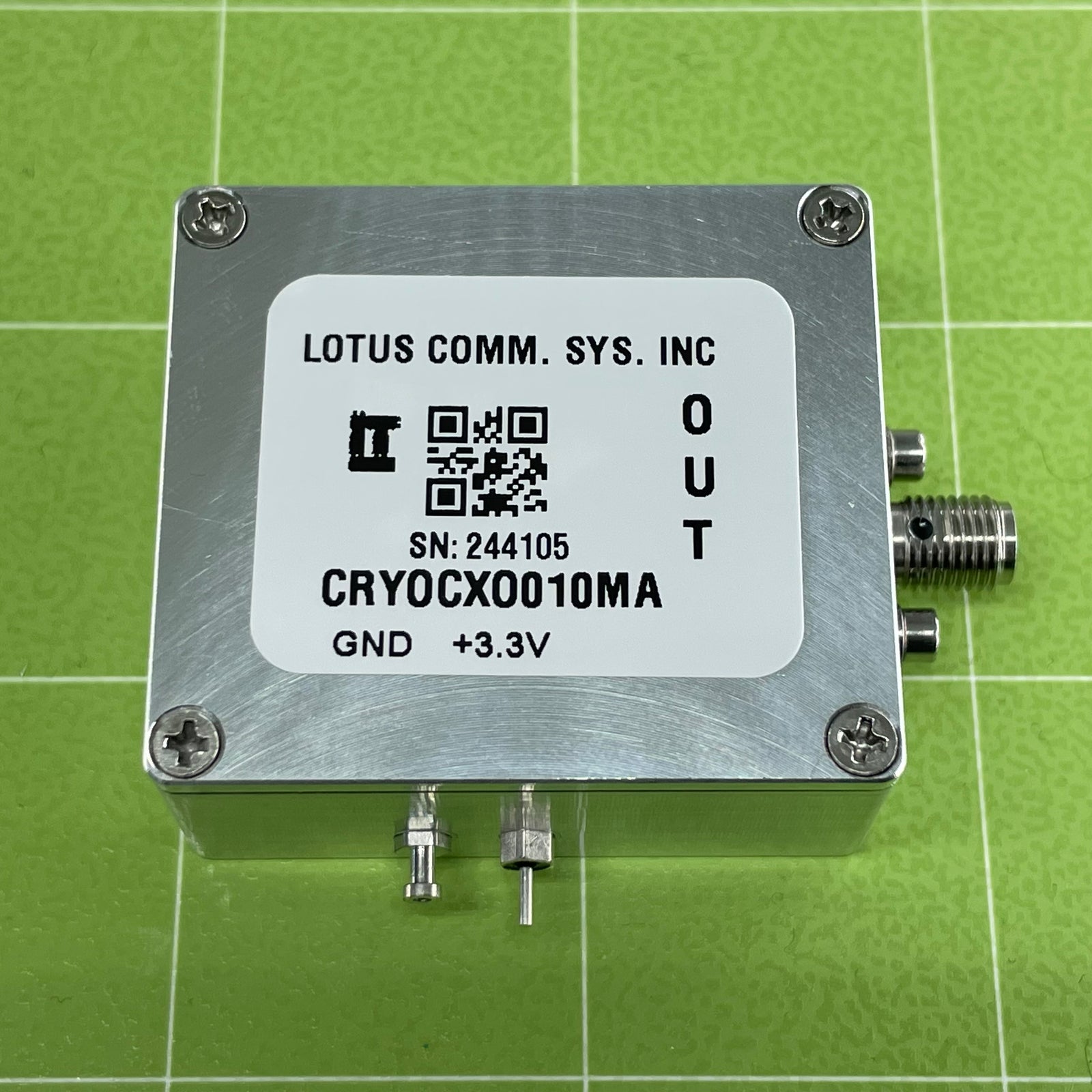

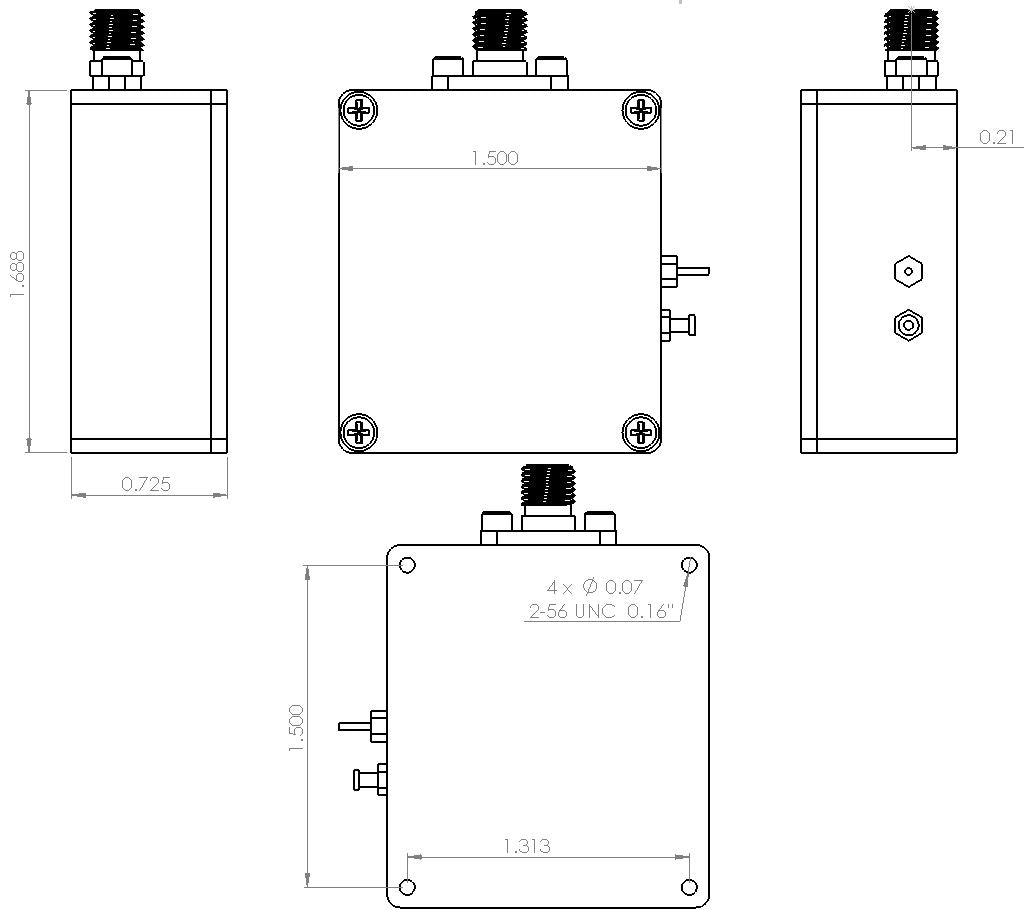

Enclosure is using RF Design Kit 6UHG2H65SMAA1 (only one SMA output) with dimension 1.688"x1.5x0.725". This OCXO Module includes the RF Enclosure as shown in picture. SKU#: QT16-001H.
Proudly Made in USA by Lotus Communication Systems, INC. in Acton, MA.
Features
- Output Frequency 10 MHz
- SC-Cut, High "Q" resonator based design
- LVCMOS Output
- ±30 ppb Stability over -20°C to +70°C
- Exceptional long-term aging of +/-500 ppb max. over 10-year
- Exceptional close-in phase noise (-140 dBc/Hz Max. @100Hz offset)
- Power Supply: +3.3 V
- SMA Female Connector (50 ohm system)
- ROHS Compliant
Applications
- Stratum 3
- Small Cells/Radar Systems
- Instrument Time & Frequency References
- SyncE and IEEE 1588
- WiMax/WLAN
Resources
CRYOCXO10MA Datasheet
