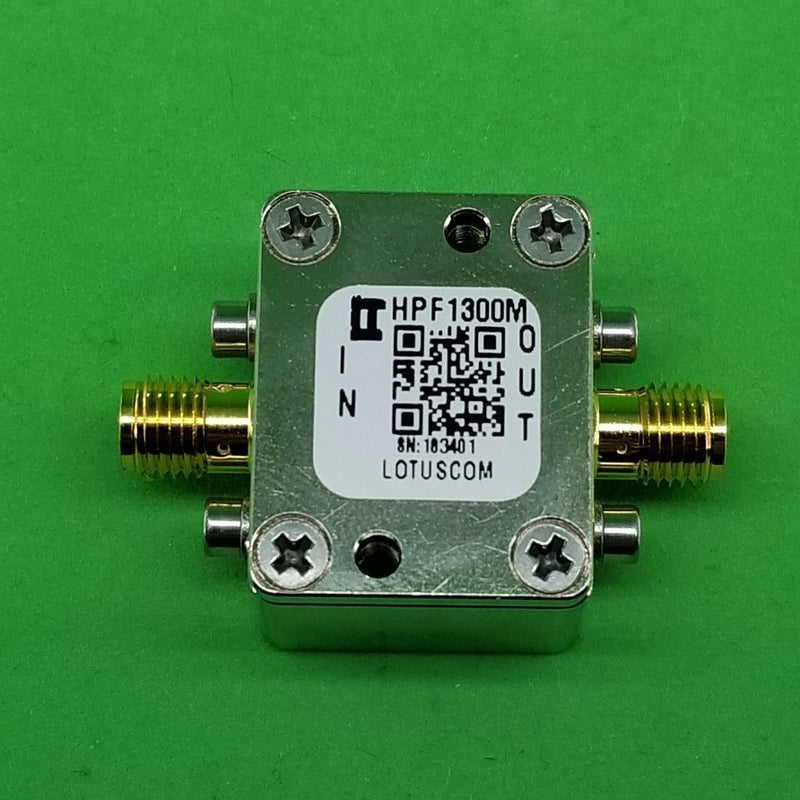

High Pass Filter (LTCC Construction) HPF1300M Pass Band 1400M - 5000MHz
$ 98.00 USD
Part Number: HPF1300M -- High Pass Filter (LTCC Construction) Pass Band 1400M-5000MHz. SKU#: AK28-001R.

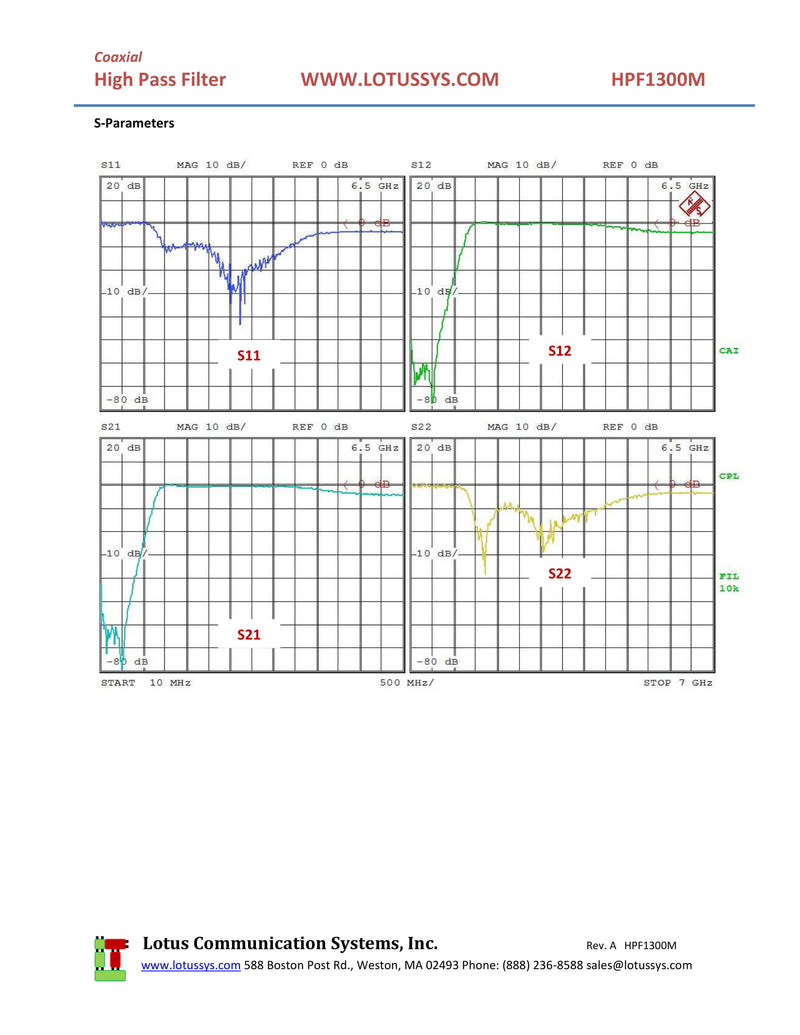

Enclosure uses RF Design Kit with dimension 0.9375"x0.75x0.48". S-Parameter of part measured on VNA (10 MHz to 7 GHz) is shown in third picture.
Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).
Features
- Operational Temperature: -55 ~ 100℃
- Temperature Stable
- 3dB Cut Off Frequency: 1300 MHz
- RF Power Input: 7W max. at 25℃
- Insertion Loss in Pass Band: (1.5dB Max)
- High Quality SMA Female Connector
- High Quality Rogers RO4350 RF PCB
- ROHS Compliant
Applications
- Harmonic Rejection
- Transmitters / Receivers / SDR
- Test Instrumentation

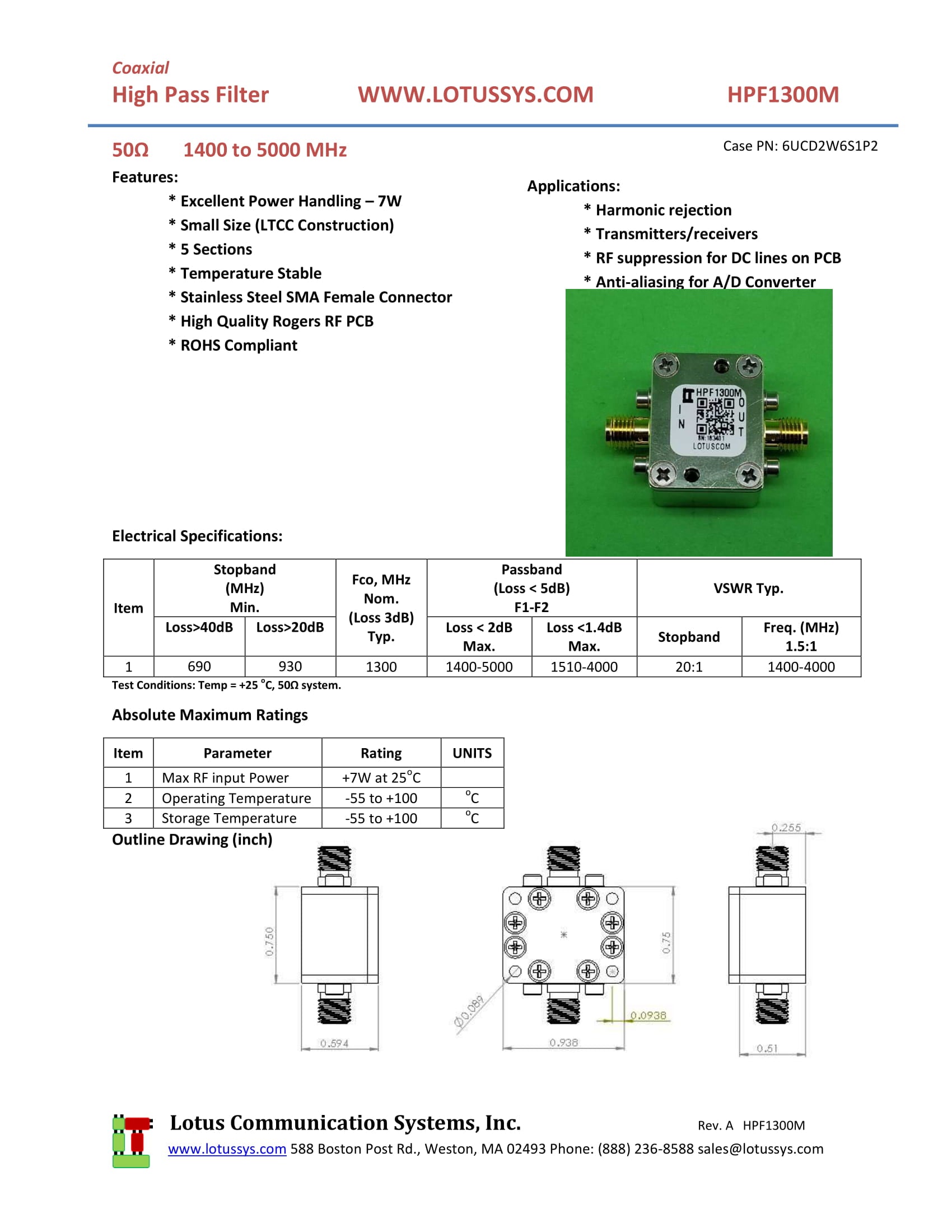

Resources (PDF Datasheet)
HPF1300M Datasheet
