Low Noise Amplifier 2.5dB NF DC~10GHz 15dB Flat Gain 18dBm P1dB SMA
$ 278.00 USD - $ 368.00 USD

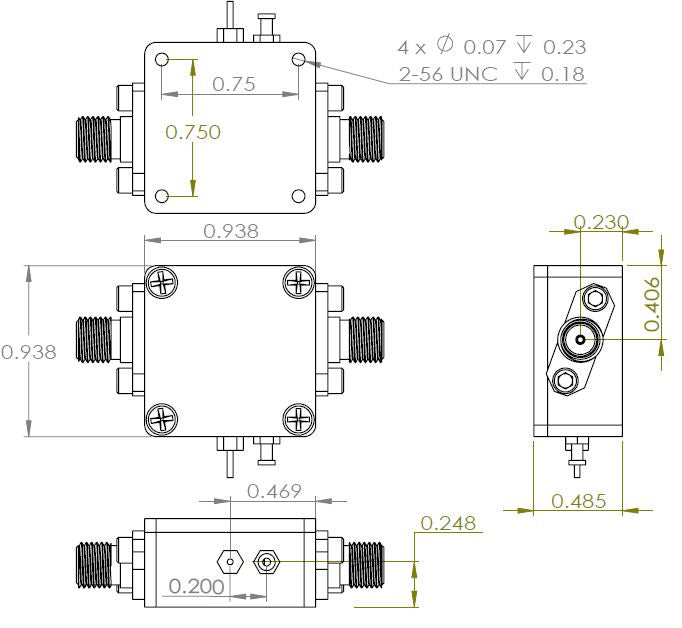

Part Number: LADC10GFR is a flat gain, high-linearity, low noise amplifier covering up to 10GHz. It is in a small 15/16”x15/16”x0.49” shielded RF enclosure. LNA has positive gain slope and provides a +/-1.0 dB flat gain (peak-to-peak) from DC to 10 GHz. At 5 GHz, the amplifier typically provides 15 dB gain, +30 dBm OIP3 at a 72mA bias setting, and 2.5 dB noise figure. The LNA can be biased from a single supply +5.5V~12V. Input & Output ports are DC-coupled.

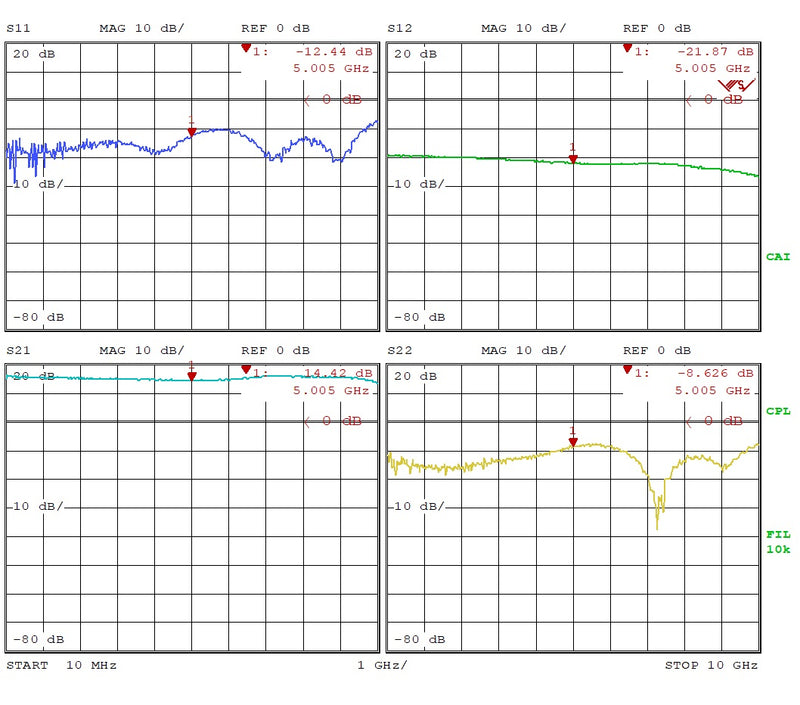

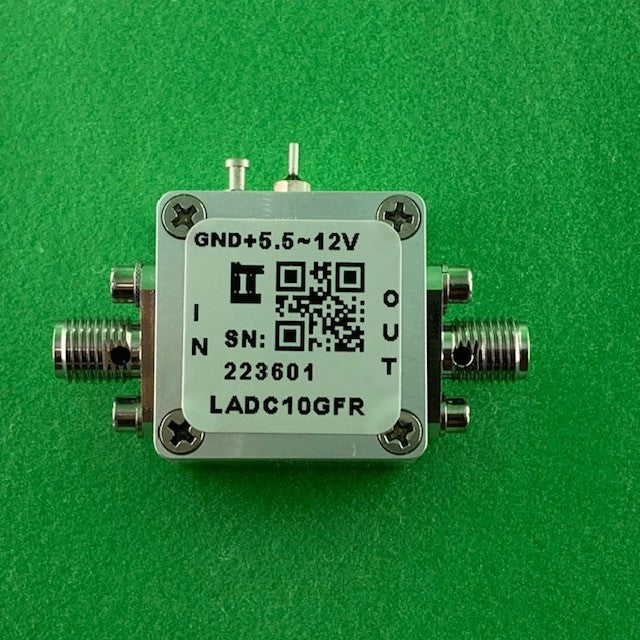

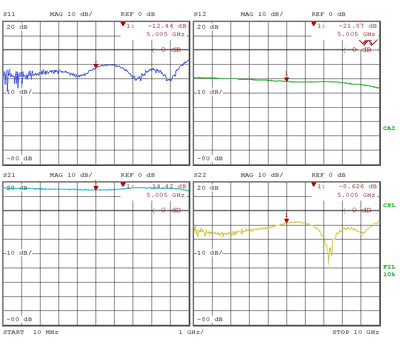

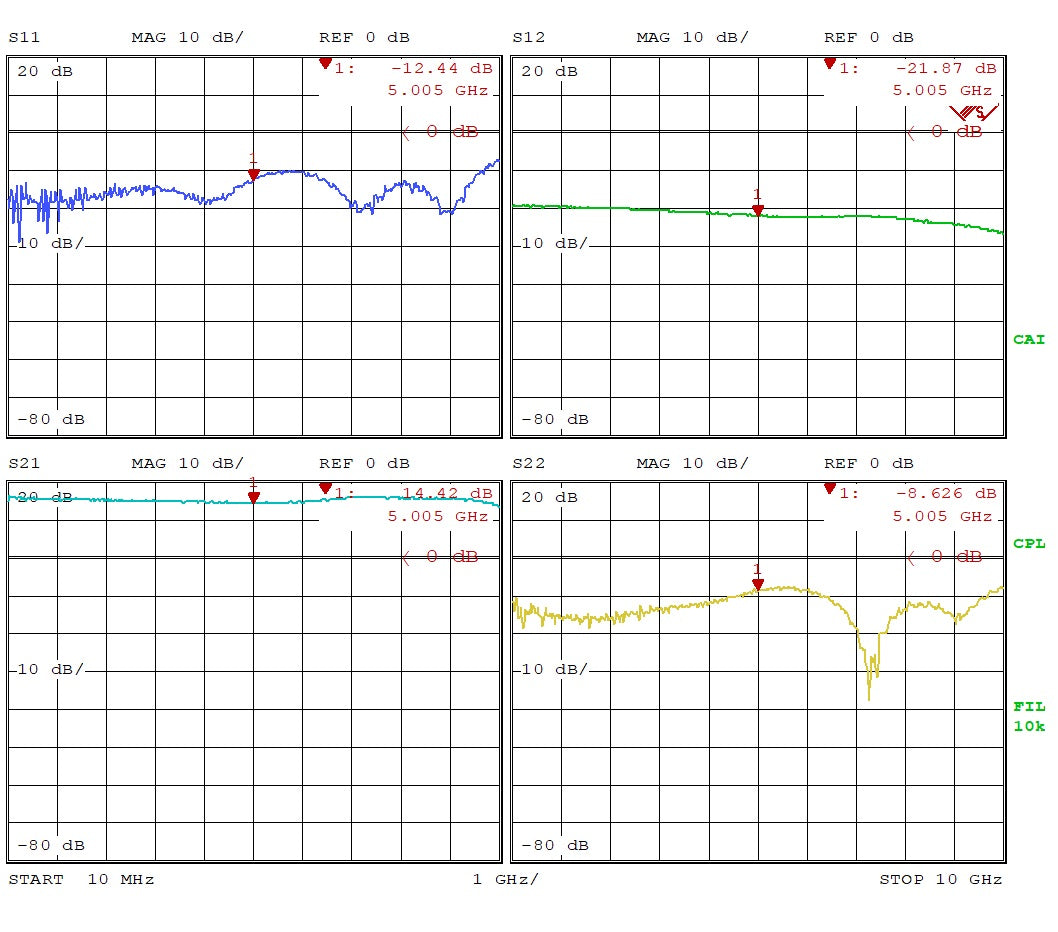

Listed pictures include Product Picture and S Parameter from DC to 10GHz.
Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com). SKU#: AK20-016A.
Features
- Frequency Range: DC to 10 GHz
- Noise Figure: typical 2.5 dB @ 5 GHz
- Gain: 15 dB at 5 GHz
- Flat Gain: +/-1.0dB from DC to 10GHz
- Output P1dB: +18 dBm CW
- Output IP3: +31 dBm
- DC Voltage: +5.5 to +12V
- Operating Current: 72 mA
- Stainless Steel SMA Female Connector
- ROHS Compliant
- EMI Shield (Waterproof) Option Available (PN#: LADC10GFRW)
Applications
- General Purpose Wireless
- Mobile Infrastructure
- LTE/WCDMA/CDMA/GSM
- SDR & Ham Radio
- Test Instrumentation
