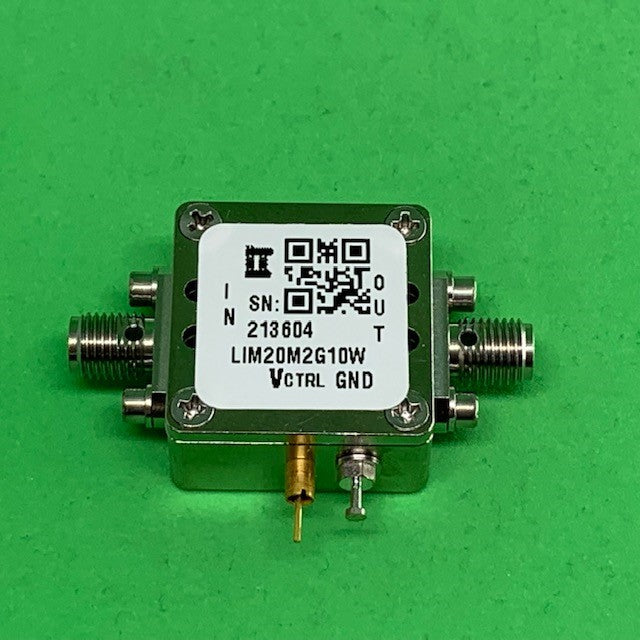

Limiter 20MHz-2GHz 10 Watts
$ 176.00 USD
Part Number: LIM20M2G10W is RF limiter. It is ideal for applications like Cellular, PCS, W-CDMA, ISM, LTE, SDR and Ham Radio.

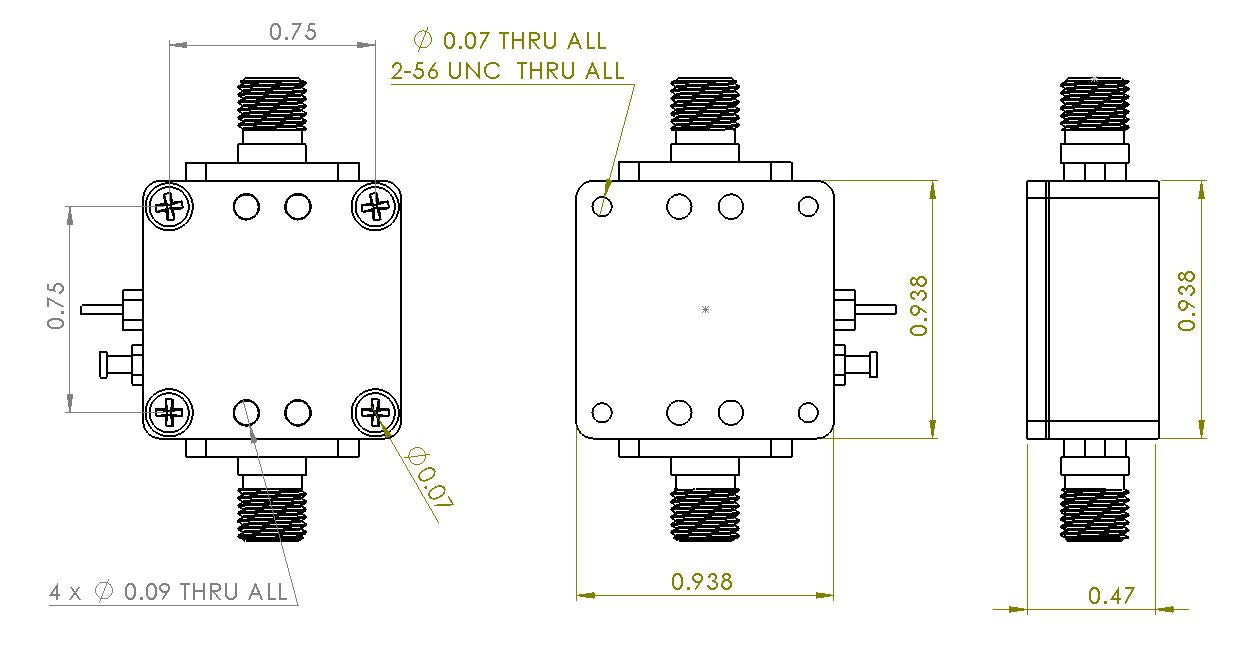

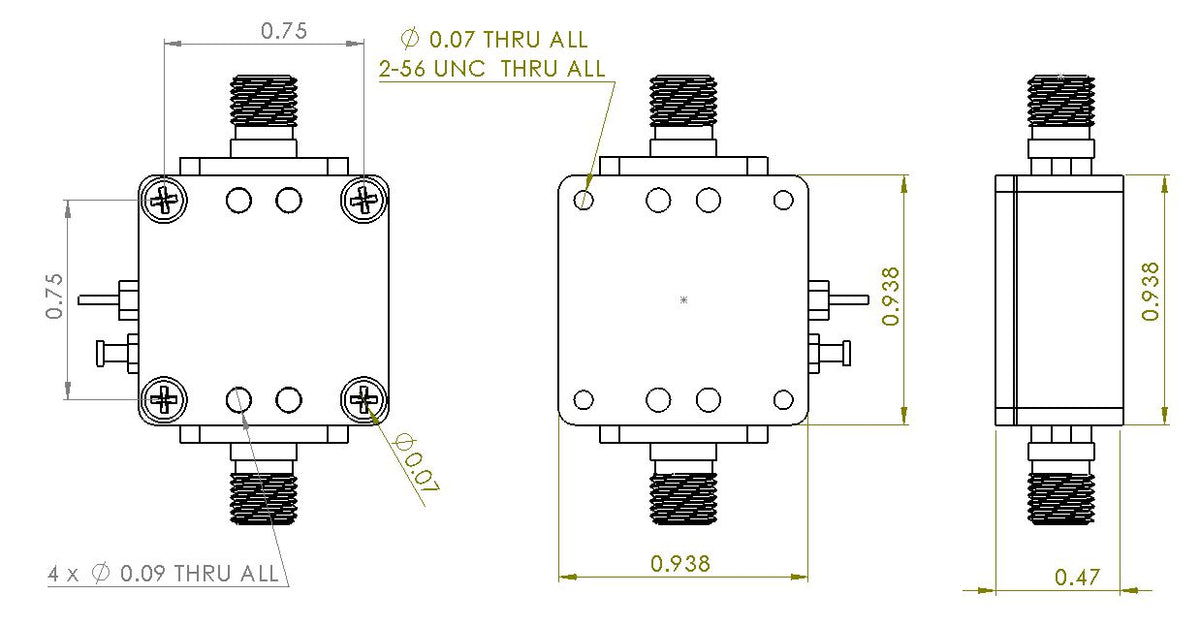

Enclosure is using RF Design Kit 6UDD4W6H41SMAA2 with dimension 15/16"x15/16x0.48". SKU#: AK20-005E.
The limiter protects against ESD and input power surges over a frequency range 20 to 2000 MHz. It is capable of withstanding up to 10 Watts incident power levels. The limiter provides protection for RF/Microwave equipment in hostile environment.
It uses pSemi PE45140 Chip.
Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).
Features
- Frequency Range: 20 MHz to 2GHz
- Low Power Insertion Loss <1 dB
- Peak Power Handling: 50W (Pulsed), 10W CW
- Fast Response/Recovery Time: 1ns
- Stainless Steel SMA Female Connector
- High Quality Rogers RO4350 RF PCB
- ROHS Compliant
Applications
- Stabilize RF outputs
- Reduce amplitude variations
- Protect LNA from ESD/power damage
- General Purpose Wireless
Resources (PDF Datasheet)
LIM20M2G10W Datasheet
