  • Limiter 30 - 6000 MHz (+12 to 32 dBm) 2 Watts

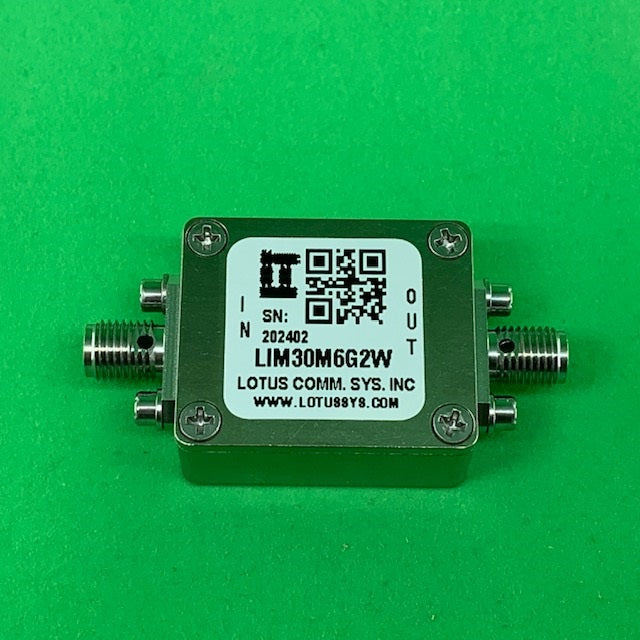

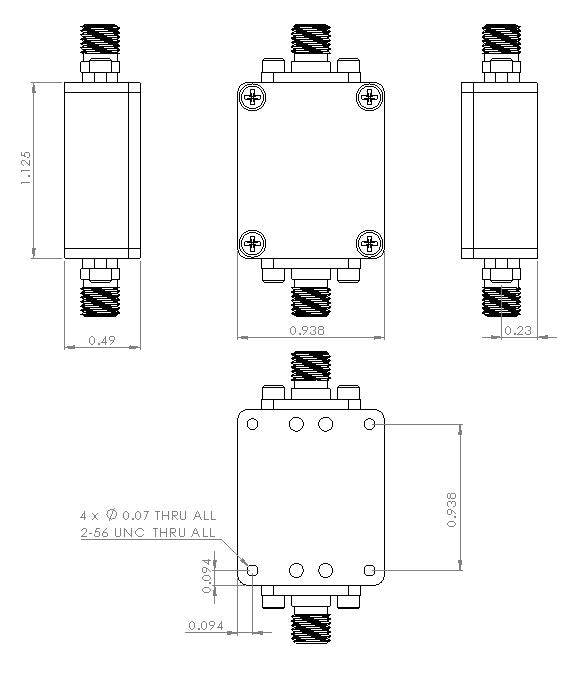

    PN#: LIM30M6G2W is a RF limiter in a small 1-1/8”x15/16”x0.48” shielded RF enclosure (PN: 6UED2W6H41SMAP2). The limiter protects against ESD and input power surges over a frequency range 30 to 6000 MHz. The limiter provides protection for LNA in hostile environment. SKU#: AK20-005A.

    Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).

    Features

    • Frequency Range: 30 MHz to 6000 MHz
    • Low Insertion Loss: 0.3 dB typ.
    • Fast recovery time, 10nsec typ.
    • Excellent VSWR 1.05:1 typ.
    • Low output power: 11.5 dBm typ.
    • Maximum RF Input: 2 Watts
    • Stainless Steel SMA Female Connector
    • High Quality Rogers RO4350 RF PCB (very low loss and high thermal performance)
    • ROHS Compliant

    Applications

    • Stabilize RF outputs
    • Reduce amplitude variations
    • Protect LNA from ESD/power damage
    • General Purpose Wireless

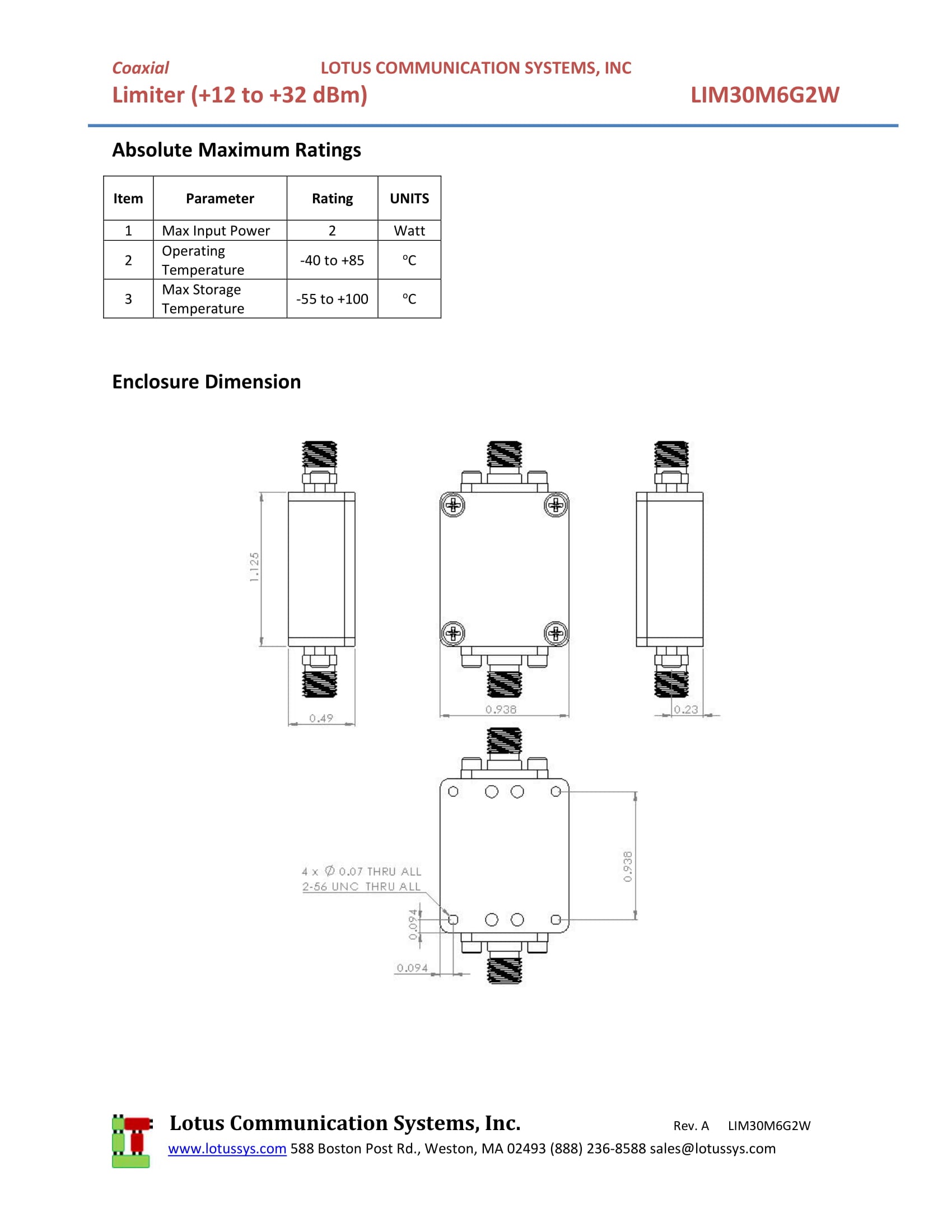

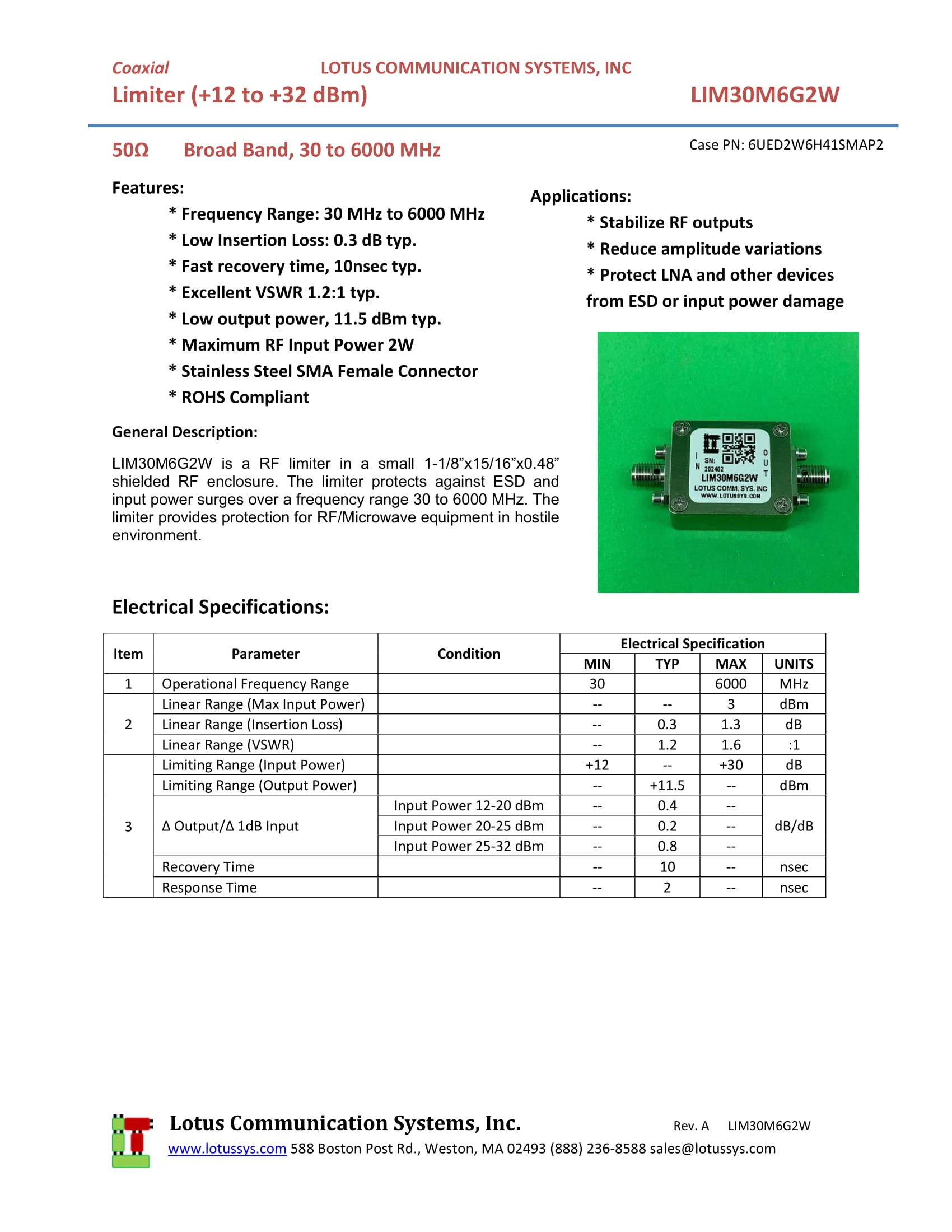

    Resources (PDF Datasheet)

    http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png LIM30M6G2W Datasheet
