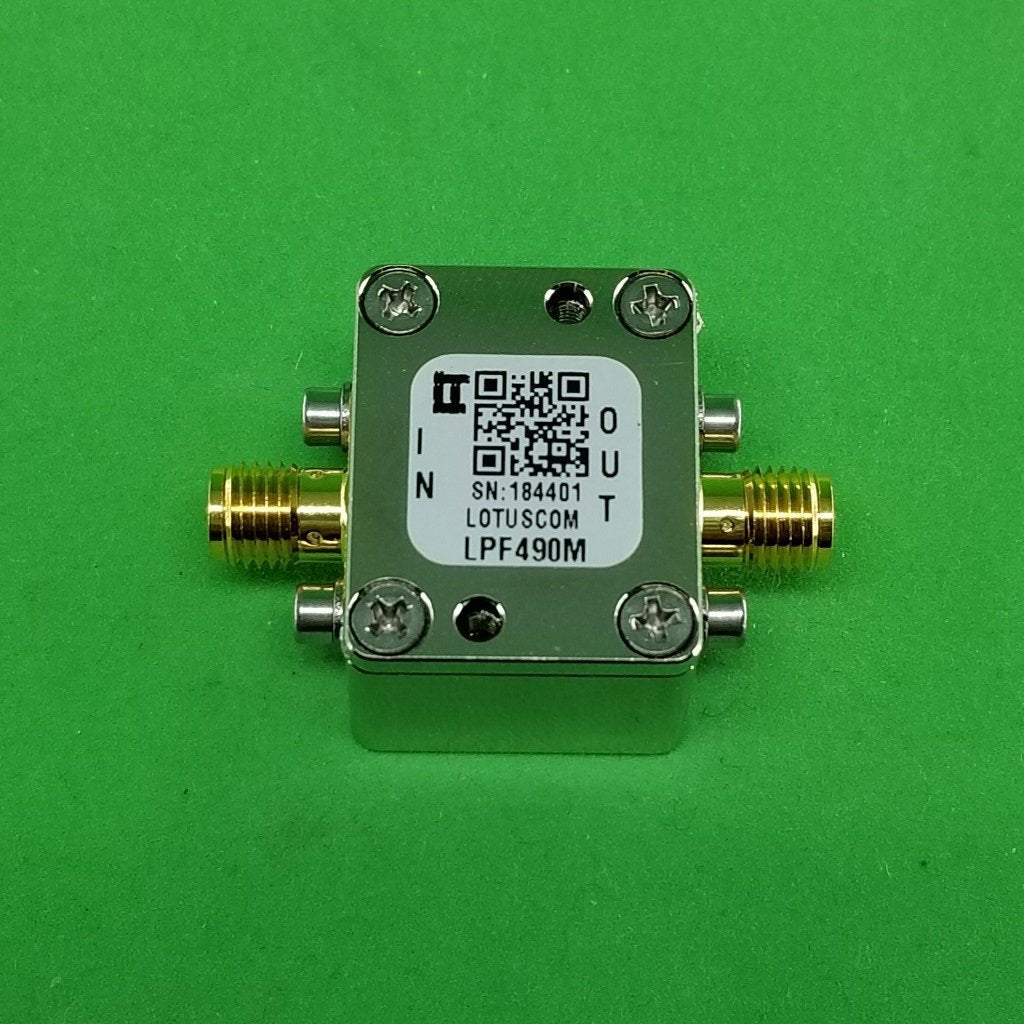

Low Pass Filter LPF490M (LTCC Construction) Pass Band DC-490 MHz
$ 66.00 USD
LPF490M is a low pass filter with pass band from DC to 490 MHz. SKU#: AK28_001Y.
Features
- Operational Temperature: -55 ~ 100C
- Temperature Stable
- Cut Off Frequency: 490 MHz
- RF Power Input: 9W max. at 25C, derate linearly to 0.25W at 100C
- Insertion Loss in Pass Band: (1.5dB Max)
- High Quality RF Rogers RO4350 PCB
- ROHS Compliant
Applications
- Harmonic Rejection
- Transmitters / Receivers / SDR
- Test Instrumentation
Resources
LPF490M Datasheet
