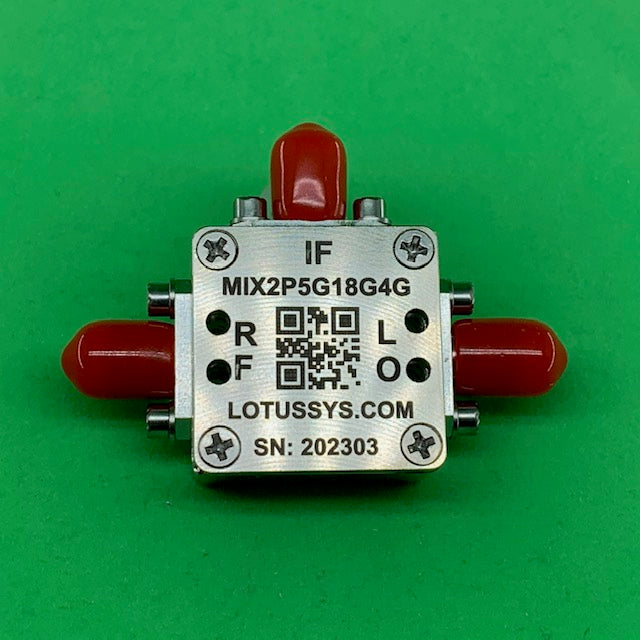

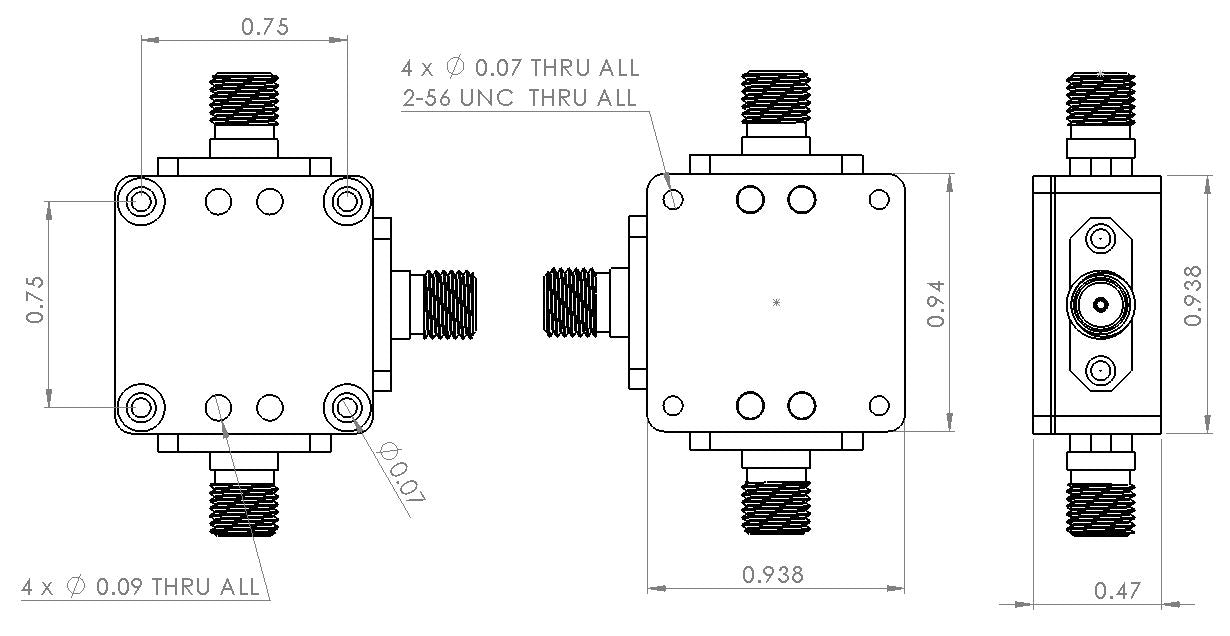

  • Passive Frequency Mixer (MIX2P25G18G4G) 2.25G - 18GHz RF and DC - 4G IF

    PN#: MIX2P25G18G4G is a passive double balanced mixer that can be used as a downconverter with DC to 4GHz at the IF Frequency port and 2.25 GHz to 18 GHz at RF port.  It provides excellent LO to RF, LO to IF and RF to IF isolation.  The mixer operates with LO drive levels from 9 dBm to 17 dBm. SKU#: AK20-005D.

    Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).

    7 items left

    Features

    • Frequency Range: 2.25 to 18 GHz
    • High Input IP3: 20 dBm typical
    • LO to RF Isolation: 25 dB typical
    • LO to IF Isolation: 20 dB typical
    • RF to IF Isolation: 15 dB typical
    • IF frequency range: DC to 4 GHz
    • High Quality Rogers RO4350 RF PCB
    • Use ADI HMC1048ALC3B Part
    • ROHS Compliant

    Applications

    • Test Instrumentation
    • Wideband A/D System
    • General Purpose Wireless
    • Radar & VSAT
    • SDR & Ham Radio
    • Microwave Radio

    Resources (PDF Datasheet)

    http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png MIX2P25G18G4G Datasheet
