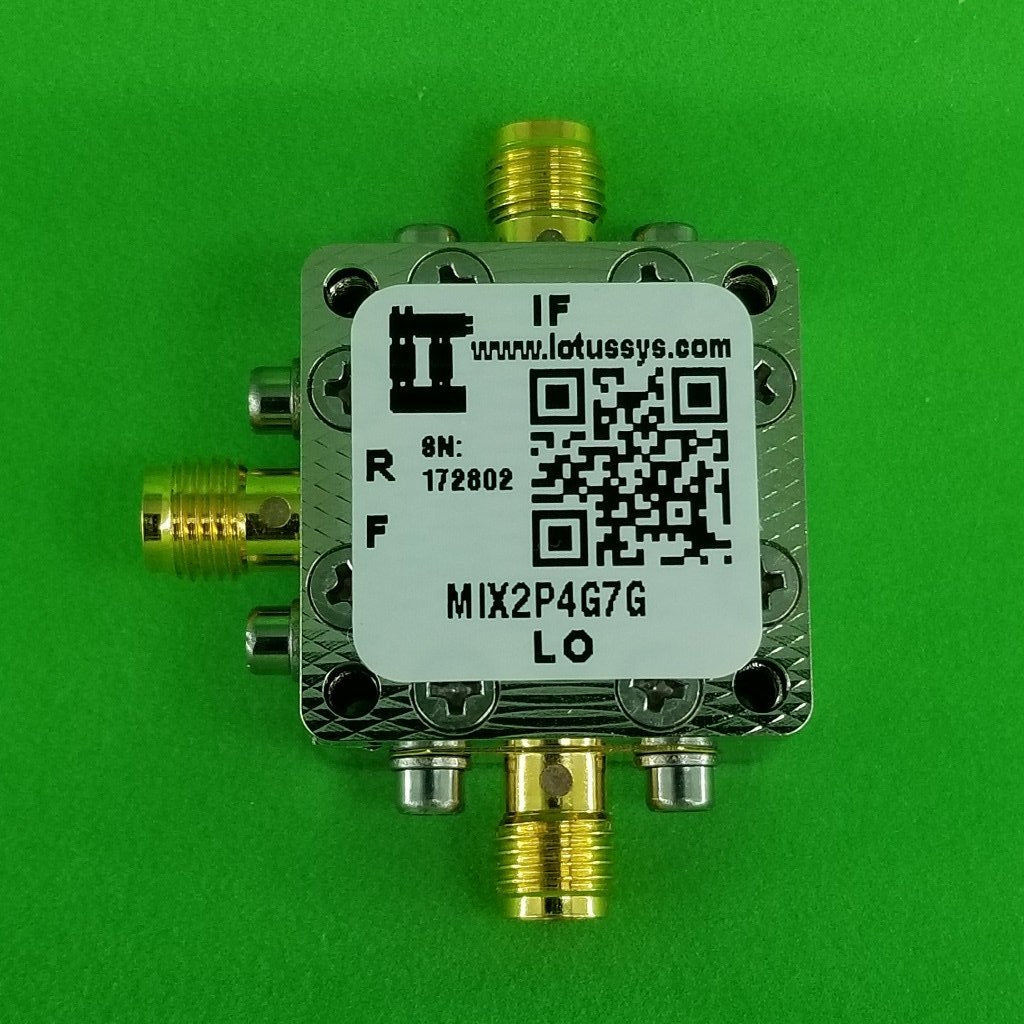

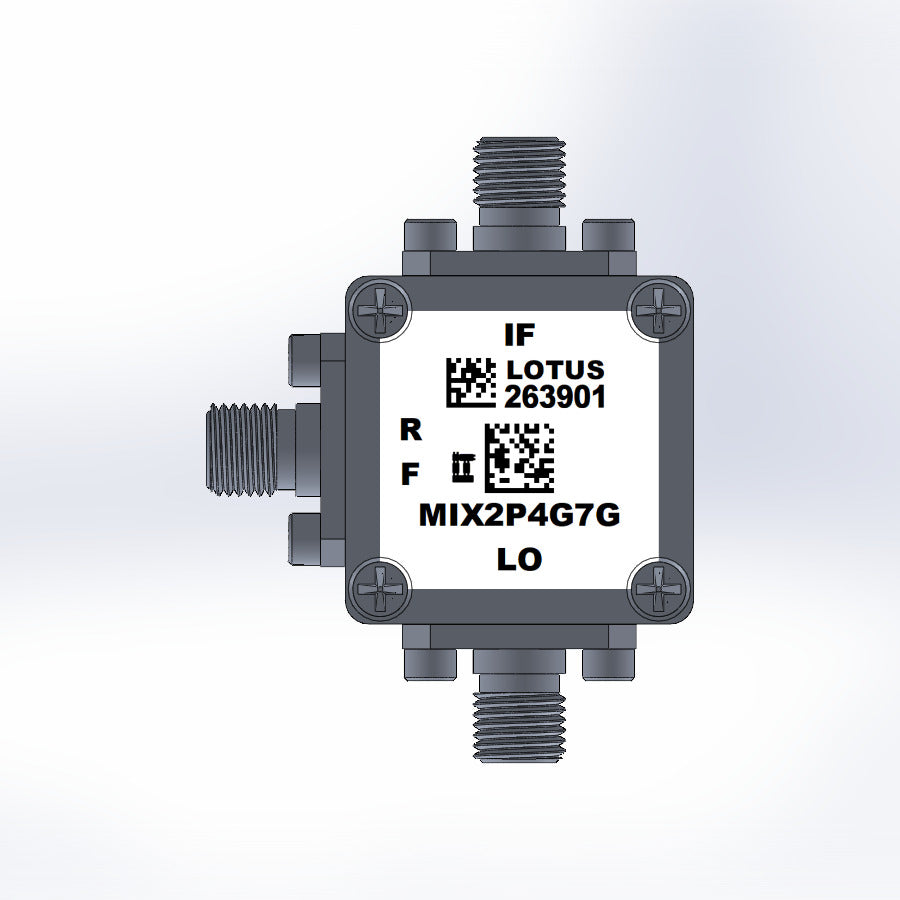

Passive Frequency Mixer (MIX2P4G7G) 2.4G - 7GHz RF and DC - 3G IF
$ 98.00 USD

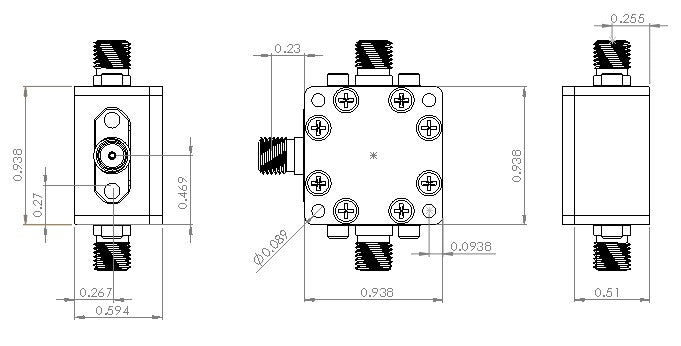

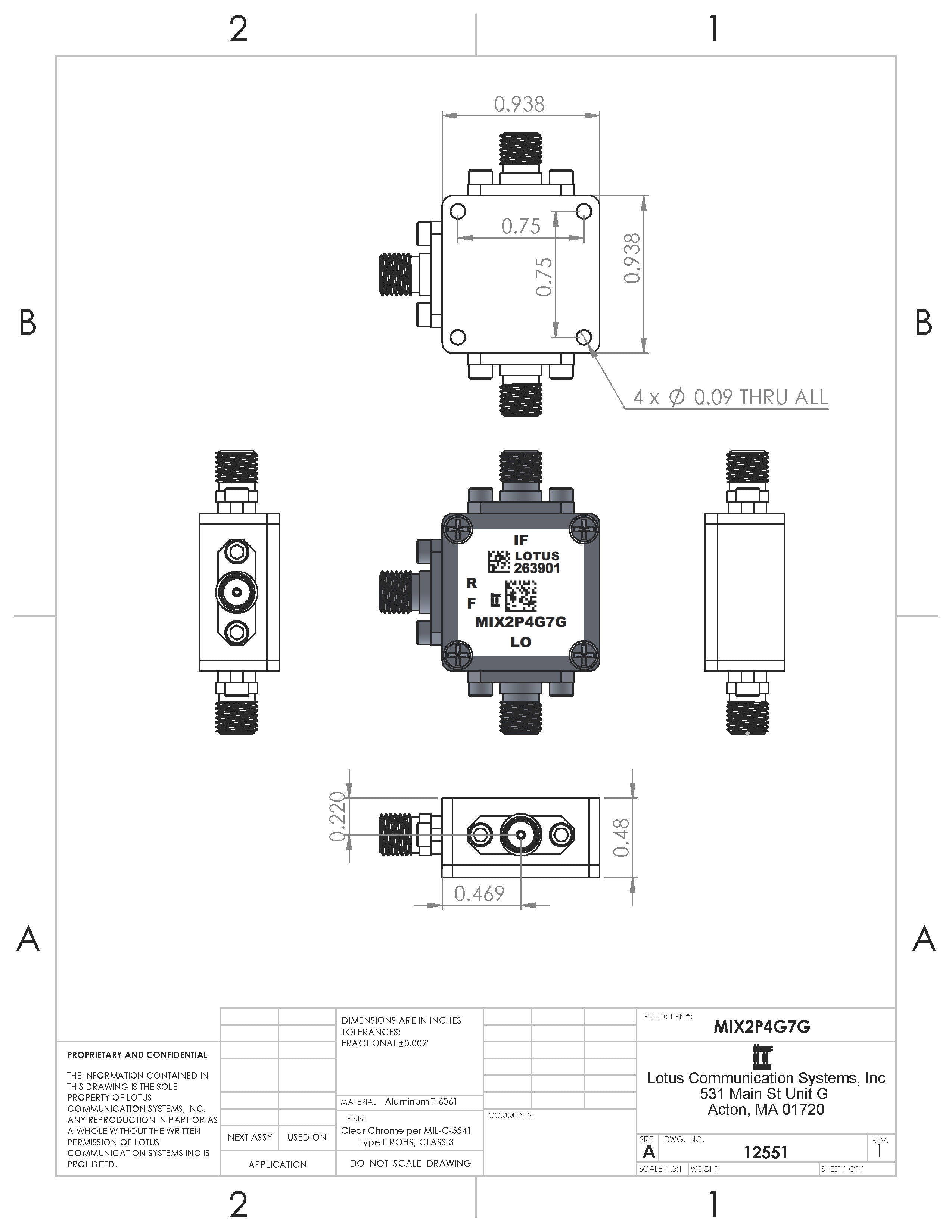

Part Number: MIX2P4G7G is a Level 4 (LO Power +4 dBm) passive wide band frequency mixer (2400 to 7000 MHz) in a small 15/16”x15/16”x0.59” shielded RF enclosure (PN: 6UDD2W6S1P3). It has low insertion loss (6.2dB typ.) and excellent IF BW (DC to 3GHz). It can be used for up and down converter. SKU#: AK20-001F.
Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).
Features
- Frequency Range: 2400 MHz to 7000 MHz
- Low insertion loos, 6.2 dB typ.
- LTCC double balanced mixer
- Usable as up and down converter
- ROHS Compliant
- Operating Temp. (-40C to 85C)
- Storage Temp. (-55C to 100C)
- Maximum RF Power 50mW
- Stainless Steel SMA Female Connector
- High Quality Rogers RO4350 RF PCB
- ROHS Compliant
Applications
- Satellite up/down converter
- Mobile Infrastructure
- VSAT/ISM
- General Purpose Wireless
- SDR & Ham Radio
- Test Instrumentation
Resources (PDF Datasheet)
MIX2P4G7G Datasheet
