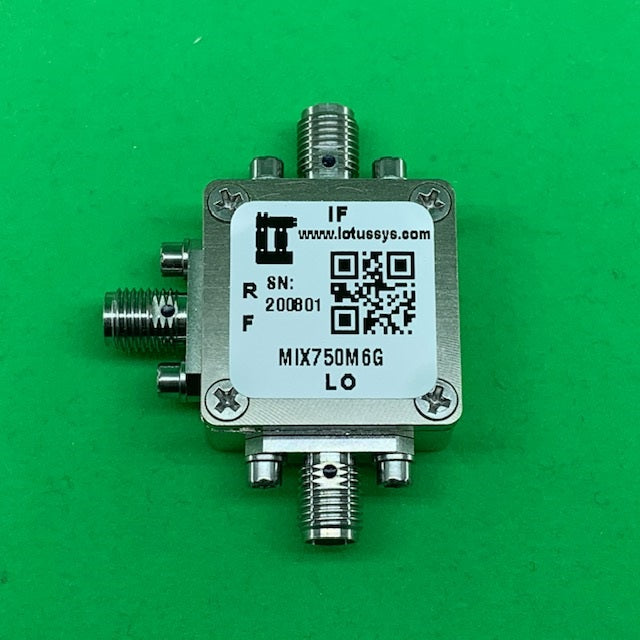

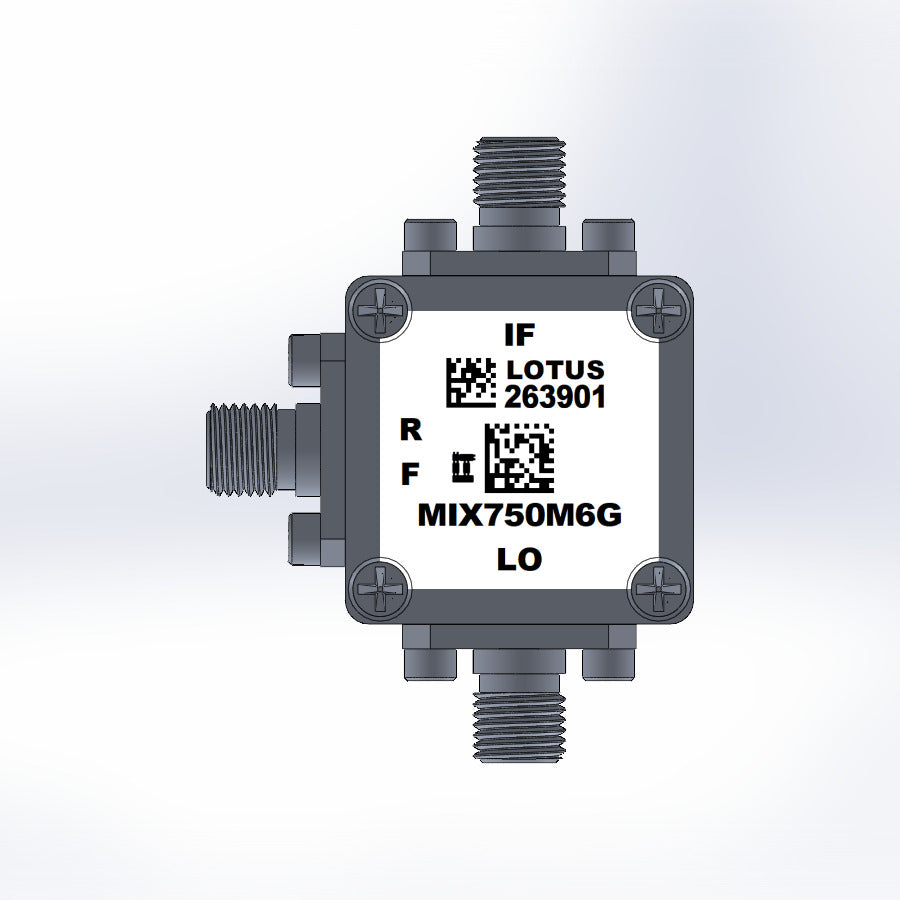

Passive Frequency Mixer (MIX750M6G) 750M - 6GHz RF and DC - 1.5G IF
$ 98.00 USD

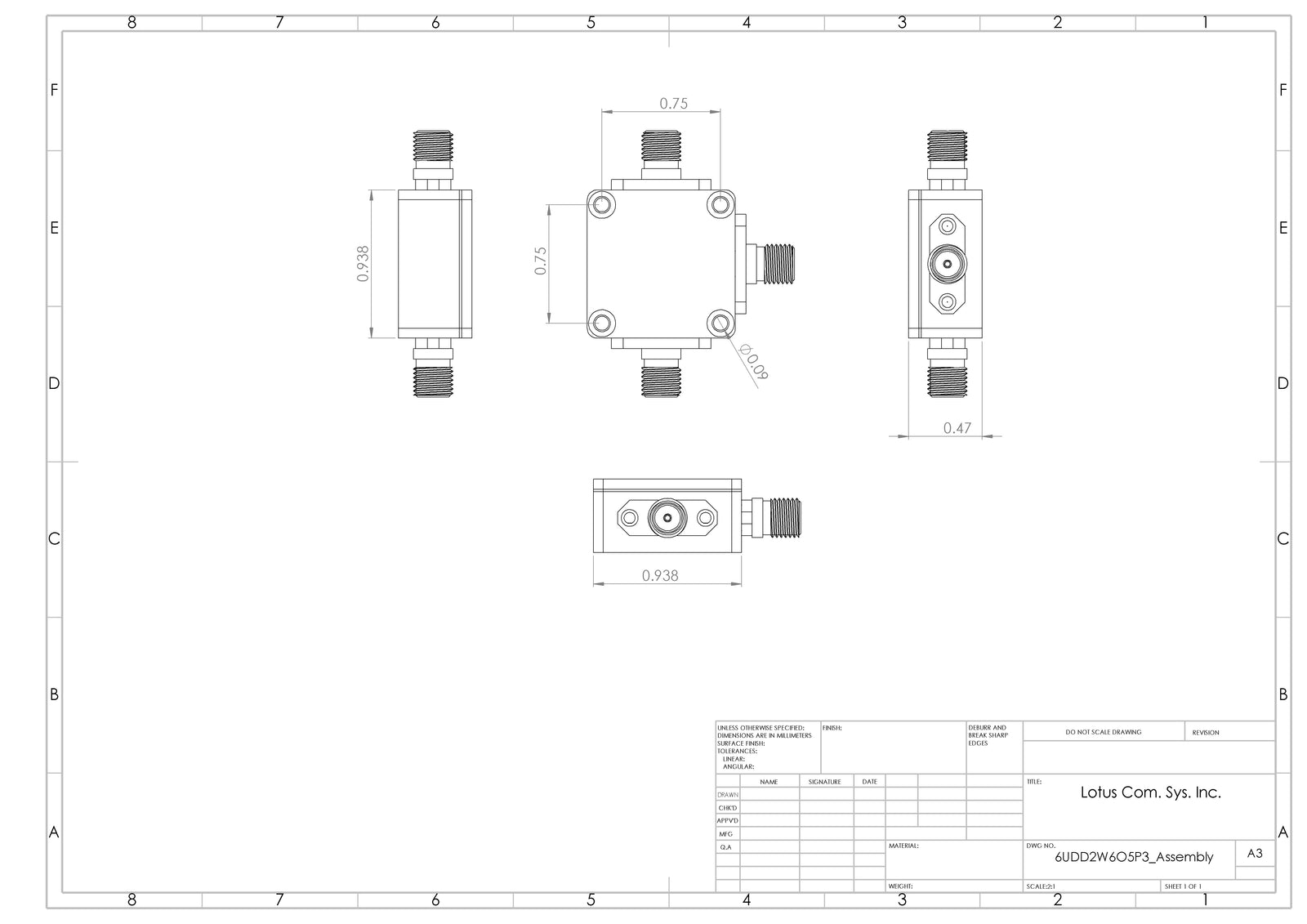

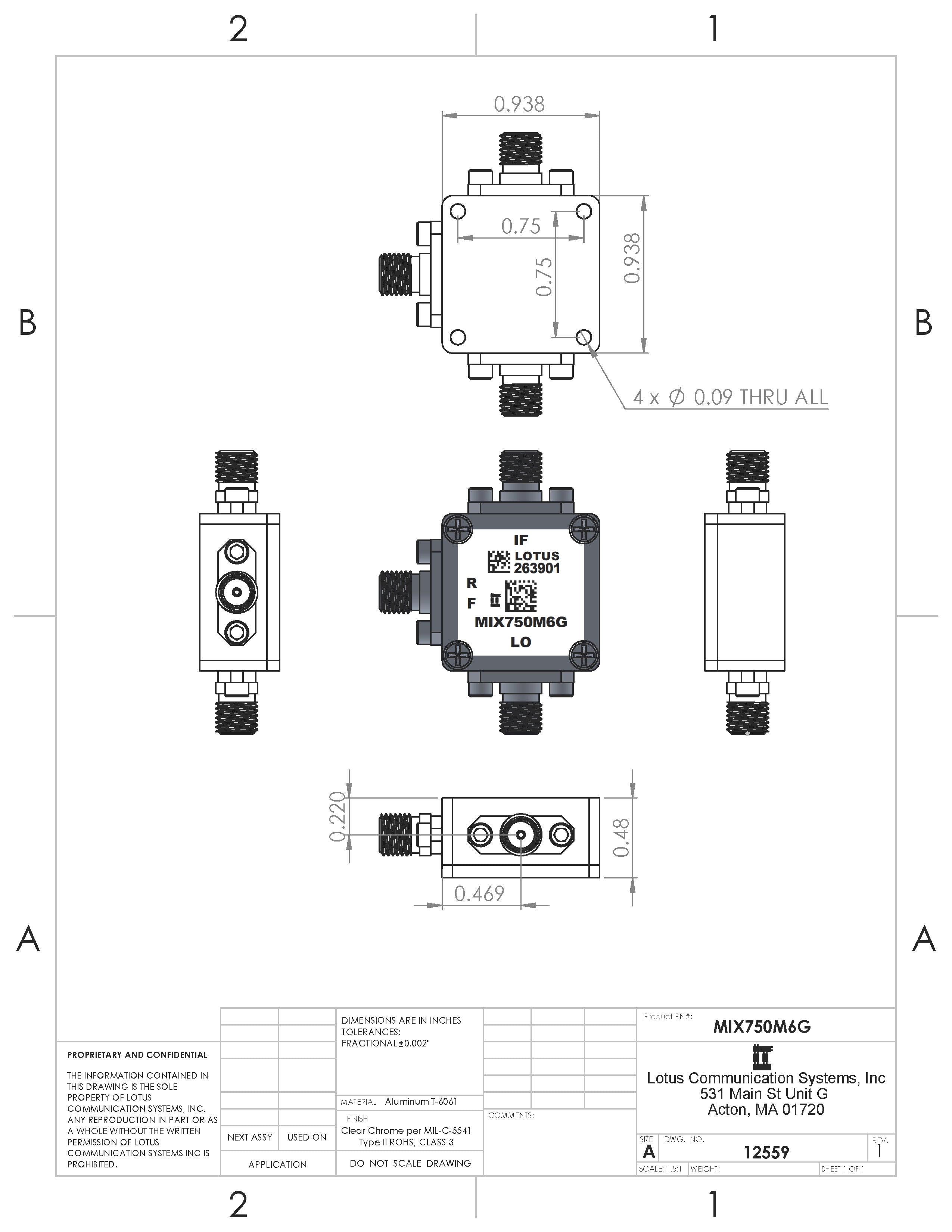

MIX750M6G is a Level 10 (LO Power +10 dBm) passive wide band frequency mixer (750 to 6000 MHz) in a small 15/16”x15/16”x0.47” shielded RF enclosure (PN: 6UDD2W6O5P3). It has low insertion loss (6.2dB typ.) and excellent IF BW (DC to 1.5GHz). It can be used for up and down converter. SKU#: AK20-001F.
Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).
Features
- Frequency Range: 750 MHz to 6000 MHz
- Low insertion loos, 6.2 dB typ.
- LTCC double balanced mixer
- Usable as up and down converter
- Operating Temp. (-40 to 85C)
- Storage Temp. (-55 to 100C)
- Maximum RF Power 50mW
- Stainless Steel SMA Female Connector
- High Quality Rogers RO4350 RF PCB
- ROHS Compliant
Applications
- Satellite up/down converter
- Mobile Infrastructure
- VSAT/ISM
- General Purpose Wireless
- SDR & Ham Radio
- Test Instrumentation
Resources (PDF Datasheet)
MIX750M6G Datasheet
